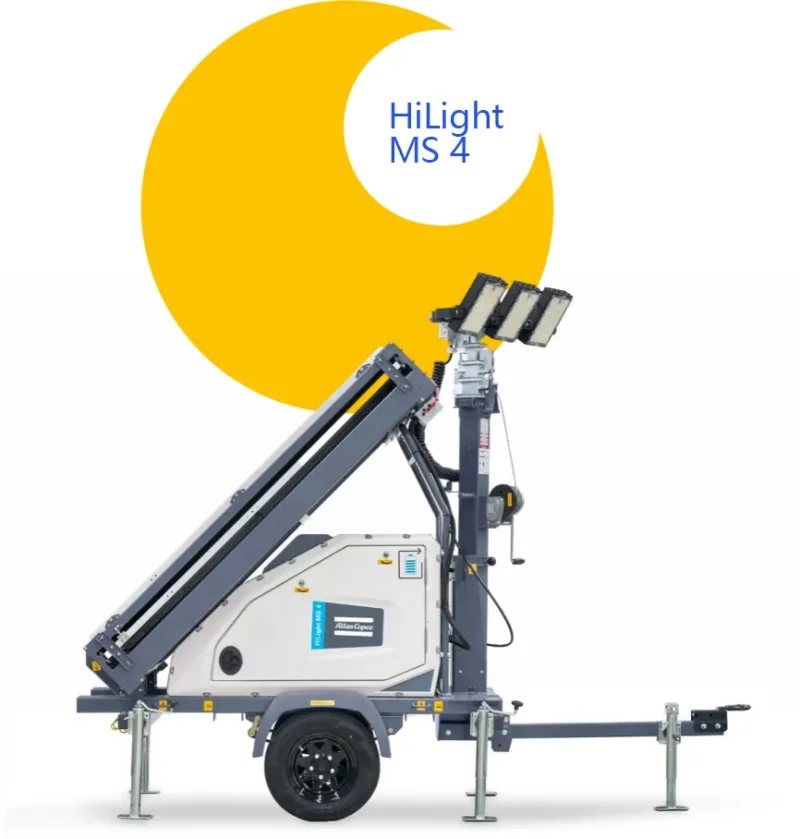

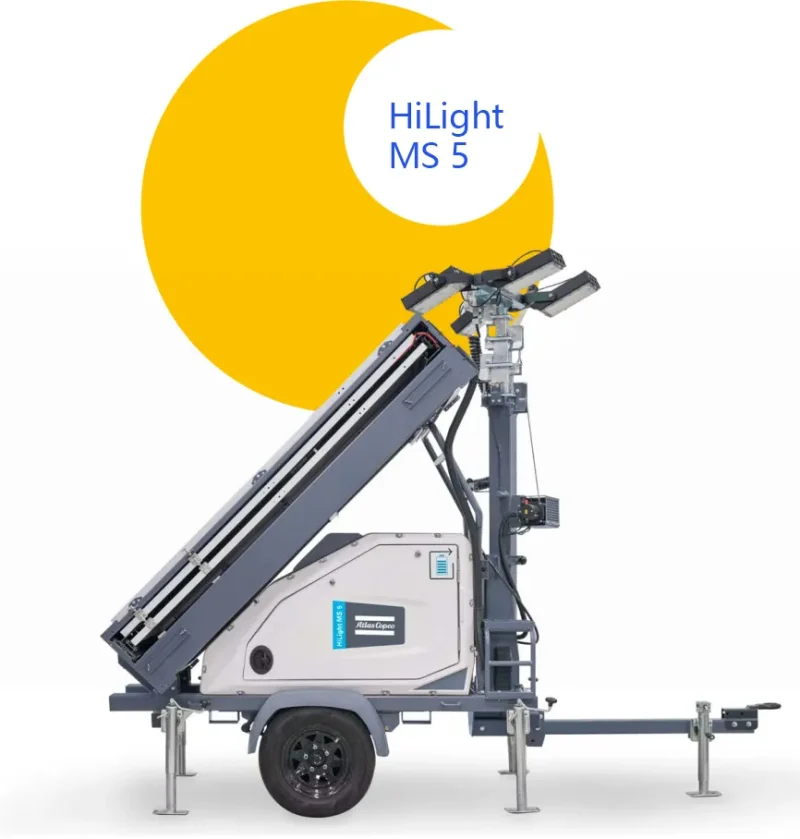

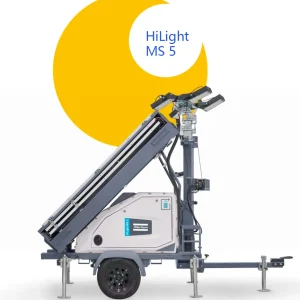

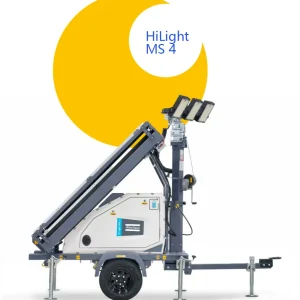

The lighting towers MS 4 and MS 5 are the second generation of solar-powered HiLight series of Atlas Copco light towers. They deliver efficient, high performance light, giving workers good visibility, while allowing sites to increase their level of sustainable operations by complying with the strictest emission and noise regulations.The MS 4 and MS 5 use solar radiation as an energy source, meeting noise and emission norms in construction projects, mining, oil and gas, and event sites.
Contents
- 1 Atlas Copco Lighting Towers Light coverage
- 2 Atlas Copco Lighting Towers Connectivity
- 3 Easy setup and transportability
- 4 Reliability and recharging capacity
- 5 Autonomy efficiency
- 6 CO2 footprint reduction
- 7 SMD light technology
- 8 HiLight MS 4 and MS 5 Applications
- 9 HiLight MS 4 and MS 5 Technical Data
- 9.1 HiLight MS 4 & MS 5 Lighting Towers FAQ
- 9.1.1 1. What are the main differences between HiLight MS 4 and MS 5?
- 9.1.2 2. What are the typical applications for these lighting towers?
- 9.1.3 3. What type of bulbs do these towers use?
- 9.1.4 4. Are these lighting towers environmentally friendly?
- 9.1.5 5. What are the power supply options for these lighting towers?
- 9.1.6 6. What is the maximum lighting duration of the HiLight MS 4 and MS 5?
- 9.1.7 7. Are these lighting towers easy to install and transport?
- 9.1.8 8. Can these lighting towers operate in extreme weather conditions?
- 9.1.9 9. Do these lighting towers support remote control and automatic start/stop functions?
- 9.1.10 10. Are the maintenance costs high for these lighting towers?
- 9.1 HiLight MS 4 & MS 5 Lighting Towers FAQ

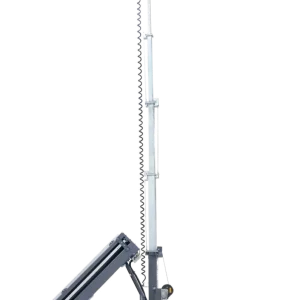

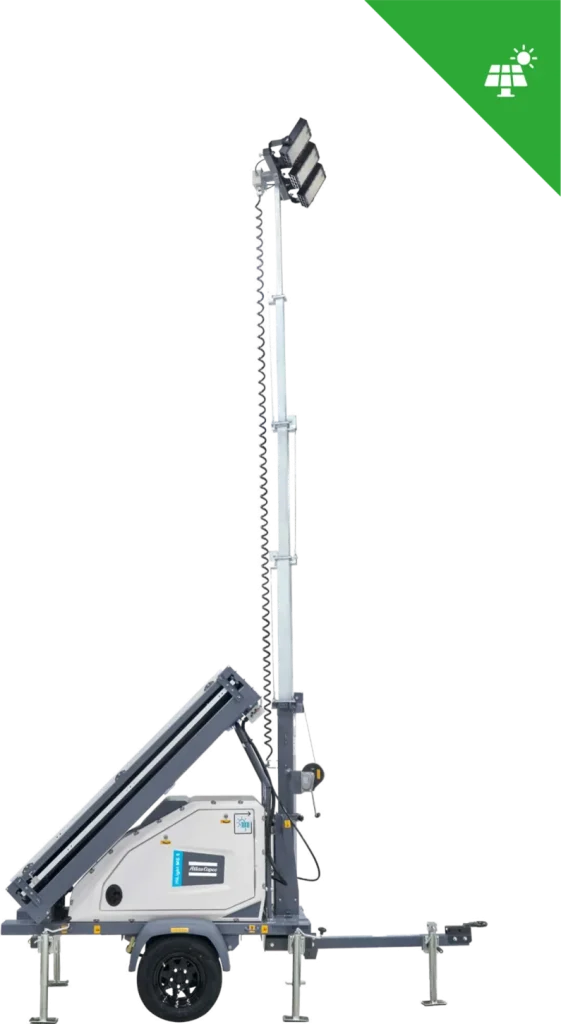

Atlas Copco Lighting Towers Light coverage
The Atlas Copco lighting towers HiLight MS 4 delivers 3.846 m² of light coverage while the HiLight MS 5 offers 5.278 m² of light coverage @20 lux avg.
Atlas Copco Lighting Towers Connectivity
The MS 4 and MS 5 solar light towers feature an external control panel. With a dedicated control cubicle, there is easy access to the user friendly ECO Light controller and ECO mode to ensure higher performance and efficiency.
Easy setup and transportability
Both the solar light towers are portable and easy to transport and their solar panels are easy to set up. These HiLights are smaller in size due to the unique solar panel design.
Reliability and recharging capacity
As the solar panels are placed in parallel, the light towers take a lower time to recharge with upto 2h 36mins recharging time with full sunshine. Batteries can be recharged with an external power source in just 5h, as optional.
Autonomy efficiency
The solar light tower provides autonomous operation, with upto 85h of autonomy with dimming function which increases efficiency. The efficient lithium batteries and solar panels deliver minimum 11h of autonomy while recharging time is shortened.
CO2 footprint reduction
Reliable light source independent from fuel provisioning with no fuel consumption.
SMD light technology
The new Surface Mounted Device lights provide brighter coverage due to the unique SMD high lumen LEDs mounted on the new solar light towers. The advanced SMD lights display high lumen LED light at 87.750 lm for the MS 4 and 117.000 lm for the MS 5.

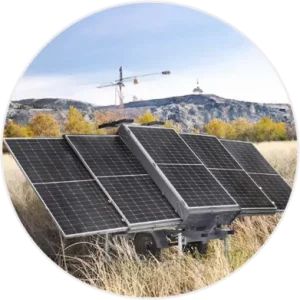

HiLight MS 4 and MS 5 Applications
This light tower offers a robust alternative for end users and rental companies operating in construction projects, mining, oil and gas and event sites. Since the unit works at temperatures from -20°C to +50°C and can operate reliably at high altitude without derating, it is also ideal for remote work sites.
The HiLight range offers you a wide variety of choices, so you can choose the right lighting tower for your application. We supply temporary lighting to a multiple range of industries with a flexible and dynamic approach to operations, addressing efficiency and safety on site. You can also be assured of the robust build quality and compact size for which Atlas Copco is globally recognized.
Lighting for Optimal Site Coverage
From LED technology to the new SMD lights, we are leading the way on innovation in lighting solutions. The SMD lenses in our LED light towers are engineered to increase light coverage by 20% compared to traditional COB LED type.
The innovative and fully directional lens design means we maximize the light coverage andreduce “lighting waste”. A single HiLight can now cover an area of 7.000m² with an average of 20 luxes of brightness —ensuring a brighter, safer and more productive site.
HiLight provides you with a full portfolio of innovative and easy-to-use light towers for an energy saving light coverage that will help you boost your operational productivity while meeting environmental and safety standards.
HiLight MS 4 and MS 5 Technical Data
| Performance Data | HiLight MS 4 | HiLight MS 5 | |
|---|---|---|---|
| Rated frequency | Hz | 50 | 60 | 50 | 60 |
| Rated voltage | VAC | 230 | 240 | 230 | 240 |
| Operating temperature (min/max) | ºC | -20*/55 | -20*/55 |
| Energy Source | |||
| Type | Solar | Solar | |
| Fuel Consumption | |||
| Autonomy | h | 11 | 16 |
| Lights | |||
| Floodlights | LED | LED | |
| LED Type | SMD | SMD | |
| Power | W | 3 x 150 | 4 x 150 |
| Light coverage (20 lux avg) | 3.846 | 5.278 | |
| Light coverage (min 1 lux) | 4.592 | 5.852 | |
| Total Lumen | 61.500 | 117.000 | |
| Mast | |||
| Type | Manual | Manual | |
| Rotation | degrees | 340 | 340 |
| Maximum height | m | 7 | 7 |
| Maximum speed wind (Category IV) | km/h | 105 | 105 |
| Enclosure and trailer | |||
| Type | Trailer | Trailer | |
| Base frame | Galvanized | Galvanized | |
| Enclosure | HardHat® | HardHat® | |
| Dimensions and weight | |||
| Dimensions in transport
Fix Towbar(L x W x H) |
m | 3,57 x 1,14 x 2,66 | 3,57 x 1,14 x 2,66 |
| Weight (dry) | kg | 870 | 1000 |
HiLight MS 4 & MS 5 Lighting Towers FAQ
1. What are the main differences between HiLight MS 4 and MS 5?
The HiLight MS 4 has a lighting coverage area of 3,846 square meters, while the HiLight MS 5 covers 5,278 square meters. They may also differ in light source, energy efficiency, and runtime.
2. What are the typical applications for these lighting towers?
The HiLight MS series is suitable for construction sites, open-pit mining, emergency response, outdoor events, warehouse logistics, and other areas requiring efficient lighting.
3. What type of bulbs do these towers use?
The HiLight MS 4 and MS 5 are typically equipped with high-efficiency LED bulbs, which offer longer lifespan and lower energy consumption.
4. Are these lighting towers environmentally friendly?
Yes, the HiLight MS series uses low-energy LED lights and efficient power supply systems to reduce carbon emissions and energy consumption.
5. What are the power supply options for these lighting towers?
The HiLight MS series supports multiple power supply options, including diesel generators, batteries, or solar power, to meet different operational needs.
6. What is the maximum lighting duration of the HiLight MS 4 and MS 5?
The runtime depends on the type of power source and fuel capacity. For example, diesel-powered versions may run for over 200 hours, while battery or solar-powered versions depend on charging conditions.
7. Are these lighting towers easy to install and transport?
Yes, the HiLight MS series features a compact design, a foldable mast, and a trailer base, making it easy to transport and deploy quickly.
8. Can these lighting towers operate in extreme weather conditions?
Yes, the HiLight MS series is designed to operate reliably in harsh weather conditions, with wind resistance, and temperature tolerance features.
9. Do these lighting towers support remote control and automatic start/stop functions?
Some models may be equipped with smart control systems that allow remote operation and automatic start/stop functions to improve efficiency and energy savings.
10. Are the maintenance costs high for these lighting towers?
Thanks to high-efficiency LED lights and optimized power systems, the HiLight MS series requires minimal maintenance—mainly periodic checks on fuel, batteries, or solar power systems.
