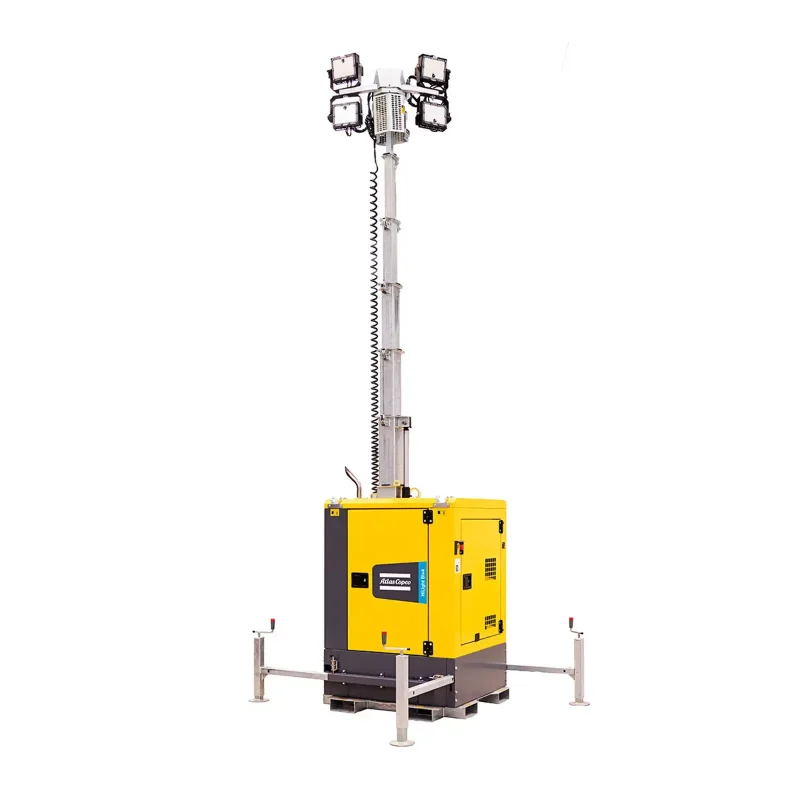

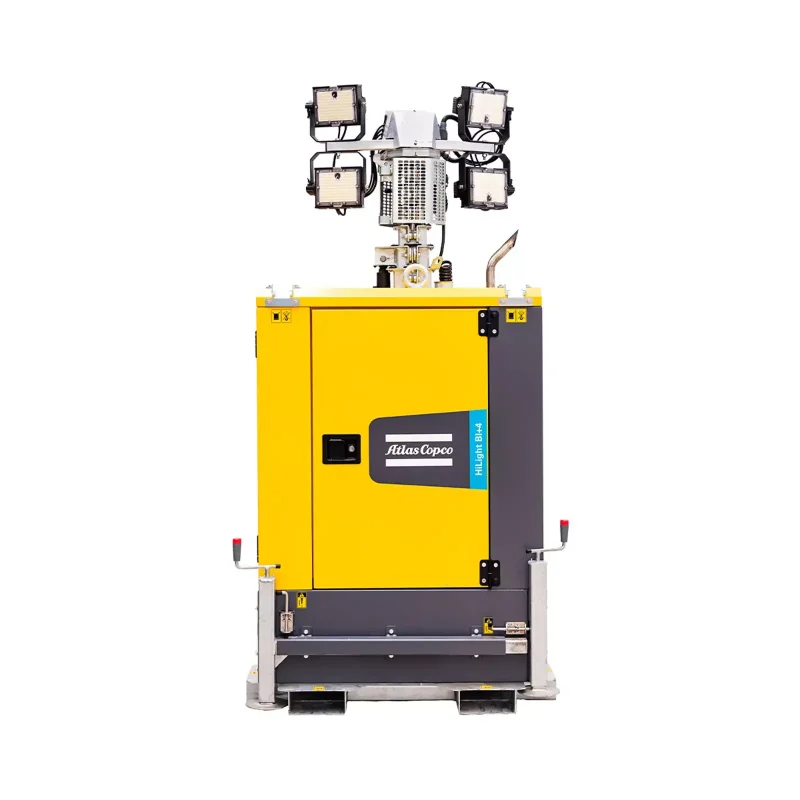

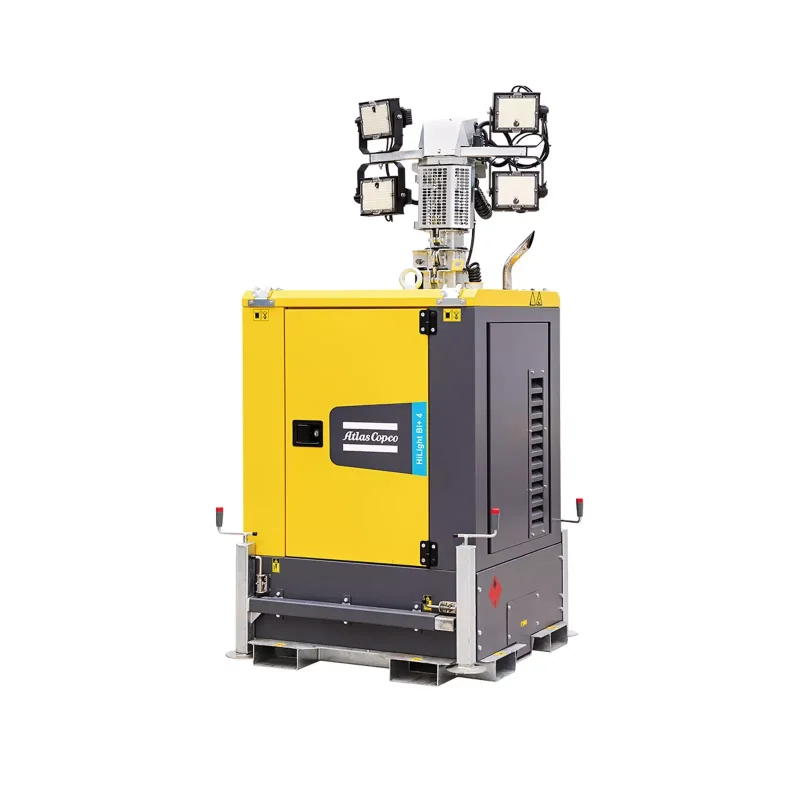

The HiLight BI+ 4 hybrid Atlas Copco lighting tower incorporates state-of-the-art surface mount device (SMD) LED lighting technology and lithium-ion batteries to provide excellent performance and efficiency. Combining the use of batteries with a low-consumption Stage V diesel engine, the new HiLight BI+ 4 light tower offers users maximum flexibility as it has four operating modes: it can be powered directly from mains electricity, from its lithium-ion batteries, from its diesel engine, or from a hybrid setting to make the most of the energy available.
Combining the use of lithium-ion batteries with a low-consumption Stage V diesel engine, the new HiLight BI+ 4 hybrid Atlas Copco lighting tower offers users maximum flexibility as it has four operating modes. When running solely on the batteries, it provides you with up to 19 hours of silent and emission-free operations. And, in hybrid mode, it offers the lowest average fuel consumption in its class with 0,29l/h. Thanks to the incorporation of a battery, you can reduce up to seven tonnes of CO2 per unit, per year.
Contents
- 1 HiLight BI+ 4 Features and benefits
- 2 HiLight BI+ 4 Technical data
- 3 HiLight BI+ 4 Lighting Tower FAQ
- 3.1 1. What are the key features of the HiLight BI+ 4 lighting tower?
- 3.2 2. What type of power source does the HiLight BI+ 4 use?
- 3.3 3. What is the expected runtime of the HiLight BI+ 4 on a full charge?
- 3.4 4. Is the HiLight BI+ 4 easy to transport and deploy?
- 3.5 5. What are the ideal applications for the HiLight BI+ 4?
- 4 Inquiry Now
HiLight BI+ 4 Features and benefits
These hybrid light towers have a battery autonomy of seven hours when operating at their full potential. And, when using their dimming function, they can provide over 20 hours of silent and emission-free operation with a single charge. With a battery recharging time of just four hours, the HiLight BI+ 4 can also feature an external power plug as an option.
With a 60% reduction in engine runtime, service intervals are three times longer than light towers that run solely on diesel. The HiLight BI+ 4 hybrid Atlas Copco lighting tower requires minimal maintenance every 1.500 hours of lighting, so users can save on costs associated with servicing.
The HiLight BI+ 4 has four floodlights providing 150W power to reliably cover 4.000m² . With a fully hydraulic mast lifting and electric mast rotation, it is 15% lighter than any other hybrid light tower and you can fit up to 22 units on a standard 13-metre Eurotruck.
HiLight BI+ 4 Technical data
| Performance data | HiLight BI+ 4 | |
|---|---|---|
| Rated frequency | Hz | 50 |
| Rated voltage | VAC | 230 (Input) |
| Rated power (PRP) | kW | 1,4 |
| Operating temperature (min/max) | ºC | -10 / 50 |
| Sound power level (LwA) | dB(A) | 81 |
| Sound pressure level (LpA) at 7m | dB(A) | 53 |
| Energy Source | ||
| Type | Hybrid | |
| Model | Kubota Z482 | |
| Speed | rpm | 1500 |
| Rated net output (PRP) | kW | 2,7 |
| Coolant | Water | |
| Number of cylinders | 2 | |
| Fuel consumption | ||
| Fuel tank capacity | l | 180 |
| Autonomy | h | 614 |
| Lights | ||
| Floodlights | LED | |
| Wattage | W | 4 x 150 |
| Mast | ||
| Type | Hydraulic | |
| Rotation | degrees | 340 |
| Maximum height | m | 8 |
| Maximum speed wind | km/h | 80 |
| Dimensions and weight | ||
| Dimensions in transport Fix Towbar (L x W x H) |
m | 1,18 x 1,16 x 2,59 |
| Weight | kg | 1005 |
HiLight BI+ 4 Lighting Tower FAQ
1. What are the key features of the HiLight BI+ 4 lighting tower?
The HiLight BI+ 4 is a hybrid lighting tower that combines battery and solar energy for efficient and sustainable lighting. It offers silent operation, zero CO₂ emissions, and extended runtime with minimal maintenance needs.
2. What type of power source does the HiLight BI+ 4 use?
This lighting tower operates using a lithium battery system, which can be recharged through solar panels or an external power source, providing an eco-friendly alternative to traditional diesel-powered towers.
3. What is the expected runtime of the HiLight BI+ 4 on a full charge?
The HiLight BI+ 4 can provide continuous lighting for up to 32 hours on a full charge, depending on environmental conditions and usage settings.
4. Is the HiLight BI+ 4 easy to transport and deploy?
Yes, it features a compact and lightweight design with a trailer-mounted system, making it easy to transport and set up in various locations.
5. What are the ideal applications for the HiLight BI+ 4?
The HiLight BI+ 4 is perfect for urban construction sites, outdoor events, emergency response situations, and areas where noise and emissions restrictions apply, thanks to its silent and clean operation.
