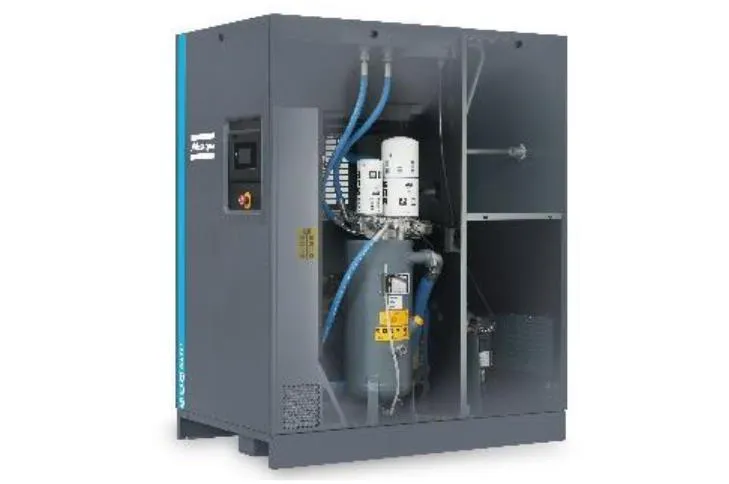

GA+ Air Compressor Product series
GA11+，GA15+，GA18+，GA22+，GA26+，GA30
Atlas Copco oil injection screw compressor

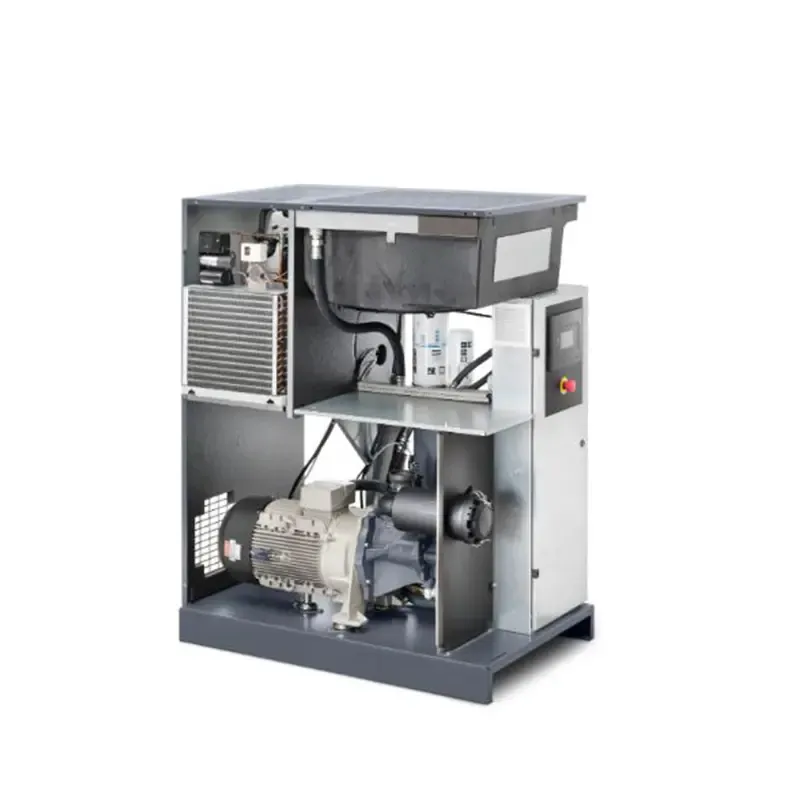

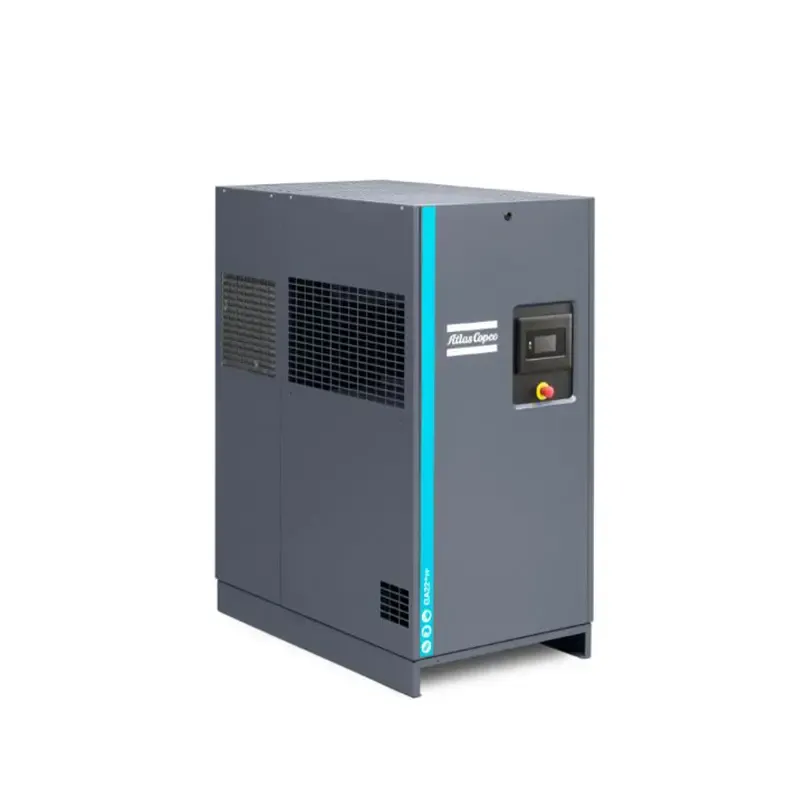

Atlas Copco Air Compressor GA11+ – 30 FF, a single stage oil injection screw compressor driven by motor, power range of 11~30kw, provides an efficient and reliable field type constant frequency air compressor. The new model has made significant improvements in all aspects, and is particularly prominent in reducing energy consumption. The compressor can be designed for harsh working environments, with ambient temperatures up to 46 ° C for standard models, and provides quiet compressed air with a field noise level of 68-70 dB. GA11+-30 series air compressor manufacturing standards based on ISO 9001, ISO 14001, ISO 1217, high reliability is guaranteed.
- The new generation GA11+-30 gear-driven constant frequency air compressor has achieved new breakthroughs in performance and key components, including: – IE3/IE4 motor configuration, with Atlas Copco efficient main engine and reliable gearbox – the average displacement volume (FAD) increased by 6.9%, and the average power (SER) decreased by 3.3%
- New Elektronikon touch screen (GA30 with Elektronikon® slide key screen) controls the computer with built-in intelligent algorithms
Energy consumption of the whole machine; Built-in phase sequence protection to prevent motor reversal and avoid accidental customer losses - The built-in dryer provides high quality compressed air with a pressure dew point of 3 degrees Celsius, which not only avoids condensation in the pipe network but also avoids condensation
Prevent it from corroding the pipeline - Standard built-in moisture and electronic drainage valve, which can achieve automatic drainage and reduce compressed air loss

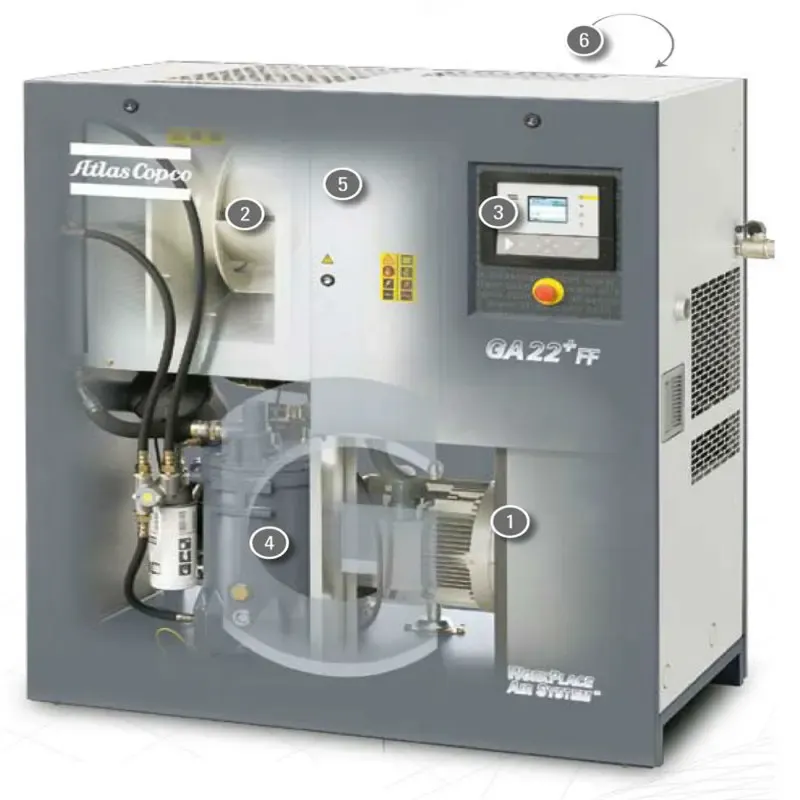

GA+ Air Compressor Main Parts

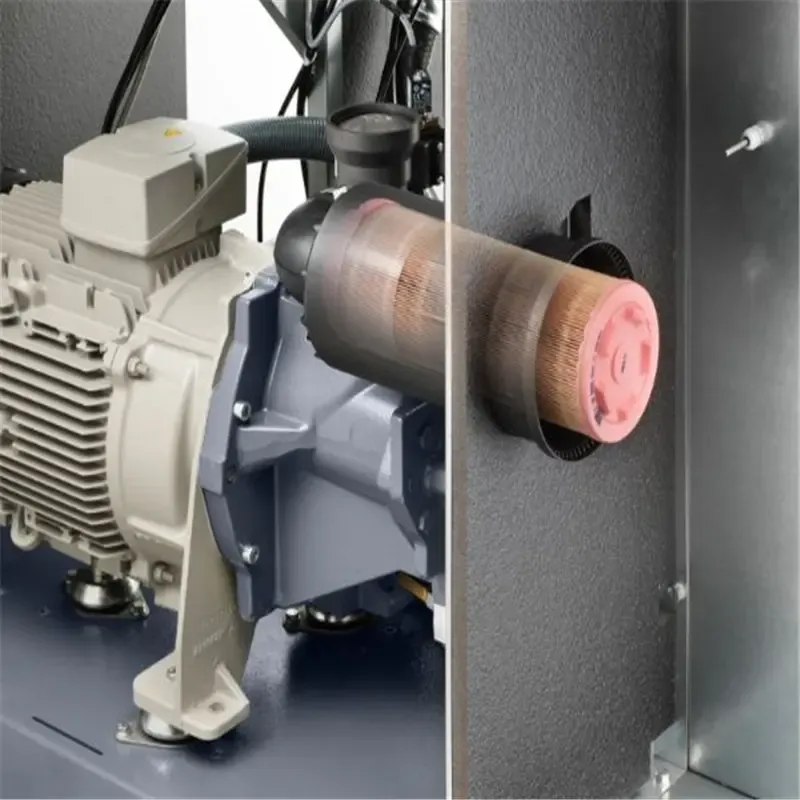

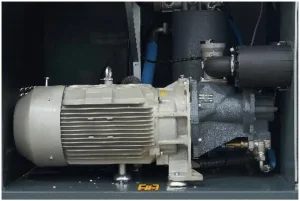

Drive System
High quality gear design for non-coupling connections reduces maintenance points. Gear design reduces transmission losses. Featuring Atlas Copco’s core reliable drive chain and efficient gearbox.
Equipped with highly efficient IE3/IE4 ultra-efficient motor, lifelong grease lubrication of motor bearings, new upgrades, FAD displacement increased by 6.9% on average, SER power consumption decreased by 3.3% on average (compared to the previous generation GA11+-30).
Electric control cabinetThe electric control cabinet forced cooling mode is adopted to further reduce the temperature in the cabinet, thereby improving the life of electronic components

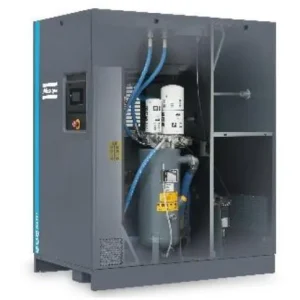

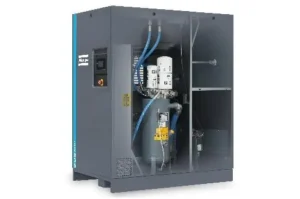

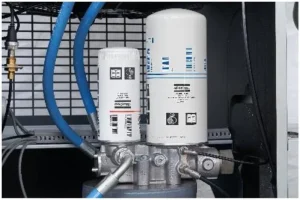

Air Oil Separator
New vertical design of the oil separation tank further reduces oil residue and avoids oil pollution. Reduce the volume of the oil and gas separator and reduce the loss of compressed air during loading and unloading.

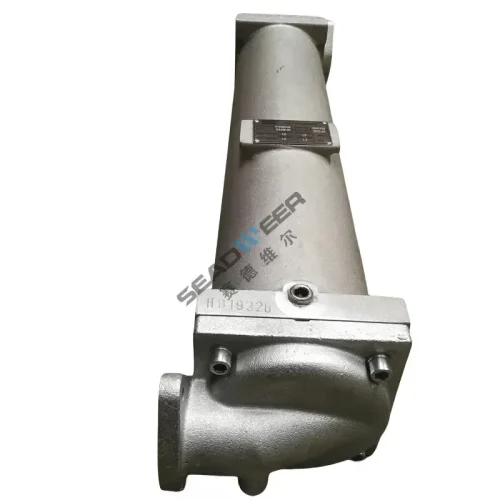

Cooling System
Reliable and efficient combined cooler can effectively reduce the compressed air discharge temperature, reduce the rear air handling equipment load, better protection
Air network. In addition, the cooling fan is less noisy and consumes less energy than previous models.

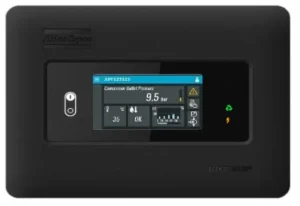

MK5S Controller
MK5S touch screen controller GA11+, GA15+, GA18+, GA22+, GA26+ New Elektronikon® touch screen, built-in intelligent algorithm, optimize system pressure, reduce machine energy consumption, remote start and stop, alarm output, maintenance planning, network diagnosis are available. Built-in Smartlink remote monitoring to grasp the real-time system status. Built-in phase sequence protection to avoid motor inversion. Options available to implement control of multiple machines (2,4,6).
