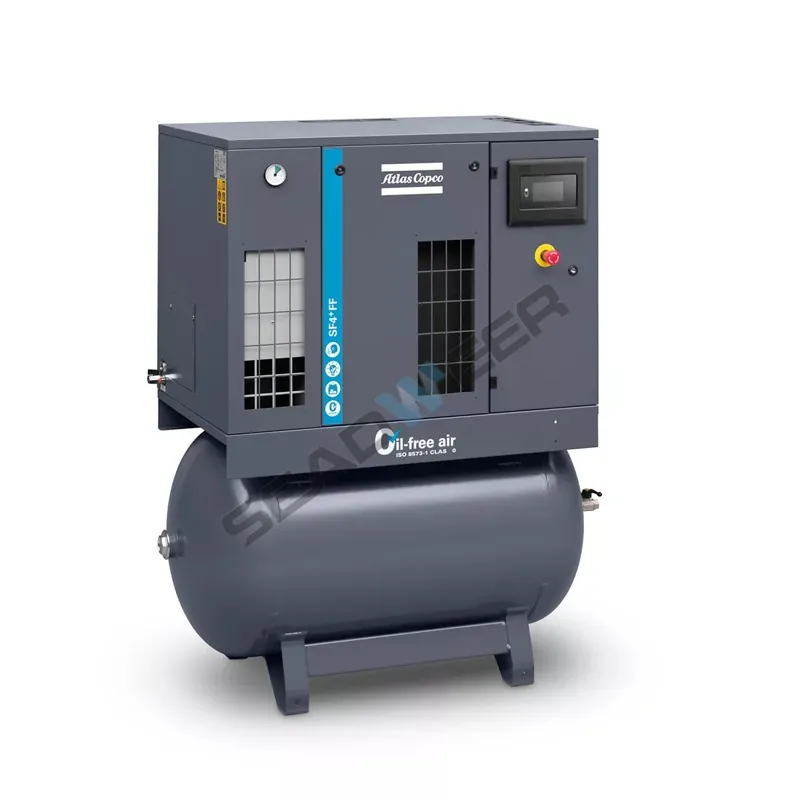

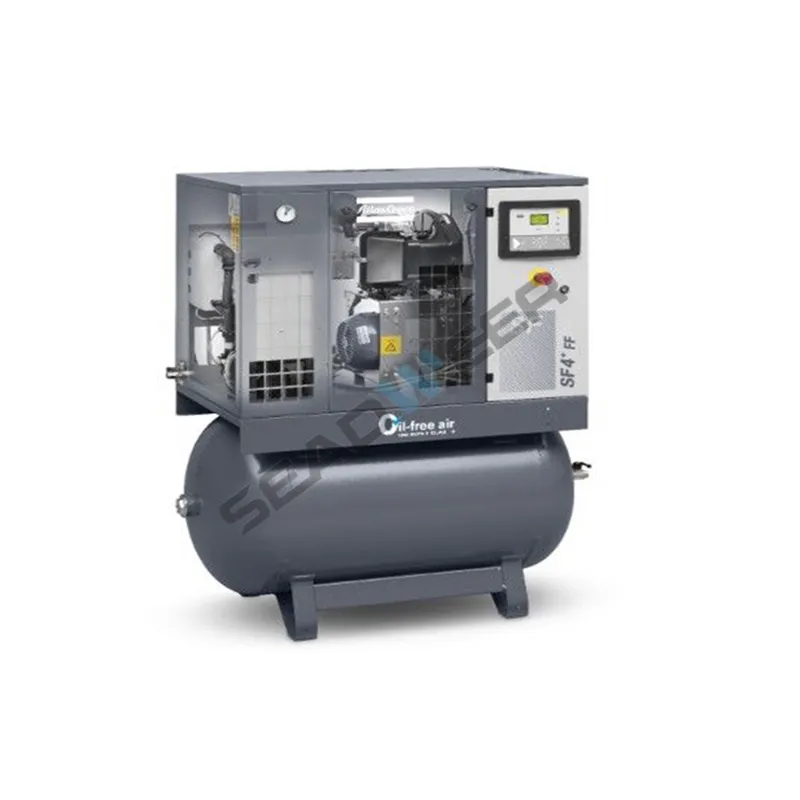

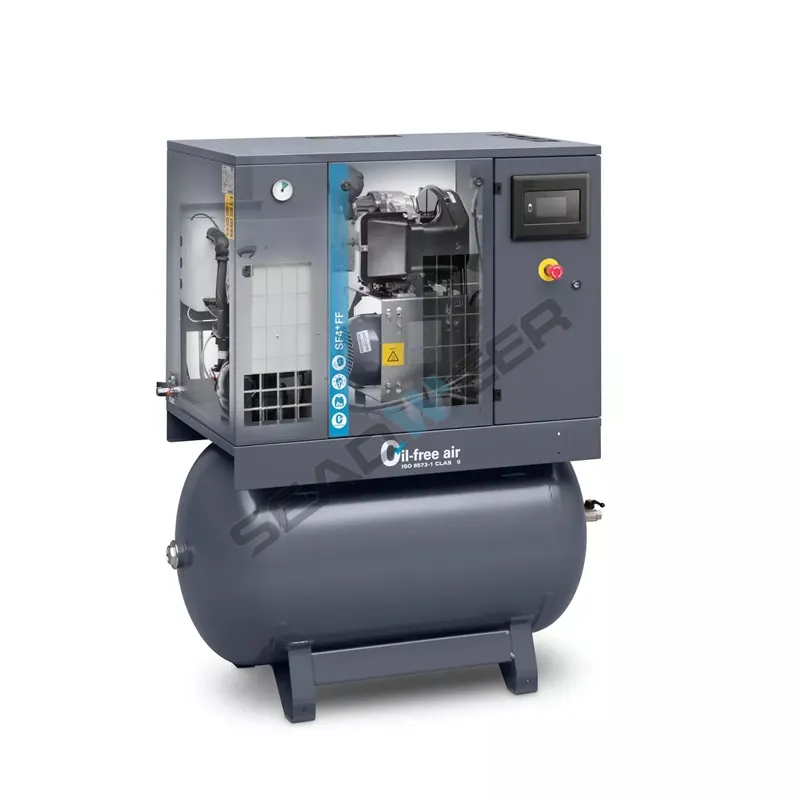

The Atlas Copco Oil-free scroll air compressors SF2, SF4+, and SF6+ FF/TM range is an all-in-one solution that combines the compression element, drive motor, aftercooler, and starter within an ultra-quiet acoustic enclosure, making it ideal for installation directly at the point of use. A Full Feature version is also available, which includes an integrated refrigerant dryer. Users can choose from three receiver mounting configurations: an extended canopy housing three built-in 10-liter galvanized receivers, or installation on a 270-liter (72-gallon) or 500-liter (132-gallon) horizontally mounted, internally coated air receiver.
Contents
- 1 Atlas Copco Oil-free Air Compressors: EFFICIENT, SILENT & COMPACT
- 2 Atlas Copco Oil-free Air Compressors：ADVANCED SCROLL TECHNOLOGY
- 3 Class Zero: Theindustry StandardCLASS ZERO: THEINDUSTRY STANDARD
- 4 Atlas Copco Oil-free Air Compressors Technical Specifications
- 5 Atlas Copco Oil-free Air Compressors Options
- 6 Dimensions
- 7 Inquiry Now
Atlas Copco Oil-free Air Compressors: EFFICIENT, SILENT & COMPACT
Air inlet filter
High efficiency paper cartridge air filter, eliminating dust and particles down to 1 µm.
Automatic regulation
Automatic stop when the required working pressure is reached, avoiding unnecessary energy costs.
High efficiency scroll element
Air-cooled scroll compressor element offering proven durability and reliability in operation, in addition to solid efficiency.
IP55 Class F/IE3 motor
Totally enclosed air-cooled IP55 Class F motor, complying with IE3 & Nema Premium efficiency standards.
Refrigerant dryer
Compact & optimized integrated refrigerant dryer, ensuring the delivery of dry air, preventing rust and corrosion in your compressed air network.
Cooler & piping
● An oversized cooler improves the performance of the unit.
● The use of aluminum pipes and the vertically oversized check valve improve reliability over lifetime and assure the high quality of your compressed air.
Silent canopy
A sound insulated canopy makes extremely low noise levels as low as 53 dB(A) possible, allowing to install the unit closer to the point of use.
Integrated receiver
Plug and play solution, lower installation costs with 30l, 270l and 500l tank-mounted options.
Elektronikon® (SF+)
Monitoring features include warning indications, maintenance scheduling and online visualization of running conditions.
Innovative design
The new compact vertical setup enables easy access for maintenance, improves cooling allowing lower working temperatures and provides vibration damping.
Atlas Copco Oil-free Air Compressors：ADVANCED SCROLL TECHNOLOGY

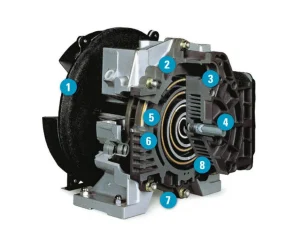

Air compression occurs through the interaction between a fixed scroll and an orbiting scroll. Air enters the compression chamber from the outer edge of the scroll element at inlet pressure. Once inside, the orbiting scroll closes off the inlet. As it continues its orbiting motion, the trapped air is gradually compressed into smaller and smaller pockets. The compressed air is then discharged through a central port located in the fixed scroll. This cycle repeats continuously, providing a steady, pulse-free stream of compressed air.
- Cooling fan
- Suction chamber
- Suction opening
- Delivery opening
- Fixed scroll
- Orbiting scroll
- Fail-safe temperature sensor for unit protection
- Compression chamber
Class Zero: Theindustry StandardCLASS ZERO: THEINDUSTRY STANDARD
Oil-free air: essential for critical industries
Oil-free air is crucial in industries where air purity is vital. These industries include food and beverage production, pharmaceutical manufacturing, petrochemical processing, wastewater treatment, and many others. In such sensitive environments, even the slightest trace of oil contamination can lead to significant production losses and product spoilage.
Pioneers in oil-free air technology
Atlas Copco has led the way in oil-free air technology for over six decades, developing a broad range of air compressors that deliver 100% pure, oil-free air. Through ongoing research and innovation, the company reached a significant milestone by becoming the first manufacturer to receive ISO 8573-1 Class 0 certification—setting the benchmark for air purity.
Ensuring zero risk
With a strong commitment to satisfying the strictest customer demands, Atlas Copco partnered with the independent TÜV institute to conduct comprehensive testing of its Atlas Copco oil-free compressor range. These tests involved the most stringent methods, measuring all forms of oil under various temperatures and pressures. The results confirmed that no oil was detected in the compressed air output. As a result, Atlas Copco became the first compressor manufacturer to earn Class 0 certification in accordance with ISO 8573-1 Class 0 Edition 3 (2010), eliminating any risk of oil contamination.
| CLASS | Concentration total oil(aerosol, liquid, vapor) mg/m3 |
| 0 | As specified by the equipment user or supplier and more stringent than class 1 |
| 1 | < 0.01 |
| 2 | < 0.1 |
| 3 | < 1 |
| 4 | < 5 |
Atlas Copco Oil-free Air Compressors Technical Specifications
| TYPE | Max. working | pressure | Capacity FAD* | Installed motor power | Noise | Wei g ht | ||||
| level** | ||||||||||
| bar(e) | psig | l/s | m3/min | cfm | kW | hp | dB(A) | kg | lbs | |
| SF 1-6/2+-6+ (50/60 Hz) | ||||||||||
| SF1 | 8 | 116 | 2.9 | 0.17 | 6.1 | 1.5 | 2 | 53 | 120 | 265 |
| 10 | 145 | 1.9 | 0.11 | 4 | 1.5 | 2 | 53 | 120 | 265 | |
| SF 2/SF 2* | 8 | 116 | 4.2 | 0.25 | 8.9 | 2.2 | 3 | 55 | 125 | 276 |
| 10 | 145 | 3.4 | 0.2 | 7.2 | 2.2 | 3 | 55 | 125 | 276 | |
| SF4/SF4+ | 8 | 116 | 6.7 | 0.4 | 14.2 | 3.7 | 5 | 57 | 133 | 293 |
| 10 | 145 | 5.9 | 0.35 | 12.5 | 3.7 | 5 | 57 | 133 | 293 | |
| SF6/SF6* | 8 | 116 | 9.8 | 0.59 | 20.8 | 5.5 | 75 | 59 | 157 | 346 |
| 10 | 145 | 7.6 | 0.46 | 16.1 | 5.5 | Z5 | 59 | 157 | 346 | |
| SF SKID/TWIN | |||||||||||
| Skid versions | |||||||||||
| SF1 | 8 | 116 | 2.9 | 0.17 | 6.1 | 1.5 | 2 | 65 | 105 | 232 | |
| 10 | 145 | 1.9 | 0.11 | 4 | 1.5 | 2 | 65 | 105 | 232 | ||
| SF2 | 8 | 116 | 4.2 | 0.25 | 8.9 | 2.2 | 3 | 67 | 110 | 243 | |
| 10 | 145 | 3.4 | 0.2 | 7.2 | 2.2 | 3 | 67 | 110 | 243 | ||
| SF 4 | 8 | 116 | 6.6 | 0.4 | 14 | 3.7 | 5 | 68 | 120 | 265 | |
| 10 | 145 | 5.6 | 0.34 | 11.9 | 3.7 | 5 | 68 | 120 | 265 | ||
| Twin versions – duplex tank mounted | |||||||||||
| SF 6T | 8 | 116 | 10.6 | 0.64 | 22.5 | 5.9 | 8 | 72 | 365 | 805 | |
| 10 | 145 | 9 | 0.54 | 19.1 | 5.9 | 8 | 72 | 365 | 805 | ||
| SF 8T | 8 | 116 | 13.2 | 0.79 | 279 | 7.4 | 10 | 73 | 375 | 827 | |
| 10 | 145 | 11.2 | 0.67 | 23.7 | 7.4 | 10 | 73 | 375 | 827 | ||
* Free Air Delivery measured according ISO 1217 ed. 4 2009, Annex C.
** Mean sound pressure level measured according to ISO 2151, with an uncertainty of 3 dB(A). Weights of the pack & floor-mounted units are shown in the chart.
Atlas Copco Oil-free Air Compressors Options
| SF 1-6 | SF 2⁺-6⁺ | |
| Integrated refrigerant dryer | • | • |
| CD adsorption dryer (only for Full Feature tank-mounted variants) | – | • |
| Phase Sequence Relay | • | • |
| Prefiltration kit | • | • |
| Integrated 30l air receiver + EWD | • | • |
| 270l air receiver | • | • |
| 500l air receiver | • | • |
| EWD on air receiver (only for tank-mounted variants) | • | • |
| Water Separator Drain (WSD) (only for Pack floor-mounted variants) | – | • |
| Upgrade to Mk5 Graphic Controller | – | • |
| ES4i & ES6i (only with Mk5 Graphic Controller upgrade) | – | • |
| Wooden package | • | • |
| Test certificate | • | • |
| SF Skid/Twin | |
| 270l air receiver (SF Skid) | • |
| CD adsorption dryer (only for FFTM variants) | • |
Dimensions
| TYPE | L*W*H | |
| mm | inch | |
| SF 1-6/2⁺-6⁺ | ||
| Pack & floor-mounted | 760 x 690 x 840 | 29.9 x 27.2 x 33.1 |
| Full Feature & floor-mounted | 1025 x 690 x 840 | 40.4 x 27.2 x 33.1 |
| Pack & 270l receiver | 1275 x 690 x 1450 | 50.2 x 27.2 x 57.1 |
| Full Feature & 270l receiver | 1275 x 690 x 1450 | 50.2 x 27.2 x 57.1 |
| Pack & 500l receiver | 2055 x 690 x 1450 | 80.9 x 27.2 x 57.1 |
| SF 1-4 Skid / SF 6-8 Twin | ||
| SF 1-4 Skid FM | 800 x 600 x 540 | 31.5 x 23.6 x 21.3 |
| SF 1-4 SkidTM | 1267 x 600 x 1154 | 49.9 x 23.6 x 45.4 |
| SF 6-8 Twin | 2043 x 600 x 1154 | 80.4 x 23.6 x 45.4 |
Pure Air. Zero Compromise. – Choose Atlas Copco SF2 / SF4+ / SF6+ FF/TM Today!
When air purity is non-negotiable, the Atlas Copco SF series oil-free scroll air compressors deliver performance you can trust. Engineered for industries like food & beverage, pharmaceuticals, electronics, and clean manufacturing, the SF2 / SF4+ / SF6+ FF/TM models ensure 100% oil-free, ISO 8573-1 Class 0 certified air—eliminating any risk of contamination, downtime, or product loss.
✔ Ultra-quiet operation – ideal for point-of-use
✔ Integrated dryer options (Full Feature) for moisture-free air
✔ Space-saving design with multiple receiver mounting options
✔ Proven reliability from the world leader in oil-free technology
Stock is limited—ensure uninterrupted, clean air supply. Order now for fast delivery and competitive pricing!
Seadweer is your trusted authorized supplier of 100% original Atlas Copco oil-free air compressors and parts.
Anonymous –
Surprised me most was how quiet it operates！
After running our dental clinic for 15 years, switching to the Atlas Copco SF4+ was the best decision we’ve made. The complete absence of oil contamination gives us peace of mind for patient safety. What surprised me most was how quiet it operates – our patients no longer complain about compressor noise during procedures. Maintenance is a breeze compared to our old oil-lubricated unit – just basic filter changes every 6 months. After 18 months of heavy use (10+ hours daily), it hasn’t skipped a beat. The energy savings are noticeable on our utility bills too. While the upfront cost was higher, the reliability and zero downtime have more than paid for itself. This is professional-grade equipment that actually delivers on its promises.
