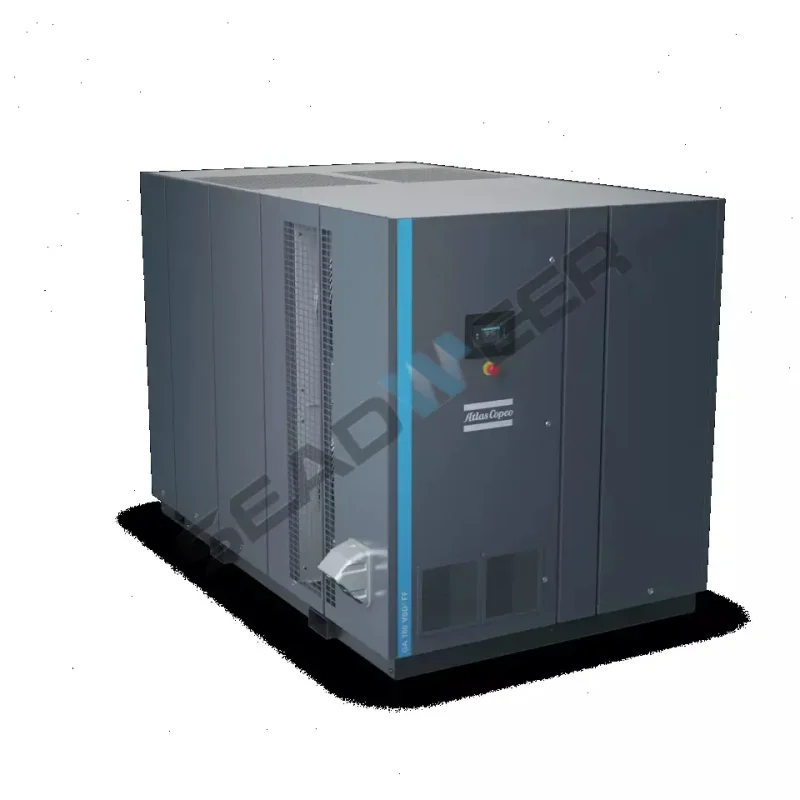

Atlas Copco GA90⁺ GA110 GA132 GA160 VSD⁺ Air Compressors

Atlas Copco’s legacy of innovation in compressed air technology reaches a new pinnacle with the GA90⁺, GA110, GA132, and GA160 VSD⁺ (2935067803)series. Engineered for uncompromising efficiency and reliability, these oil-injected rotary screw compressors represent a significant leap forward in performance and sustainability for demanding industrial applications. This product introduction delves into the advanced features and benefits of Atlas Copco GA90⁺ GA110 GA132 GA160 VSD⁺ Air Compressors, exploring how their Variable Speed Drive Plus (VSD⁺) technology and intelligent design deliver substantial energy savings and ensure optimal operational output across a wide spectrum of compressed air needs.

Highest Reliability, Lowest Operating Costs

For businesses seeking to enhance profitability, minimizing operational costs is paramount. Given that energy expenses can constitute as much as 80% of an air compressor’s lifecycle cost, the Atlas Copco GA series, including the Atlas Copco GA90⁺ GA110 GA132 GA160 VSD⁺ models, offers a strategic advantage. Equipped with SmartInjection compression elements and IE4 or higher efficiency motors, these compressors are engineered for significant energy reduction while maintaining robust performance and longevity, even in challenging operational settings.

Efficiency:

The GA compressors are engineered for peak efficiency, driven by cutting-edge compression elements incorporating SmartInjection technology and coupled with high-efficiency, oil-cooled IE4 or better class motors. This advanced drive train, complemented by a generous cooling system, minimal internal pressure losses, and the intelligent control of the Elektronikon® Touch, ensures optimized performance and reduced energy consumption.

Reliability:

Engineered for dependable operation in even the most challenging environments, the GA compressor’s IP66-rated drive train provides complete protection against dust and moisture. This robust design guarantees reliability at ambient temperatures up to 55°C/131°F.

Serviceability:

Designed for minimal downtime, the GA compressors feature conveniently grouped service components for easy access. Furthermore, the patented portal design allows complete access to all internal components when necessary. Each component is also specifically engineered for simplified maintenance, significantly reducing service time compared to conventional designs.

Trusted Worldwide: Powering Diverse Industries with Reliable Compressed Air

Across the globe, thousands of Atlas Copco GA90⁺ GA110 GA132 GA160 VSD⁺ compressors stand as testament to their reliability and efficiency, delivering compressed air solutions for a vast spectrum of applications.

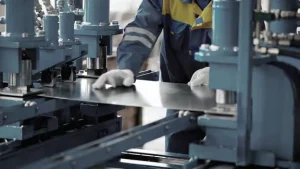

General Industry: Optimizing Costs at Every Stage

For countless industrial operations relying on compressed air for tasks ranging from powering pneumatic tools and actuators to managing ventilation and automating packaging, the GA series is engineered for the lowest possible lifecycle cost, ensuring long-term profitability.

Mining: Unwavering Performance in the Toughest Environments

In the demanding mining sector, where compressed air is crucial for dust control, service operations, ventilation, and powering tools, the robustness and reliability of GA compressors guarantee consistent performance, even in the most challenging conditions.

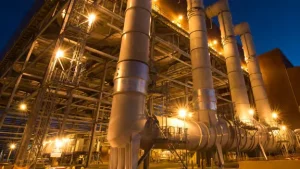

Power Plants: Dependable Energy for Continuous Operation

With round-the-clock operation being critical for power generation, plants rely on a constant and dependable supply of compressed air for essential functions like soot blowing and fly ash handling. GA compressors are designed to provide this unwavering reliability.

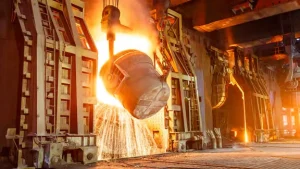

Metal Plants: Driving Efficiency for Cost Savings and Environmental Responsibility

Metal plants require efficient compressed air solutions for instrumentation, general plant use, and the pneumatic transfer of materials. The Atlas Copco GA90⁺ GA110 GA132 GA160 VSD⁺ series is specifically designed to meet these needs, helping to significantly reduce operating costs and achieve stringent environmental targets.

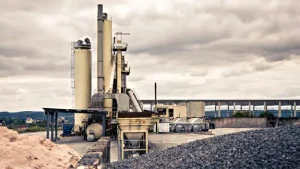

Cement Industry: Simplified Maintenance for Harsh Operations

Cement production is a major consumer of compressed air, primarily for transporting raw materials. Recognizing the harsh, dusty environments of cement works, which can compromise compressor performance, GA compressors feature an IP66-rated drive train to prevent contamination. Furthermore, their design emphasizes ease of maintenance and service with readily accessible components and slide-out coolers, minimizing downtime and ensuring consistent operation.

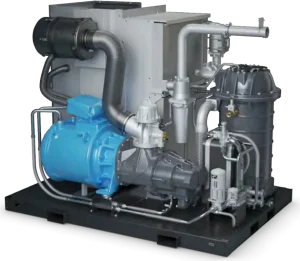

GA air-cooled fixed speed pack

Always operates reliably and at peak efficiency
• SmartInjection provides exact amount of oil required to element ensuring it always works at peak efficiency in different conditions.
• Separate oil flow to bearings for longer life and greater uptime.

High efficiency IE4 motor
• Oil cooled motors require no service interventions.
• IP66 rated for increased reliability even in tough environments.

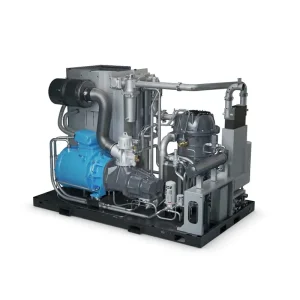

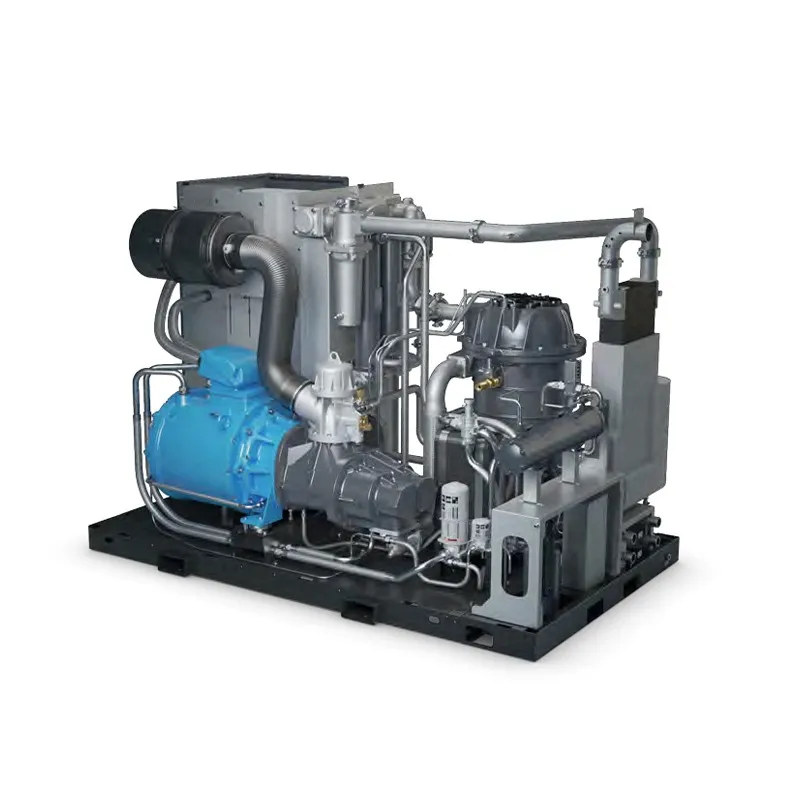

GA water-cooled fixed speed FF

Reduced service time for greater uptime
• Multiple smaller cartridges simplify and reduce service times and minimize oil carry over.

Ready-to-use compact package
• The GA Full Feature comes with an integrated dryer.
• Guaranteed dew point of 3°C/37°F.
• No additional installation work of wires and pipes.
• Reduced power consumption due to unique and patented Save Cycle Control stops the dryer when the compressor is stopped or in unload mode.
• Continuously monitored dew point.

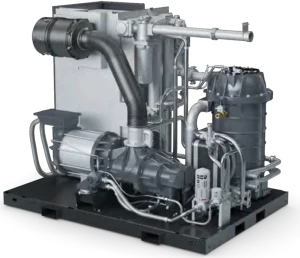

GA water-cooled VSD pack

Ease of maintenance
• Minimal service times with service parts grouped together for ease of access.
• Portal design enables full access to all components.
• All components are designed for serviceability.

Ease of maintenance
• Minimal service times with service parts grouped together for ease of access.
• Portal design enables full access to all components.
• All components are designed for serviceability.

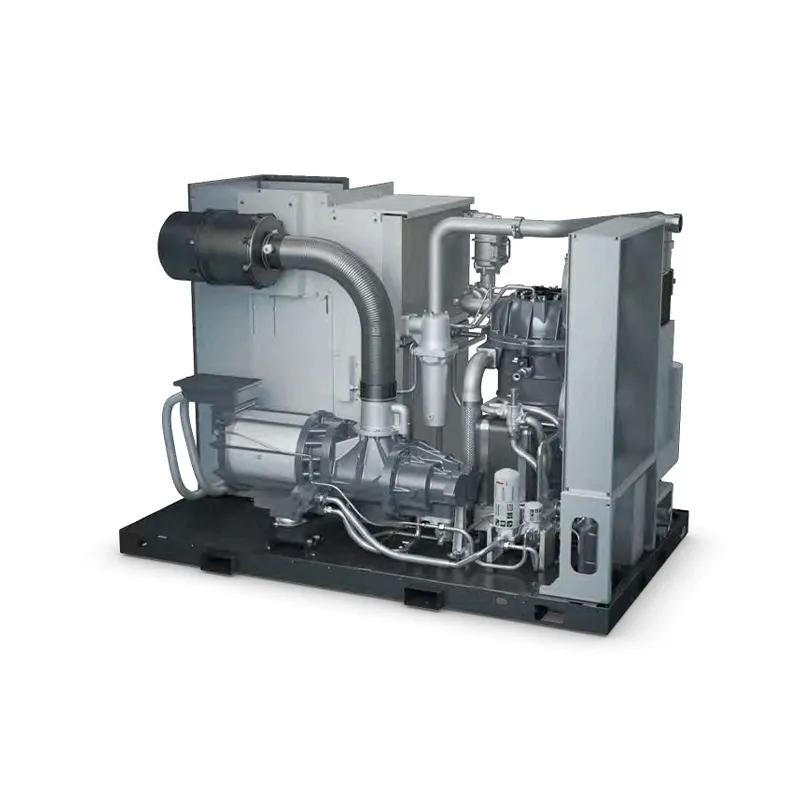

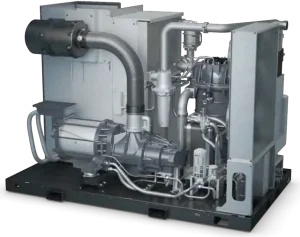

GA air-cooled VSD FF

Operate at temperatures up to 46°C (115°F) as standard
• VSD fan delivers energy efficiency in lower temperatures.

High efficiency IE5 Permanent Magnet motor
• No need for external cooling because of oil cooled motors.
• Increased reliability and fewer service interventions.
• IP66 rated motor.







VSD: Smart Control for Dramatic Energy Savings

Energy consumption is the dominant cost driver in an air compressor’s lifecycle, often representing over 80% of the total expenditure and potentially exceeding 40% of a plant’s entire electricity bill. Recognizing this, Atlas Copco pioneered Variable Speed Drive (VSD) technology within the compressed air industry. VSD offers a powerful solution to significantly reduce energy costs while contributing to a more sustainable future. Thanks to continuous innovation, Atlas Copco provides an extensive range of integrated VSD compressors.

Unlock Up to 35% Energy Savings

Atlas Copco’s intelligent VSD technology precisely matches air output to demand by automatically adjusting the motor speed. This responsive control delivers substantial energy savings, potentially reaching up to 35%, and can lower a compressor’s total lifecycle cost by an average of 22%. Furthermore, VSD enables operation at a lower system pressure, which significantly reduces energy usage across your entire production.

The Advantage of Integrated Atlas Copco VSD:

1. Uncompromising Safety and Control: The Elektronikon® system seamlessly manages both the compressor and the integrated frequency converter, ensuring peak machine safety within defined operational parameters.
2. Optimized Energy Use: VSD allows for flexible pressure selection, directly contributing to lower electricity bills.
3. Efficiency Across the Spectrum: A dedicated converter and motor design, featuring protected bearings, ensures maximum efficiency throughout the entire speed range.
4. Designed for Low-Speed Performance: The electric motor is specifically engineered for efficient operation at low speeds, with careful consideration for both motor and compressor cooling requirements.
5. Guaranteed Electromagnetic Compatibility (EMC): All Atlas Copco VSD compressors undergo rigorous EMC testing and certification, ensuring they do not interfere with external equipment and are protected from external interference.
6. Reduced Vibration for Enhanced Reliability: Mechanical enhancements minimize vibration levels across the entire compressor speed range, contributing to the long-term reliability of all components.
7. Stable Operation in High Temperatures: A highly efficient frequency converter housed within a dedicated cubicle ensures consistent performance even in ambient temperatures up to 50°C/122°F.
8. Maximized Turndown, Real Savings: Unlike systems with fixed ‘speed windows’ that can compromise efficiency, Atlas Copco VSD maximizes the compressor’s turndown capability to an impressive 70-75%, ensuring genuine energy savings and a stable network pressure.
9. Precise Pressure Control: The network pressure is maintained within an exceptionally tight band of just 0.10 bar (1.5 psi).

Intelligent Monitoring and Control:

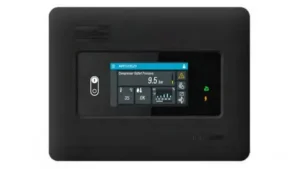

Elektronikon® MK5 Touch: Your Smart Compressor Management System

The Elektronikon® MK5 Touch controller is specifically engineered to optimize the performance of your compressors and air treatment equipment across a variety of operating conditions. This intelligent system delivers key advantages, including enhanced energy efficiency, reduced energy consumption, minimized maintenance downtime, and ultimately, a more reliable and less stressful compressed air system.







Intuitive Intelligence at Your Fingertips:

The full-color touch display provides an easy-to-understand overview of your equipment’s operational status. Its clear icons and intuitive navigation offer quick access to crucial settings and data. Key features include:

• Real-time monitoring of equipment running conditions and maintenance needs, providing timely alerts.
• Intelligent operation that reliably meets your specific compressed air requirements.
• Standard built-in remote control and notification functions, including an integrated, user-friendly webpage.
• Seamless integration with SMARTLINK for advanced monitoring and analysis.
• Support for 31 languages, including those with complex character sets.
• Remote Monitoring: Stay Connected, Stay Efficient

Monitor your compressors remotely via Ethernet using the Elektronikon® controller and the SMARTLINK service. This capability includes receiving warning notifications, compressor shutdown alerts, sensor trend analysis, and proactive maintenance scheduling.

Dual Set-Point and Automatic Stop: Intelligent Energy Management

Recognizing that production demands fluctuate, the Elektronikon® controller allows you to easily switch between two different pressure set points, either manually or automatically. This optimizes energy use during periods of low demand, significantly reducing costs. Furthermore, an advanced algorithm ensures the drive motor operates only when necessary, minimizing energy consumption while maintaining the desired pressure.

SMARTLINK: Comprehensive Compressed Air System Insight

Gaining complete visibility into the status of your compressed air installation is the most effective way to achieve peak efficiency and maximize uptime. SMARTLINK provides this crucial insight through:

• Energy Efficiency Focus: Customized reports highlighting opportunities to improve the energy efficiency of your compressor room.
• Enhanced Uptime: Timely maintenance alerts ensure all components are replaced as needed, maximizing operational availability.
• Cost Reduction: Early warnings of potential issues help prevent costly breakdowns and production losses.
• Optimized System Performance: Data-driven insights allow for continuous improvement of your compressed air system.

Optimizer 4.0: Taking Control to the Next Level

• Minimizing Excess Pressure: Optimizer 4.0 intelligently starts and stops compressors to minimize the generation of excess compressed air. Its intuitive interface allows for the setting of multiple pressure bands, enabling you to tailor your compressor installation for varying operational circumstances, including non-productive hours.
• Unlocking Full VSD Potential: When integrated with Atlas Copco GA90⁺ GA110 GA132 GA160 VSD⁺ compressors, Optimizer 4.0 ensures the compressed air output precisely matches demand, preventing energy waste from unnecessarily high pressures, excessive unloaded running, and spiraling energy costs.
• Improving Uptime through System Pressure Regulation: By regulating system pressure rather than just compressor output pressure, Optimizer 4.0 effectively eliminates production downtime caused by unexpected system pressure drops, automatically compensating for pressure losses in filters, piping, and dryers.

To ensure your energy savings are sustainable and adapt to your evolving needs, we also provide additional functionalities and services for Optimizer 4.0, accommodating installation changes and fluctuating demands.

Services

Properly caring for your air compressor helps you lower your operating costs and minimises the risk for unplanned breakdowns or production stops. Seadweer offers energy efficiency checks, service, repairs, genuine spare parts and maintenance plans for all air compressors. Entrust your servicing to our expert professionals and ensure your business continues to run efficiently. Our plans cover repairs, preventative maintenance, spare parts, and more.

Compressor oils, lubricants and fluids

Every type of compressor and vacuum pump needs a specific oil to achieve maximum uptime, performance and lifetime. Our compressed air fluids and lubricants cover all your needs.

Unique mix of additives
Tailored to the specific needs of your equipment.

Anti-oxidation
The high-quality oil ensures maximum protection.

Prevent foaming
Anti-foaming improves your air quality.

Maximize your resources with a Service Plan

Reduce your total cost of ownership and benefit from optimal performance

Save costs
Optimal maintenance will reduce the operational cost of your compressed air and vacuum system.

Increase operational efficiency
Our maintenance expertise makes life easier when it comes to resource management.

High uptime and performance
Specialist service keeps your equipment running as it should, protecting your investment.

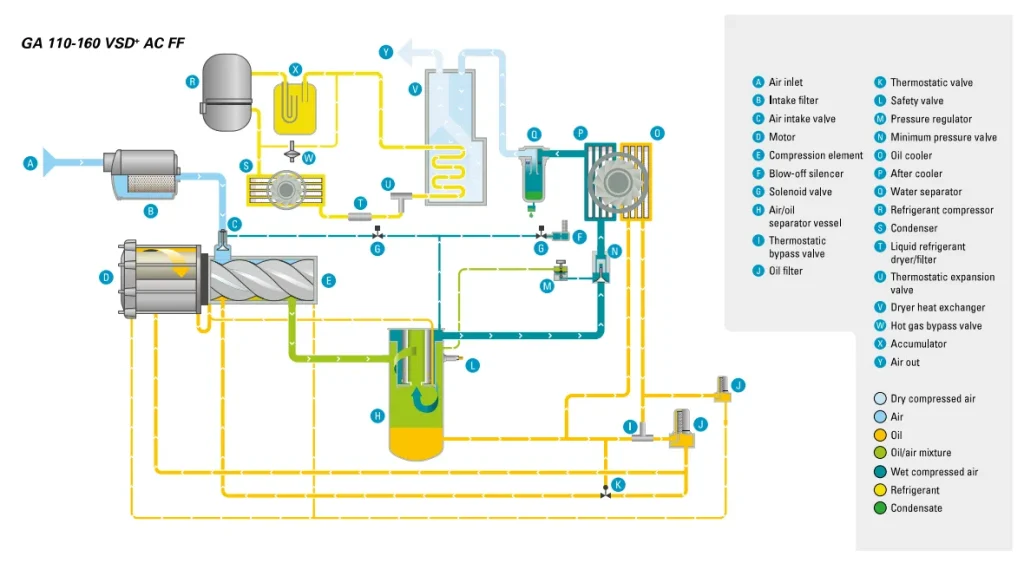

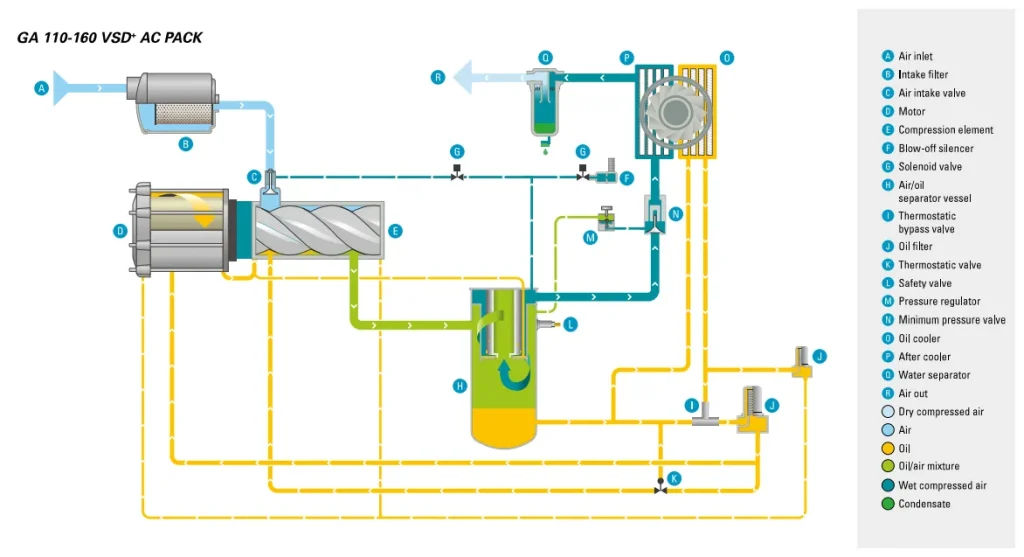

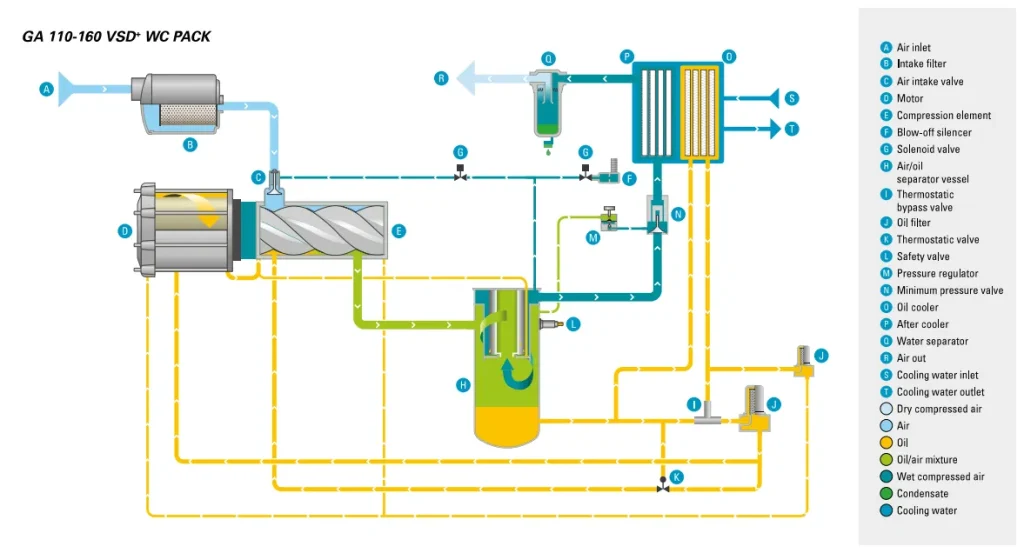

Flow Diagrams Atlas Copco GA90⁺ GA110 GA132 GA160 VSD⁺

Process flow, oil flow and cooling flow – step by step

Technical specifications GA 90+ – 160 (60 Hz)

(1) Unit performance measured according to ISO 1217, Annex C, Edition 4 (2009)
Reference conditions:
– Absolute inlet pressure 1 bar (14.5 psi).
– Intake air temperature 20°C (68°F).
(2) A-weighted emission sound pressure level at the workstation, Lp WSA (re 20 μPa) dB (with uncertainty 3 dB).
Values determined according to noise level test code ISO 2151 and noise measurement standard ISO 9614.
(3) Integrated dryer (FF) : compressed air pressure dewpoint at dryer reference conditions 3°C (37°F).

FAD(1) is measured at the following working pressures:

Dimensions

Technical specifications GA 90+ – 160 (60 Hz)

(1) Unit performance measured according to ISO 1217, Annex C, Edition 4 (2009)
Reference conditions:
– Absolute inlet pressure 1 bar (14.5 psi).
– Intake air temperature 20°C (68°F).
(2) A-weighted emission sound pressure level at the workstation, Lp WSA (re 20 μPa) dB (with uncertainty 3 dB).
Values determined according to noise level test code ISO 2151 and noise measurement standard ISO 9614.
(3) Integrated dryer (FF) : compressed air pressure dewpoint at dryer reference conditions 3°C (37°F).

FAD(1) is measured at the following working pressures:

Dimensions

---

Ready to experience the benefits of Atlas Copco GA90⁺ GA110 GA132 GA160 VSD⁺ Air Compressors cutting-edge compressors firsthand?

Contact us today for a personalized consultation and a quote tailored to your specific needs. Discover how the Atlas Copco GA VSD⁺ range can drive down your energy costs and enhance your operational efficiency.
