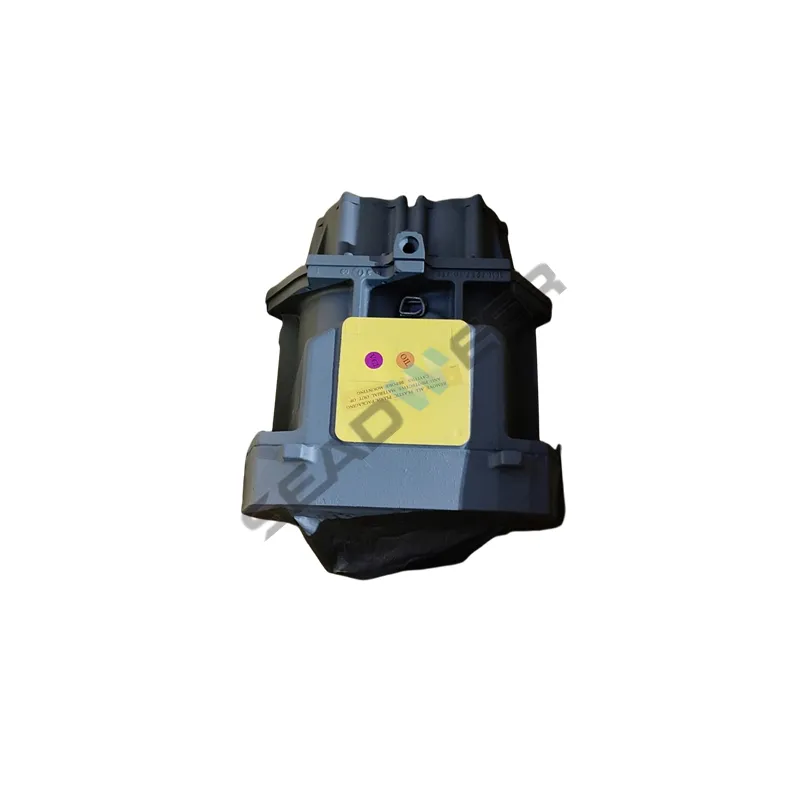

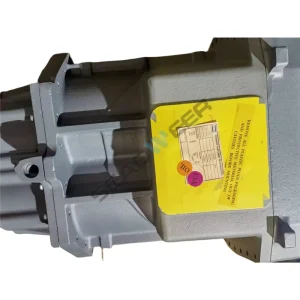

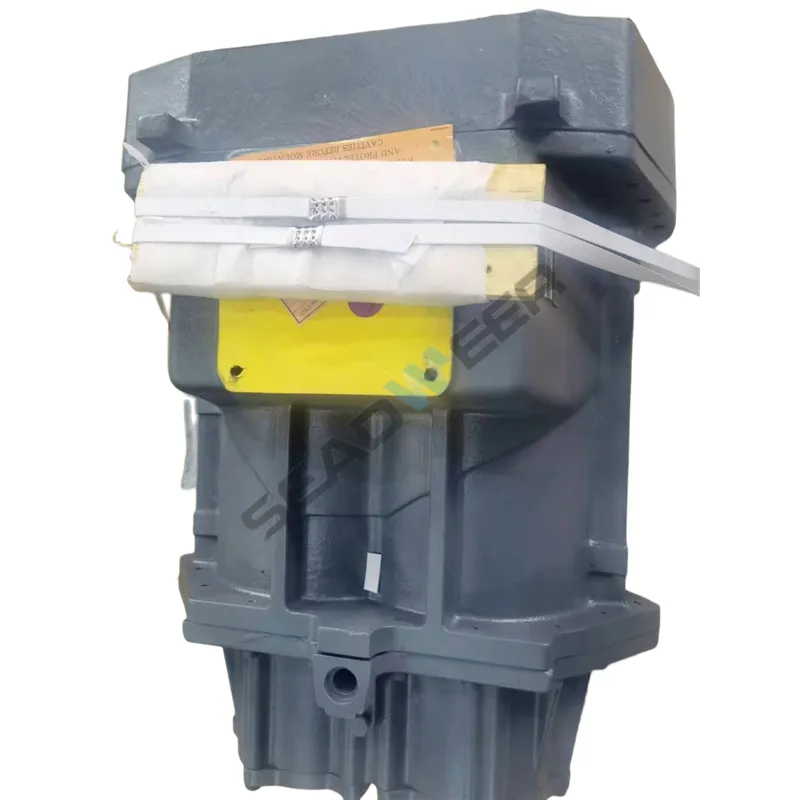

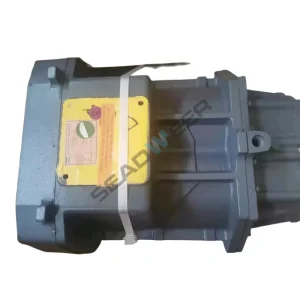

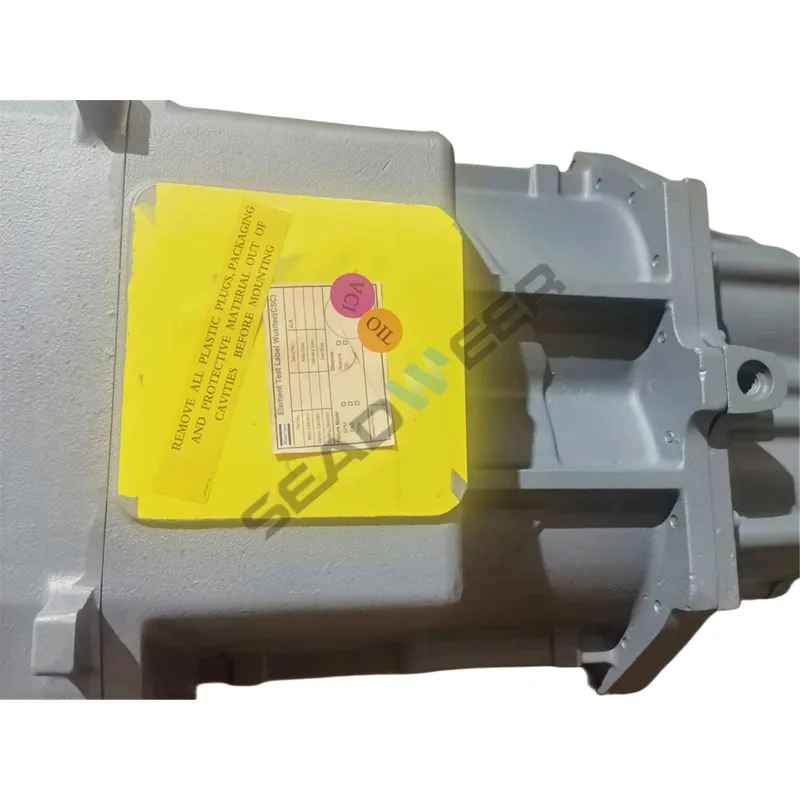

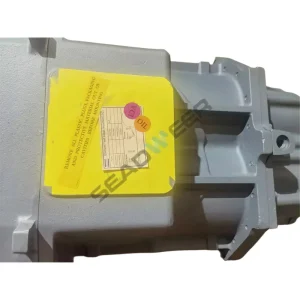

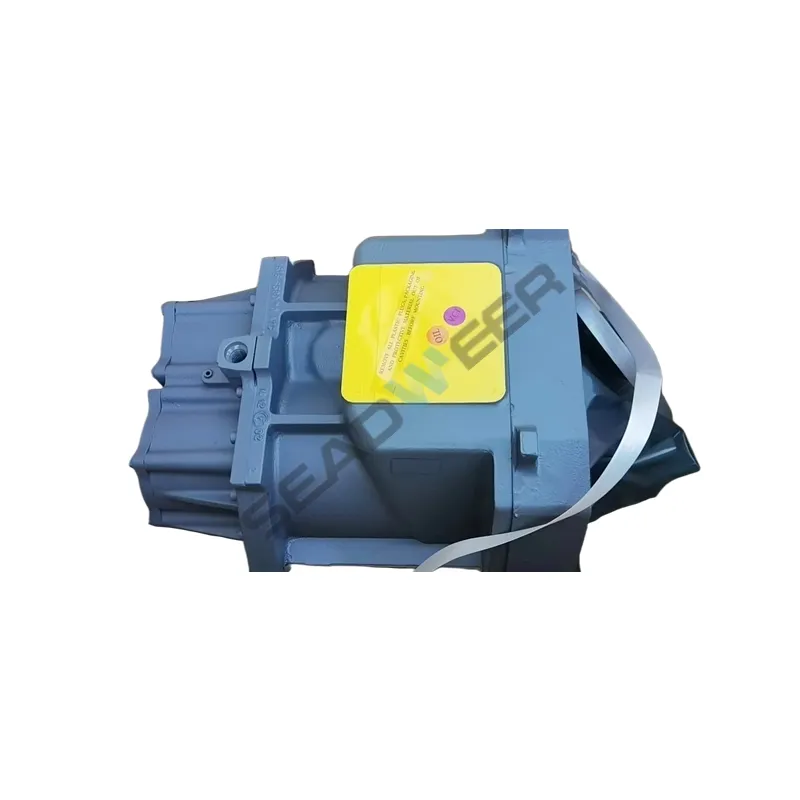

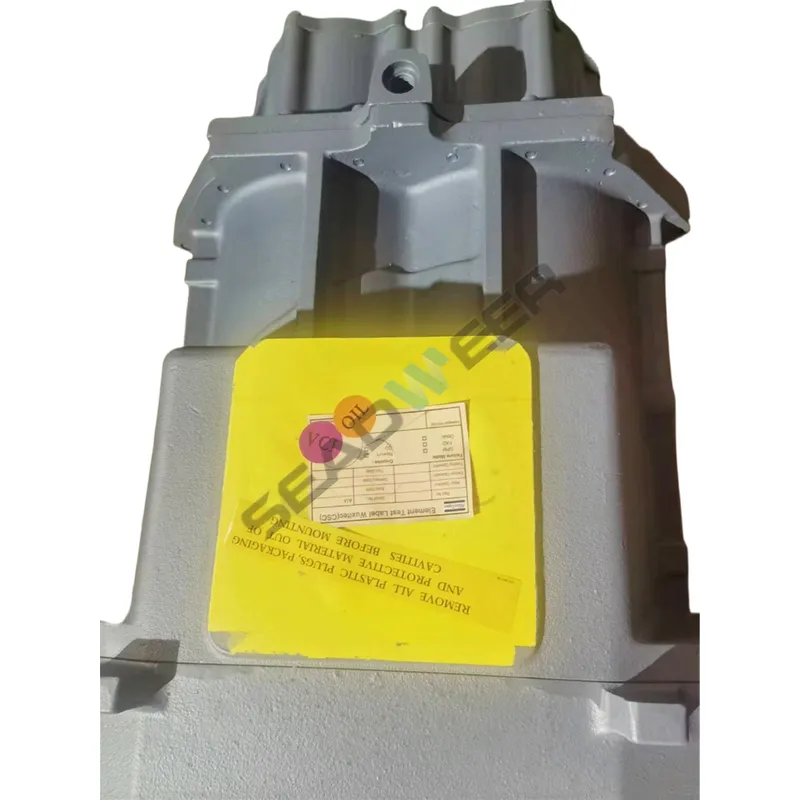

The Atlas Copco 1616725681 Air End is a genuine compressor element designed and manufactured by Atlas Copco, ensuring exceptional reliability and energy efficiency. As the heart of the air compressor, this air end plays a critical role in maintaining optimal performance and stable air delivery.
Supplied by Seadweer, an authorized distributor of Atlas Copco, this product guarantees 100% authenticity and compatibility with Atlas Copco air compressor systems. It is engineered for durability, precision, and long-term industrial use, making it the ideal choice for factories, workshops, and other demanding air compression environments.
The 1616725681 Air End incorporates an advanced rotor design and precision-machined components that minimize air leakage and mechanical loss, specifically for use in oil-injected screw compressors. It helps users achieve up to 30% higher efficiency compared to conventional compressor elements, ensuring low maintenance costs and consistent performance even under continuous operation.
Technical Specifications
| Specification | Value |
| Part Name | Air End / Compressor Element |
| Part Number | 1616725681 |
| Manufacturer | Atlas Copco |
| Distributor | Seadweer |
| Origin | Belgium |
| Type | Oil-injected Screw Compressor Element |
| Material | High-strength Alloy Steel |
| Lubrication | Oil-injected |
| Length | 80 cm |
| Width | 57 cm |
| Height | 46 cm |
| Application | GA Series Compressors |
| Tariff Code | 8414900090 |
| Net Weight | 340 kg |
| Gross Weight | 380 kg |
Product Advantages
High Efficiency:
The 1616725681 Air End improves energy efficiency by up to 30% over standard elements, thanks to its optimized rotor profiles and minimal internal leakage.
Long Service Life:
Made from premium-grade alloy steel and precision-balanced components, this air end provides 40% longer operating life, reducing downtime and extending maintenance intervals.
Low Noise and Vibration:
Advanced machining techniques and tight tolerances ensure smooth operation, resulting in reduced vibration and quieter performance during continuous operation.
Reliable Performance:
Each air end undergoes strict quality testing under Atlas Copco standards to guarantee reliable air delivery and performance stability, even in harsh environments.
Easy Installation and Maintenance:
The compact structure and integrated sealing system allow easy installation and minimal maintenance, helping users reduce servicing time by 20%.
FAQs
1. Is the 1616725681 Air End an original Atlas Copco part?
Yes, this air end is a 100% original Atlas Copco product supplied by authorized distributor Seadweer.
2. Which compressors are compatible with the 1616725681 Air End?
It compatibled with Atlas Copco GA Series oil-injected screw compressors. Contact Seadweer for model-specific compatibility.
3. What is the average service life of this air end?
Under standard operating conditions, it delivers a lifespan that is 40% longer than traditional compressor elements.
4. Can Seadweer provide after-sales support and technical guidance?
Yes. Seadweer offers full technical support, including installation guidance and post-sale assistance for all Atlas Copco parts.
5. What are the packaging and shipping options?
We ensure that each air end is securely packed in Atlas Copco original protective packaging and shipped globally with full tracking and insurance.
More Parts List
If you need other Atlas Copco air compressor parts, we provide more models in the table below or you can submit your requirements to us directly.
| Brand | PN | NEW PN | Application | Model NO. |
| AtlasCopco | 2989015800 | 1616646680 | GA30-45+50VSD | K25 |
| AtlasCopco | 1616738280 | 1616738290=1616738291 | GA18 ,GA26VSD+,GA22，GA26,GA30 | OIS I-01 C90 |
| AtlasCopco | 1616714681 | 1616714682=1616714692 | XAXS600/LUY160-17 | C146 |
| AtlasCopco | 1616706682 | 1616706690=1616706692 | G110.G132,G160,G200,G250,GA110,GA132,GA160,GA200，GA250 | C242 |
| AtlasCopco | 1616646680 | 2989015800 | GA30-45+50VSD | C106 |
| AtlasCopco | 1616578982 | 2989015401 | GA55+，GA75，GA90，GA110 | C77-C90 |
| AtlasCopco | 2236050100 | 2236050200 | GX1-2 | ATSL-165E |
| AtlasCopco | 1616765180 | 1616765190 | C80 | |
| AtlasCopco | 1616761280 | 1616761290 | XRVS1000 | C146 |
| AtlasCopco | 1616757780 | 1616757790 | LU30-45 | C90 |
| AtlasCopco | 1616757580 | 1616757590 | GA355-GA500 | C242 (New) |
| AtlasCopco | 1616754080 | 1616754090 | GA355-500 | C242 |
| AtlasCopco | 1616753582 | 1616753592 | C55 F09 | |
| AtlasCopco | 1616753580 | 1616753590 | C55 F09 | |
| AtlasCopco | 1616679281 | 1616747281 | ZR/ZT | C242 (New) |
| AtlasCopco | 1616740980 | 1616740990 | GA110-GA132 | C146 |
| AtlasCopco | 1616740881 | 1616740891 | C111 | |
| AtlasCopco | 1616734582 | 1616734592 | G110.G132,G160,G200,G250,GA110,GA132,GA160,GA200,GA250 | C190 |
| AtlasCopco | 1616734581 | 1616734591 | G110.G132,G160,G200,G250,GA110,GA132,GA160GA200 GA250 BLT160-275 | C190 |
| AtlasCopco | 1616728180 | 1616728190 | GA37+GA75 | C111 |
| AtlasCopco | 1616727181 | 1616727381 | Element HPT2 | |
| AtlasCopco | 1616725880 | 1616725890 | ||
| AtlasCopco | 1616725781 | 1616725791 | OIS-N-02 | |
| AtlasCopco | 1616528881 | 1616725691 | GA132 | C168 |
| AtlasCopco | 1616725681 | 1616725691 | GA110/GA132 /GA160/GA200/GA250/GA315 | C168 |
| AtlasCopco | 1616719480 | 1616719490 | XAS97-185 | K-38 |
| AtlasCopco | 1616714683 | 1616714693 | GA55+-75+-90/GA90VSD | 0IS-C146 |
| AtlasCopco | 1616710380 | 1616710390 | GX2-5 | OLS D-11 C40 |
| AtlasCopco | 1616671280 | 1616671290 | GA 15、GA 18、GA 22，etc | OIS H-06 |
| AtlasCopco | 1616657583 | 1616657593 | GA5-GA11C | 0IS F-05 C55 |
| AtlasCopco | 1616626081 | 1616626090 | ||
| AtlasCopco | 1616580381 | ZR400VSD,ZR500VSD,etc | OFS K-21 | |
| AtlasCopco | 1616590481 | ZR/ZT250 | OFS M-21 | |
| AtlasCopco | 1616585181 | ZR/ZT 90-160VSD | OFS G-21 | |
| AtlasCopco | 1616585187 | ZR/ZT | OFS G-27 | |
| AtlasCopco | 2989015900 | XRVS1000 | C106 | |
| AtlasCopco | 1616741883 | SF6+ | ||
| AtlasCopco | 1616734580 | GA160 | ||
| AtlasCopco | 1616528850 | GA110，GA132,GA160 |
