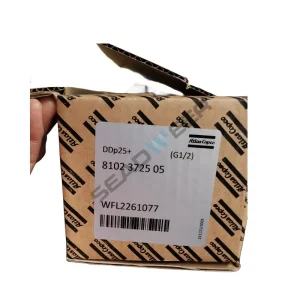

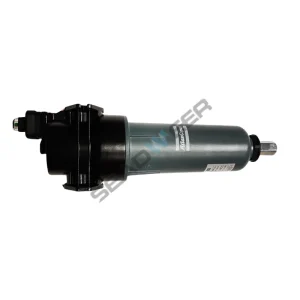

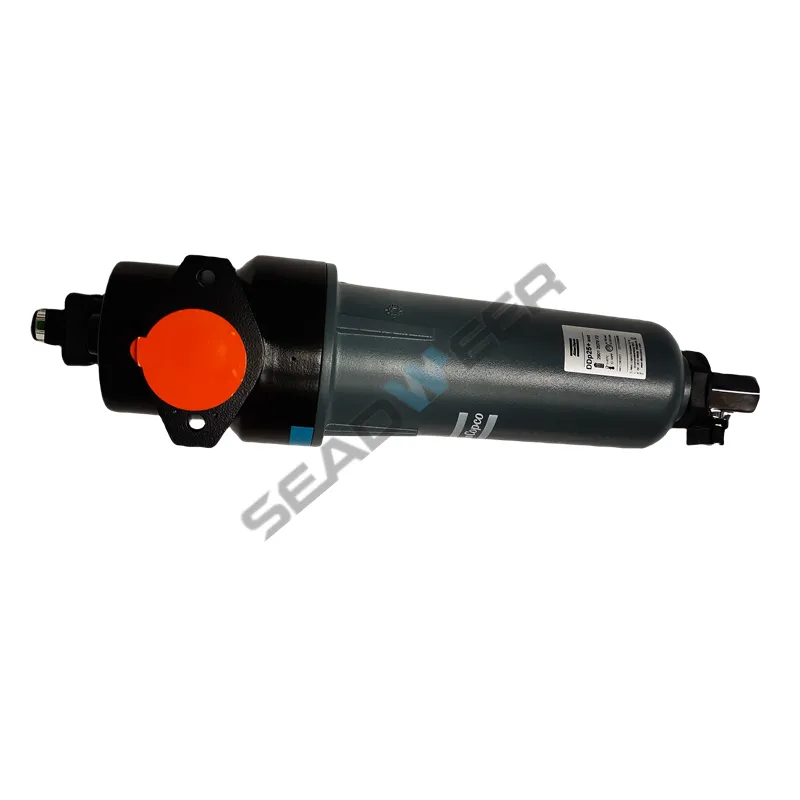

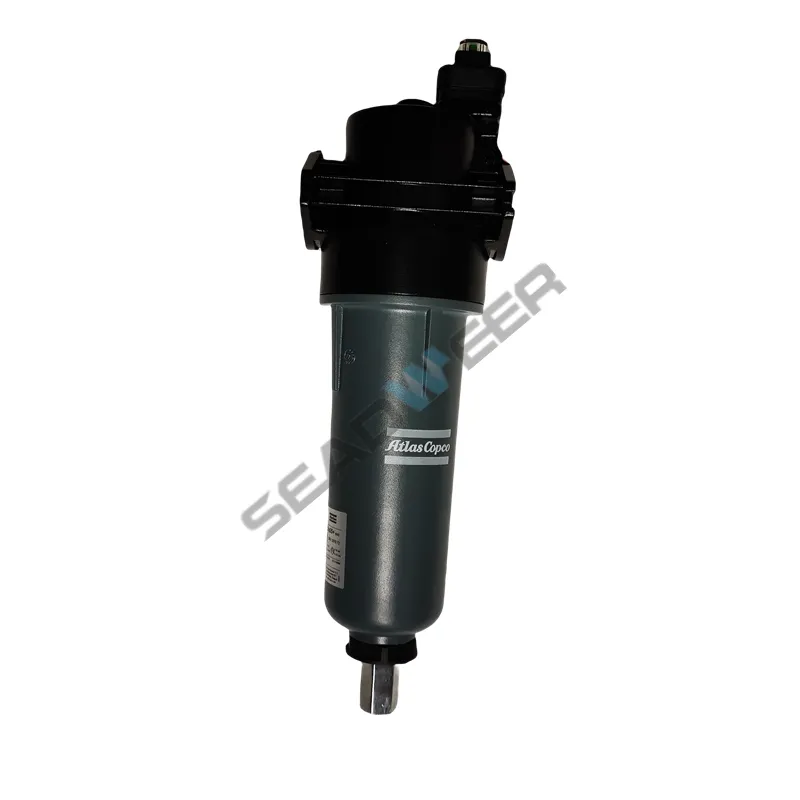

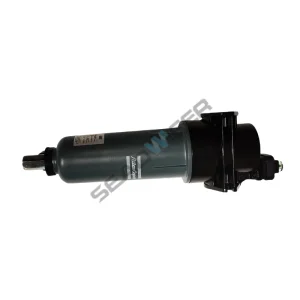

The Atlas Copco 8102372505 DDp 25+ Line Filter Assembly is engineered to deliver superior dust filtration in compressed air systems. As an authorized distributor, Seadweer supplies this original Atlas Copco filter, ensuring customers benefit from reliable performance and long-lasting efficiency.
This DDp+ line filter effectively captures particles as small as 0.01 µm with a proven efficiency of 99.93%, guaranteeing high-quality compressed air for general applications. With its optimized design, the filter minimizes pressure drops and supports energy savings throughout your system.
Built to comply with ISO 12500-1:2007 and ISO 8573-2:2007 standards, this filter ensures not only industry-leading purity but also reduced lifecycle costs. By preventing contamination, it protects downstream equipment and increases the overall reliability of your compressed air installation.
Technical Specifications
| Specification | Value |
| Product definition | |
| Flanged connection | G 1/2″ |
| inPASS | No |
| Data on dataplate | |
| Maximum air inlet temperature | 50 °C |
| Dimensions | |
| Weight | 1 kg |
| Installation connections | |
| Compressed air outlet connections | 1/2″ |
| Limitations | |
| Maximum ambient temperature | 50 °C |
| Maximum compressed air inlet pressure | 16 bar(g) |
| Minimum ambient temperature | 1 °C |
| Performance data | |
| Nominal volume flow at filter inlet | 25 l/s |
| Quality class of air at outlet | 2:-:- |
| Reference conditions | |
| Air inlet temperature | 20 °C |
| Compressed air inlet effective pressure | 7 bar(g) |
| Cooling medium inlet temperature | 20 °C |
| Unit data | |
| Number of filter elements | 1 |
Key Advantages
- Dust protection efficiency up to 99.93% for particles down to 0.01 µm.
- Reduced pressure drops, improving system energy efficiency.
- Extended equipment life due to cleaner compressed air.
- Fully compliant with ISO 12500-1:2007 and ISO 8573-2:2007 standards.
- Designed to minimize lifecycle costs while maximizing reliability.
FAQs
Q1: What type of contaminants does the DDp 25+ filter remove?
A1: It is designed to remove dust particles as small as 0.01 µm with an efficiency of 99.93%, protecting your system from harmful dry dust.
Q2: What is the maximum working pressure for this filter?
A2: The filter can handle compressed air inlet pressures up to 16 bar(g).
Q3: Can this filter be used in high-temperature environments?
A3: Yes, it operates effectively at ambient and inlet temperatures up to 50 °C.
Q4: How does the DDp+ filter save energy?
A4: Its optimized design minimizes pressure drop, reducing the energy consumption of the compressed air system.
Q5: Is the DDp 25+ filter compatible with ISO air quality standards?
A5: Yes, it complies with ISO 12500-1:2007 and ISO 8573-2:2007, ensuring industry-leading air purity.
More DDp Filters List
| Part Number | Part Name | Part-Number |
| 3001527000 | FILTER KIT DD/DDP550+ F | 3001-5270-00 |
| 3001527004 | FILTER KIT DD/DDP630 F | 3001-5270-04 |
| 3001527009 | FILTER KIT DD/DDP 850+/1800+ | 3001-5270-09 |
| 3001527012 | FILTER KIT DD/DDP 1100+/5000+ | 3001-5270-12 |
| 3001527015 | FILTER KIT DD/DDP 1400+/300 | 3001-5270-15 |
| 3001527018 | FILTER KIT DD/DDP 2200+/ | 3001-5270-18 |
| 3001527021 | FILTER KIT DD/DDP 970/2200 F | 3001-5270-21 |
| 3001527024 | FILTER KIT DD/DDP 1260 F | 3001-5270-24 |
| 3001527027 | FILTER KIT DD/DDP 1600/3600 F | 3001-5270-27 |
| 3001527030 | FILTER KIT DD/DDP 2400 F | 3001-5270-30 |
| 8092267801 | SERVICE KIT DD/DDP 4000F | 8092-2678-01 |
| 8092267811 | SERVICE KIT DD/DDP 5000F | 8092-2678-11 |
| 8092267821 | SERVICE KIT DD/DDP 6000F | 8092-2678-21 |
| 8092267831 | SERVICE KIT DD/DDP 7000F | 8092-2678-31 |
| 8092267841 | SERVICE KIT DD/DDP 8000F | 8092-2678-41 |
| 2904500038 | SPARE EL KIT DD/DDP2 | 2904-5000-38 |
| 2904500023 | SPARE EL KIT DD/DDP4 | 2904-5000-23 |
| 2904500020 | SPARE EL KIT DD/DDP3 | 2904-5000-20 |
| 2904500014 | SPARE EL KIT DD/DDP9 | 2904-5000-14 |
| 1901060858 | HDDP305 AIR FILTER | 1901-0608-58 |
| 1901061120 | HDDP305 CARTRIDGE MICROFILTER | 1901-0611-20 |
| 1901061688 | HDDP970 CARTRIDGE MICROFILTER | 1901-0616-88 |
| 1901061758 | HDDP490 CARTRIDGE MICROFILTER | 1901-0617-58 |
| 1901062055 | HDDP160 CARTRIDGE MICROFILTER | 1901-0620-55 |
| 1901062059 | HDDP1140 AIR FILTER | 1901-0620-59 |
| 1901062060 | HDDP1140 CARTRIDGE MICROFILTER | 1901-0620-60 |
| 1901062064 | HDDP1415 CARTRIDGE MICROFILTER | 1901-0620-64 |
| 1901062068 | HDDP1720 CARTRIDGE MICROFILTER | 1901-0620-68 |
| 1901066388 | PIPE (HTA3000 TO HDDP970) | 1901-0663-88 |
| 1901903522 | HDDP200 KIT 鈥 | 1901-9035-22 |
| 1901903526 | HDDP900 KIT 鈥 | 1901-9035-26 |
| 1901903528 | HDDP1900 KIT 鈥 | 1901-9035-28 |
| 1901903529 | HDDP410 KIT 鈥 | 1901-9035-29 |
| 1629053914 | FILT. EL. DD/DDP 630 F | 1629-0539-14 |
| 1629053915 | FILT. EL. DD/DDP 970-3600 F | 1629-0539-15 |
| 1629053916 | FILT. EL. DD/DDP 630 F | 1629-0539-16 |
| 1629053917 | FILT. EL. DD/DDP 970-3600 F | 1629-0539-17 |
| 1629054714 | FILT. EL. DD/DDP 850-8000+ F | 1629-0547-14 |
| 1629054715 | FILT. EL. DD/DDP 550+ F | 1629-0547-15 |
| 1629054716 | FILT. EL. DD/DDP 780-3150+ F | 1629-0547-16 |
