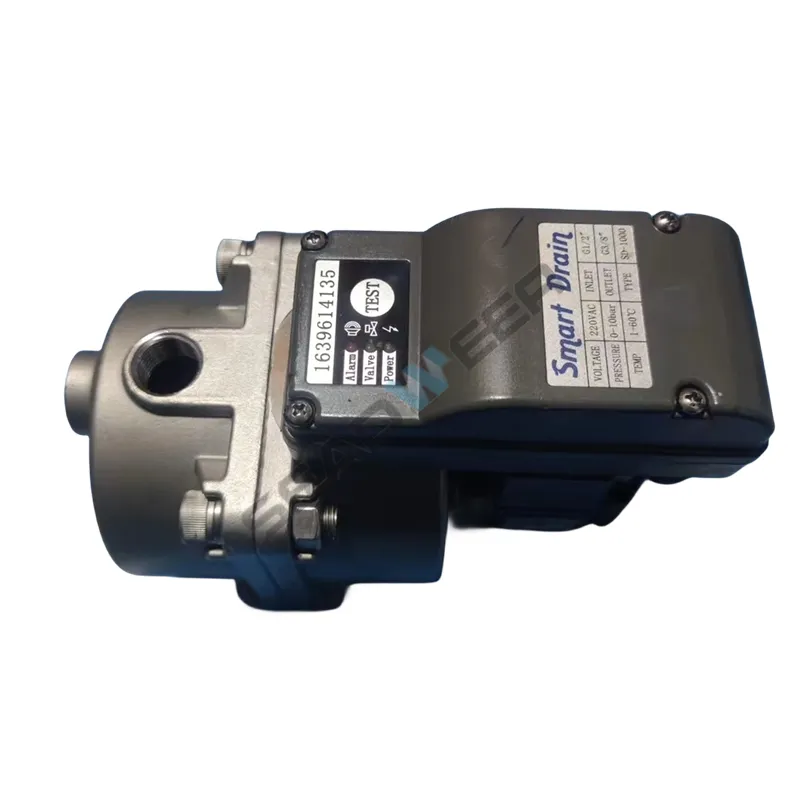

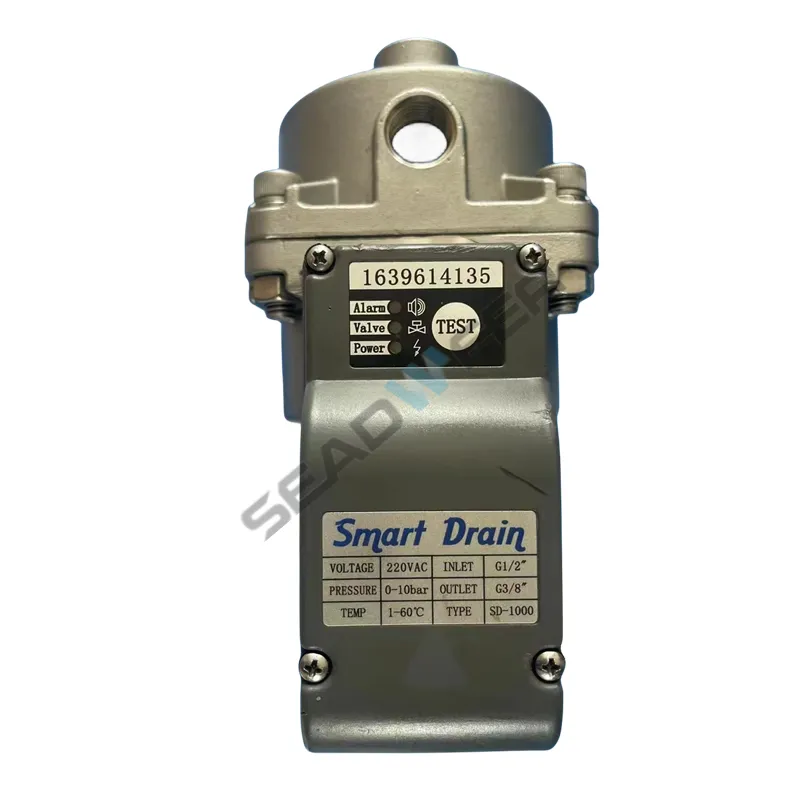

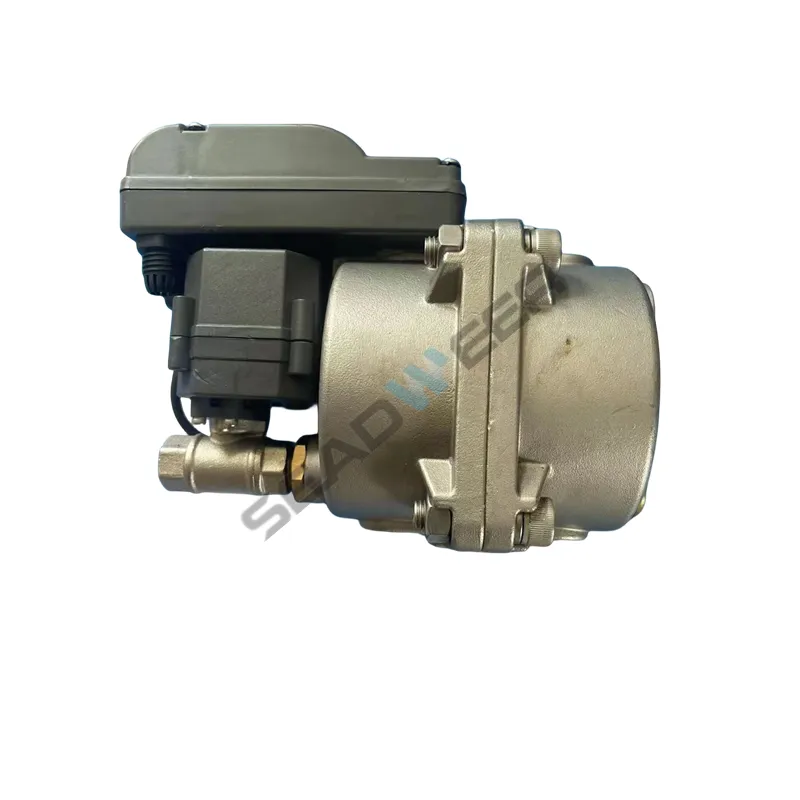

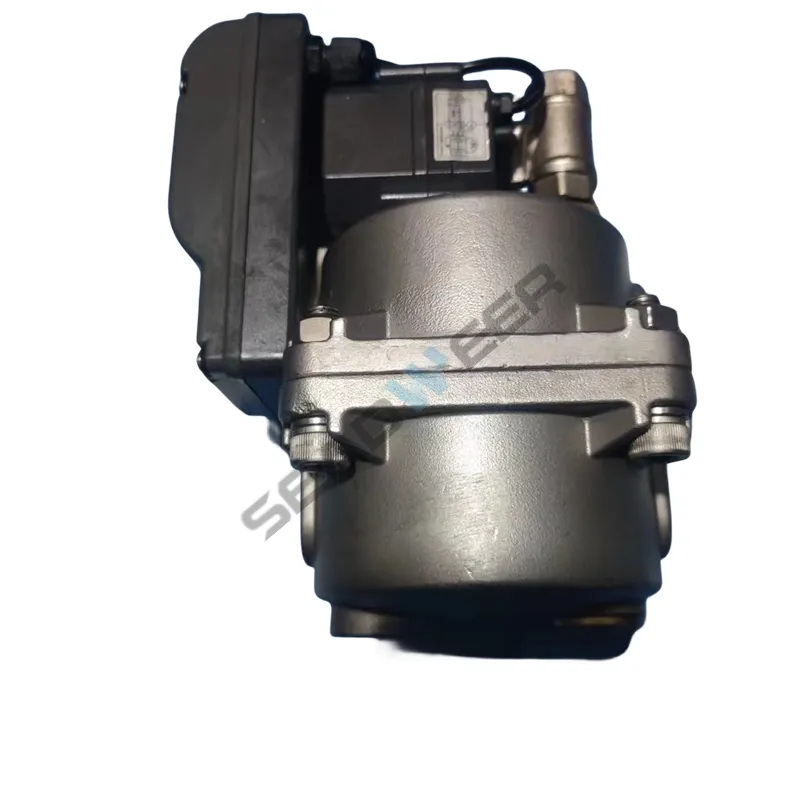

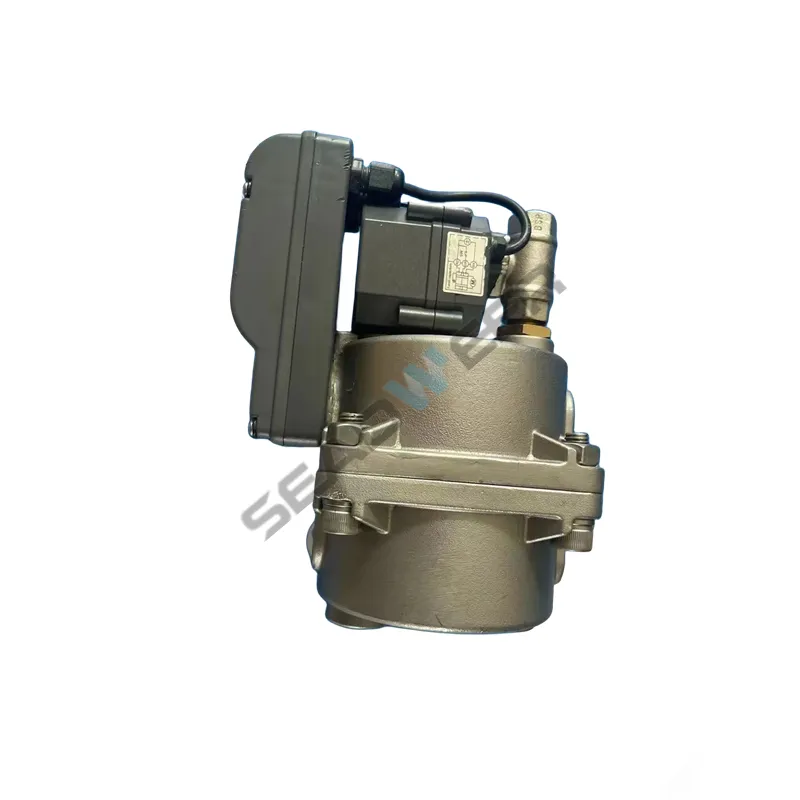

Seadweer as an authorized distributor of Atlas Copco, supplies the brand new and original Atlas Copco 1639614135=1639614142 JORC SD1000 Automatic Drain Valve. This reliable component is essential for maintaining the efficiency and longevity of compressed air systems by automatically removing accumulated condensate. Designed for durability and precision, the SD1000 ensures your operations run smoothly, preventing water-related damage and contamination in downstream equipment.
Technical Specifications
| Parameter | Specification |
| Part Number | 1639614135 = 1639614142 |
| Origin | Netherlands (NL) |
| Tarrif Code | 84818099 |
| Operating Voltage | 220 VAC |
| Operating Pressure Range | 0 – 10 bar |
| Operating Temperature Range | 1°C – 60°C |
| Inlet Connection | G1/2” |
| Outlet Connection | G3/8” |
| Model Type | SD-1000 |
Product Advantages
The SD1000 Drain Valve delivers significant benefits for compressed air system management. Its automatic operation eliminates the need for manual draining, saving time and labor costs while ensuring consistent condensate removal. The valve features a sturdy construction suitable for a wide pressure range, guaranteeing reliable performance under varying conditions. With its 100% automatic duty cycle, it minimizes the risk of human error and prevents corrosion and freezing in air receivers, dryers, and filters. This proactive maintenance tool enhances overall air quality, protects valuable tools and machinery, and contributes to energy savings by maintaining system efficiency.
FAQs
What is the primary function of the SD1000 valve?
It automatically discharges condensate from compressed air system components like receivers, dryers, and filters, ensuring dry, clean air and preventing corrosion.
Is the valve suitable for outdoor installation?
Yes, its operational temperature range of 1°C to 60°C allows for installation in various environments, though protective enclosures are recommended in extreme conditions.
How does the automatic feature work?
The electrically operated valve opens at preset intervals and for a configurable duration, expelling condensate without requiring manual intervention.
Can this valve be installed on any tank?
It is compatible with tanks featuring a standard G1/2” female inlet port. Always verify your equipment’s connection size and pressure rating before installation.
What maintenance does the SD1000 require?
Regular inspection of the outlet and internal components for debris is advised to ensure optimal performance. Its design prioritizes long service life with minimal upkeep.
More Drain Valves List
If you need other Atlas Copco air compressor drain valves, we provide more models in the table below or you can submit your requirements to us directly.
| Part Number | Part Name | Part-Number |
| 2235790414 | FLEXIBLE MOTOR DRAIN | 2235-7904-14 |
| 2235871200 | N/C DRAIN VALVE FILTERS-WCO | 2235-8712-00 |
| 2235872600 | DRAIN ADAPTOR KIT | 2235-8726-00 |
| 2235874023 | OIL DRAIN FLEXIBLE | 2235-8740-23 |
| 2236017670 | SOLENOID TIMER DRAIN | 2236-0176-70 |
| 2236017671 | SOLENOID TIMER DRAIN | 2236-0176-71 |
| 2236100914 | EXTENSION DRAIN OIL MM90 MF M6 | 2236-1009-14 |
| 8070226108 | KIT, INTERCOOLER DRAIN | 8070-2261-08 |
| 8070225605 | KIT, AUTOMATIC AIR RECEIVER DRAIN (SIZE 5- | 8070-2256-05 |
| 6210717700 | DRAIN COCK, 3/8″ | 6210-7177-00 |
| 2901159201 | MAN. DRAIN KIT FF | 2901-1592-01 |
| 2901159200 | MAN. DRAIN KIT P | 2901-1592-00 |
| 2900522700 | DRAIN | 2900-5227-00 |
| 2236109757 | TANK DRAIN, 3/8 | 2236-1097-57 |
| 2236105583 | OIL DRAIN TUBE, T29S | 2236-1055-83 |
| 2236105498 | DRAIN, TANK, OL50135 | 2236-1054-98 |
| 2236105496 | DRAIN COCK, 1/4 | 2236-1054-96 |
| 2236100782 | GASKET, OIL DRAIN, B | 2236-1007-82 |
| 2236100592 | PLUG, DRAIN, OIL | 2236-1005-92 |
| 2236100583 | OIL DRAIN PLUG, T29S | 2236-1005-83 |
| 2202754702 | ELEC.DRAIN.ED12 115/ | 2202-7547-02 |
| 2202744002 | ELECTR DRAIN | 2202-7440-02 |
| 1624272601 | DRAIN | 1624-2726-01 |
| 1622667982 | DRAIN AUTOMATIC | 1622-6679-82 |
| 1622374000 | DRAIN NIPPLE | 1622-3740-00 |
| 1621682301 | DRAIN | 1621-6823-01 |
| 1621682300 | DRAIN | 1621-6823-00 |
| 1621682200 | DRAIN | 1621-6822-00 |
| 1621079180 | DRAIN | 1621-0791-80 |
| 1619345500 | VALVE-DRAIN | 1619-3455-00 |
| 1614059700 | LINE-DRAIN | 1614-0597-00 |
| 1612358480 | VALVE-DRAIN | 1612-3584-80 |
| 1312100361 | DRAIN COCK | 1312-1003-61 |
| 1312100360 | DRAIN COCK | 1312-1003-60 |
| 1621954600 | DRAIN | 1621-9546-00 |
| 1622179915 | CABLE POWER DRAIN | 1622-1799-15 |
| 1622179917 | CABLE POWER DRAIN | 1622-1799-17 |
| 1622179918 | CABLE POWER DRAIN | 1622-1799-18 |
| 1622192500 | FLANGE (DRAIN) | 1622-1925-00 |
| 1622355200 | OILVESSEL DRAIN BLOCK | 1622-3552-00 |
| 1622379885 | DRAIN ASSEMBLY Z 2006 | 1622-3798-85 |
| 1622493680 | DRAIN | 1622-4936-80 |
| 1622493681 | DRAIN | 1622-4936-81 |
| 1622611900 | SUPPORT TIMER DRAIN | 1622-6119-00 |
| 1622612100 | SUPPORT TIMER DRAIN TM | 1622-6121-00 |
| 1622660500 | DRAIN PLATE | 1622-6605-00 |
| 1622904900 | NIPPLE DRAIN | 1622-9049-00 |
| 1622905000 | NIPPLE DRAIN | 1622-9050-00 |
| 1622972800 | MECHANICAL DRAIN | 1622-9728-00 |
| 1623068500 | DRAIN | 1623-0685-00 |
