Atlas CopCo Airnet 2811520780 D50-25 Reducing Tee

Efficiently distributing compressed air throughout an industrial facility is just as important as generating it. A poorly designed or constructed piping system can lead to significant energy losses, pressure drop, and contamination issues, directly impacting the performance and lifespan of pneumatic tools and machinery. Traditional piping materials often suffer from corrosion, leading to system degradation and leaks over time. Recognizing these challenges, Atlas Copco developed the innovative Airnet piping system, specifically engineered for compressed air distribution. This modular, lightweight, and corrosion-resistant system provides a superior alternative. Within the Airnet system, fittings play a crucial role in directing air flow and creating the necessary network layout. The Atlas Copco Airnet 2811520780 D50-25 Reducing Tee is a specific, essential component used for creating branching points and transitioning pipe sizes within this system. Moreover, sourcing this genuine fitting from a professional supplier like Seadweer ensures the integrity and performance of your Airnet installation.

Understanding Compressed Air Piping Systems

The piping network is the circulatory system of any compressed air setup. Its primary function is to transport air from the compressor to the point of use with minimal loss of pressure or quality. However, poorly chosen materials or improperly installed fittings can severely compromise system performance. Leaks, for instance, are a major source of wasted energy in compressed air systems, often costing companies thousands annually. Friction within the pipes and fittings causes pressure drop, reducing the power available at the tools. Furthermore, traditional metal pipes can rust and scale, introducing corrosive particles and moisture into the air stream, which damages sensitive equipment. Therefore, selecting a high-quality piping system designed for compressed air is fundamental to operational efficiency and cost savings.

The Atlas Copco Airnet System Advantage

The Atlas Copco Airnet system offers a state-of-the-art solution for compressed air distribution. Constructed from lightweight, marine-grade aluminum, the system is inherently resistant to corrosion, both internally from moisture in the air and externally. This prevents contamination and ensures consistent air quality. Airnet utilizes a unique, quick-connect technology that makes installation significantly faster and simpler compared to welded or threaded steel pipes. Its modular design allows for easy modifications, expansions, or disassemblies, providing flexibility for changing facility layouts. Moreover, the smooth internal bore of Airnet pipes and the precise design of its fittings minimize turbulence and pressure drop, maximizing energy efficiency throughout the network. The system supports a wide range of pressures and is suitable for various industrial applications.

Focus on the 2811520780 D50-25 Reducing Tee

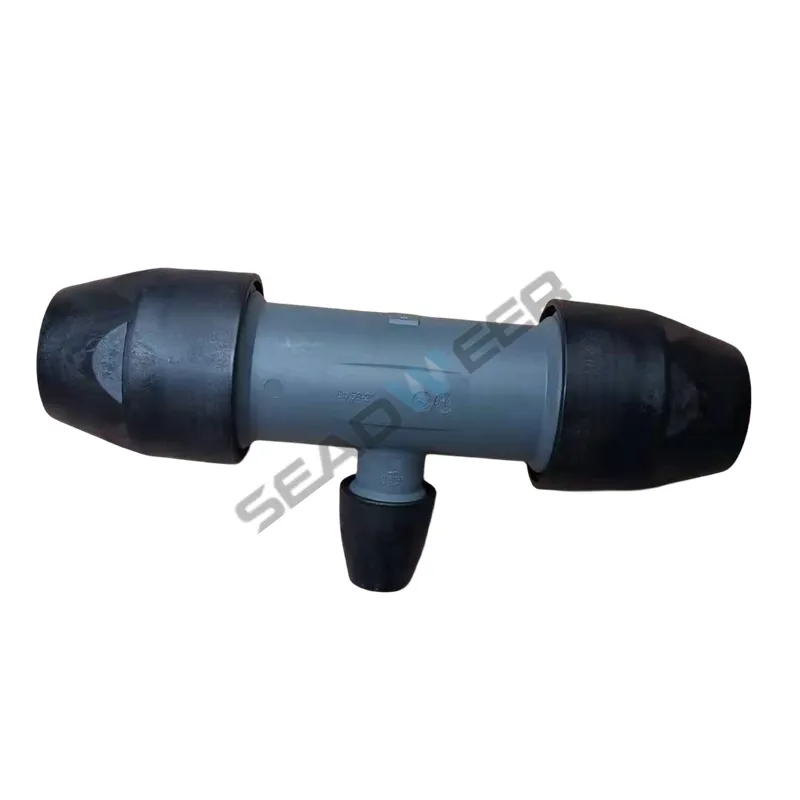

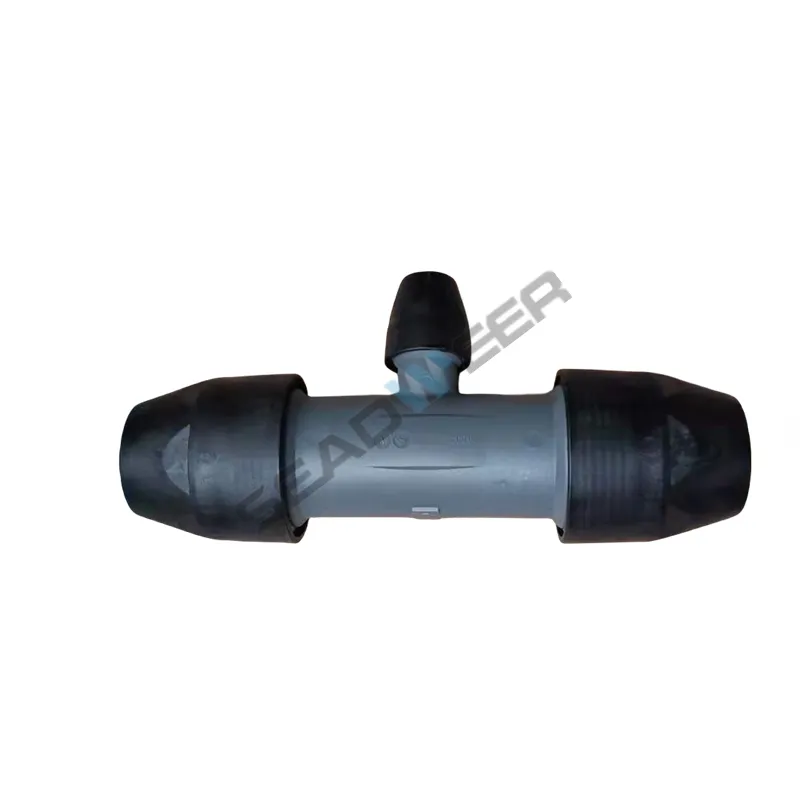

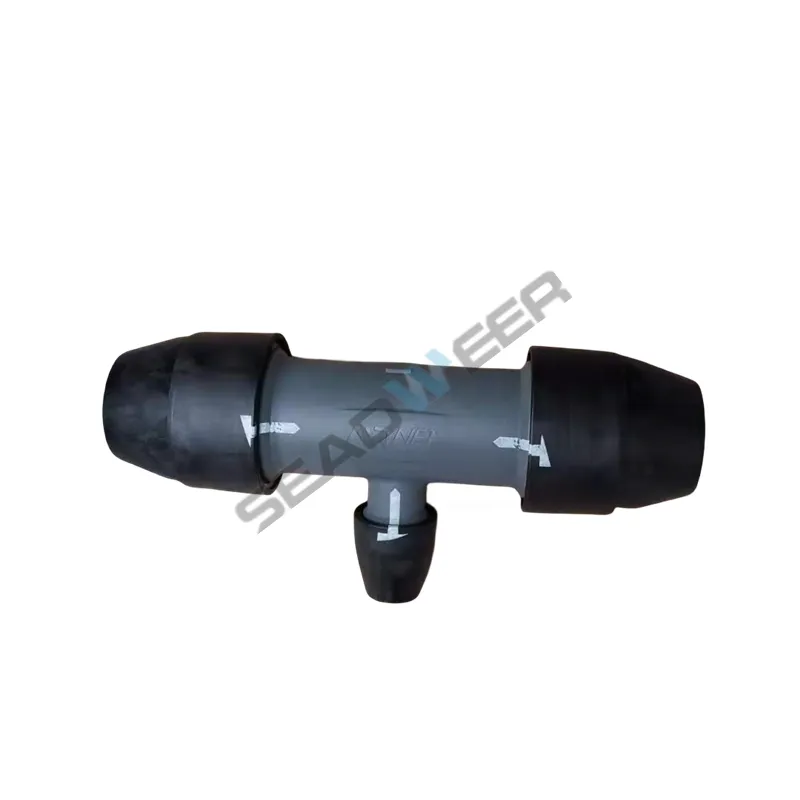

The Atlas Copco Airnet 2811520780 D50-25 Reducing Tee is a specialized fitting that enables branching from a 50mm main pipe (D50 run) to a 25mm outlet (D25 branch). Designed for Airnet compressed air systems, it optimizes distribution by using larger headers to reduce pressure drop over long runs while allowing smaller branch lines to serve low-flow endpoints like equipment stations. This original component ensures leak-free transitions between pipe sizes through precision engineering compatible with Airnet’s modular architecture. The design balances airflow efficiency with space-saving branch connections in industrial pneumatic networks.

Why Genuine Airnet Fittings Matter

Using genuine Atlas Copco Airnet fittings, specifically the 2811520780 D50-25 Reducing Tee, is crucial for maximizing the benefits of your Airnet system. Original Airnet fittings are engineered with precision tolerances to ensure a perfect seal with Airnet pipes. The quick-connect mechanism is designed for reliability and ease of use, providing a secure connection that resists vibration and pressure fluctuations. Non-original fittings might appear similar, but they can have subtle differences in dimensions, material composition, or sealing mechanisms. Consequently, these discrepancies can lead to leaks, difficulty in installation, reduced system pressure, and a shorter lifespan for the fitting and potentially the entire system. Original Airnet components undergo rigorous testing to meet Atlas Copco’s high standards for pressure rating, temperature resistance, and durability. Therefore, insisting on genuine fittings like the 2811520780 ensures the safety, reliability, and efficiency of your compressed air network.

Key Benefits and Advantages

Incorporating the genuine Atlas Copco Airnet 2811520780 D50-25 Reducing Tee, as part of a full Airnet system, delivers several significant advantages for your compressed air distribution. These benefits translate directly into operational savings, improved performance, and enhanced system longevity.

• Superior Leak Prevention: Compared to traditional threaded or welded systems, the Airnet quick-connect fittings drastically reduce potential leak points, leading to up to 80% less air leakage across the system.
• Rapid Installation: The quick-connect design of Airnet fittings allows for faster assembly, reducing installation time for components like tees by up to 70% compared to conventional methods.
• Minimized Pressure Drop: The smooth bore and optimized design of genuine Airnet fittings contribute to lower flow resistance, helping to maintain system pressure and improve overall energy efficiency by up to 5%.
• Enhanced Durability: Constructed from corrosion-resistant aluminum alloys, the fittings resist degradation from moisture, increasing the component lifespan by up to 50% compared to fittings made from corrodible materials like steel.
• Reliable Connectivity: Engineered specifically for the Airnet pipe and system, the 2811520780 tee provides a highly reliable connection point, contributing to a leak-free system reliability of 99.999%.

Ensuring System Integrity and Efficiency

The integrity and efficiency of a compressed air system depend heavily on the quality of every connection point. The 2811520780 D50-25 Reducing Tee is a critical juncture where a main line reduces in size to a branch. Using an original Airnet fitting at this point ensures a robust, leak-tight seal that will not degrade over time due to rust or vibration. Preventing leaks at fittings saves energy that would otherwise be wasted by the compressor running longer to compensate. Maintaining minimal pressure drop through correctly sized and smooth-bore fittings ensures that tools and machinery receive the air flow and pressure they require to operate effectively. Thus, selecting the genuine 2811520780 reducing tee is an important decision that contributes directly to the long-term performance, efficiency, and reliability of your entire compressed air distribution network.

Technical Specifications

Understanding the technical specifications of the Atlas Copco Airnet 2811520780 D50-25 Reducing Tee confirms its suitability for demanding compressed air applications. These parameters highlight the fitting’s robust construction and performance capabilities as an integral part of the Airnet system.

Frequently Asked Questions

Here are some common questions regarding the Atlas Copco Airnet 2811520780 D50-25 Reducing Tee:

What is the primary function of the 2811520780 fitting?

This fitting is used to create a branch line connection from a main compressed air pipe, specifically transitioning from a larger D50 (50mm) pipe to a smaller D25 (25mm) pipe.

What pipe sizes does this reducing tee accommodate?

The 2811520780 D50-25 tee connects Airnet pipe with approximately 50mm outer diameter (D50) on the through-ports to Airnet pipe with approximately 25mm outer diameter (D25) on the branch port.

Why is it important to use original Atlas Copco Airnet fittings like the 2811520780?

Using original fittings ensures perfect compatibility with Airnet pipe, reliable leak-free connections, high durability, and maintains the pressure and temperature ratings of the system as designed by Atlas Copco.

Is the 2811520780 fitting easy to install?

Yes, as part of the Airnet system, this fitting utilizes a quick-connect push-to-fit design that allows for fast and simple installation without the need for threading, welding, or complex tools.

Where can I purchase the genuine Atlas Copco Airnet 2811520780 D50-25 Reducing Tee?

You can purchase this authentic Airnet fitting and other original Atlas Copco parts from trusted professional suppliers specializing in genuine compressed air equipment components, such as Seadweer.

More Atlas Copco Airnet Parts List

The Atlas Copco Airnet 2811520780 D50-25 Reducing Tee is a high-quality, essential component of the innovative Airnet compressed air piping system. Its specific design allows for efficient and reliable creation of reduced-size branch lines from a larger main, contributing to optimized system layout and performance. By choosing this genuine Atlas Copco fitting, you leverage the benefits of the Airnet system, including superior leak prevention, ease of installation, and long-term durability. Sourcing this and other original Airnet components from a reputable supplier like Seadweer ensures you receive authentic parts engineered for peak performance. Investing in genuine Airnet fittings is investing in the efficiency, reliability, and longevity of your compressed air distribution network.

Ready to build or expand your high-performance compressed air network with reliable components?

Ensure system integrity and efficiency by choosing genuine Atlas Copco Airnet fittings. Contact Seadweer today to inquire about the Atlas Copco Airnet 2811520780 D50-25 Reducing Tee and explore their range of authentic Airnet products.
