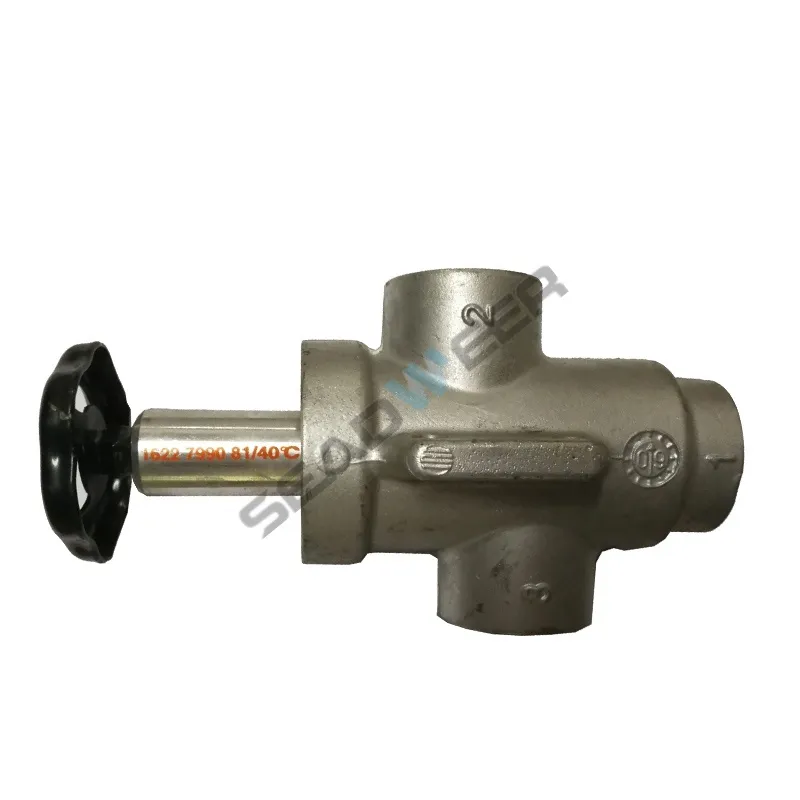

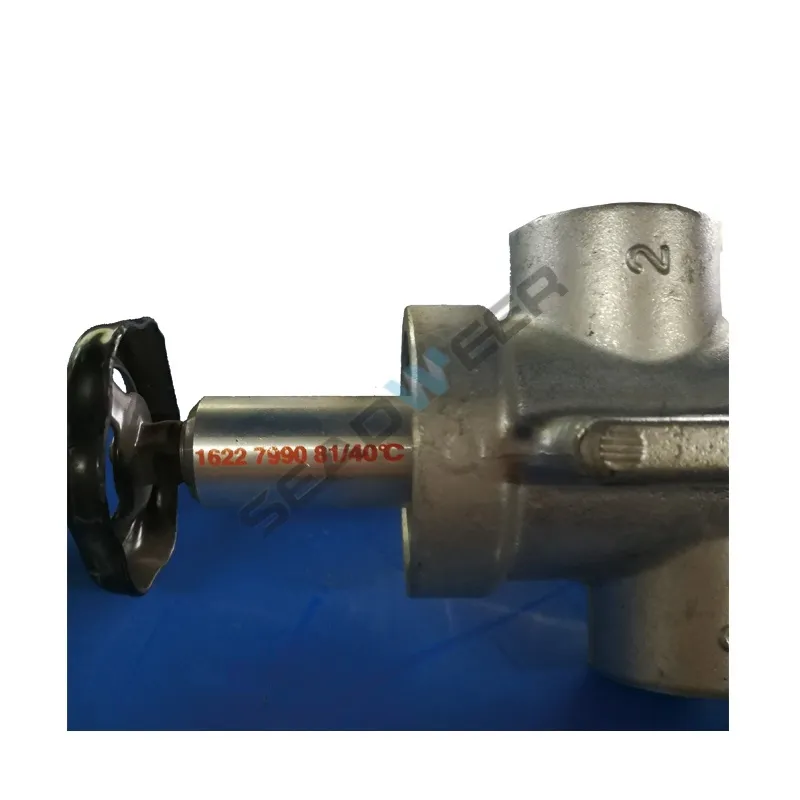

Energy recovery systems represent a significant advancement in Atlas Copco air compressor technology. Indeed, these systems offer substantial savings by capturing and reusing waste heat. Central to the effective operation of these systems is a specialized component: the Atlas Copco 1622799081 Energy Recovery Thermostatic Valve. This valve plays a crucial role in intelligently managing the flow of heat within the compressor. Consequently, it maximizes the amount of energy reclaimed, directly impacting operational costs and sustainability. Understanding this valve is therefore key to leveraging the full potential of Atlas Copco’s energy recovery solutions.
Contents
- 1 Understanding Energy Recovery Systems in Atlas Copco Compressors
- 2 The Pivotal Role of the 1622799081 Thermostatic Valve in Heat Capture
- 3 Key Advantages of Utilizing the 1622799081 Energy Recovery Valve
- 4 Technical Specifications of the 1622799081 Thermostatic Valve
- 5 Compatibility Guide: Matching the 1622799081 Valve with Atlas Copco Models
- 6 Ensuring Effective Energy Recovery: Maintenance and Valve Condition
- 7 Frequently Asked Questions (FAQs)
- 8 Conclusion: Unlocking Savings with the 1622799081 Valve
Understanding Energy Recovery Systems in Atlas Copco Compressors
Air compression naturally generates a significant amount of heat, primarily within the compression element and the oil cooling circuit. Traditionally, systems dissipate this heat into the atmosphere through cooler. However, Atlas Copco’s Energy Recovery (ER) units capture this valuable thermal energy. Typically, they use heat exchangers to transfer the heat from the compressor’s hot oil or coolant to another medium, like water. Facilities can then use this heated water for space heating, industrial processes, or sanitary purposes. As a result, this dramatically reduces the need to generate that heat using separate boilers or heaters, leading to substantial energy savings.
The Pivotal Role of the 1622799081 Thermostatic Valve in Heat Capture
The 1622799081 thermostatic valve functions specifically within the energy recovery circuit of the compressor. Unlike a standard thermostatic valve focused solely on maintaining the compressor’s own operating temperature, this valve prioritizes efficient heat transfer to the recovery unit. Specifically, it senses the temperature of the hot medium (usually oil). When the temperature is high enough to provide useful heat, the valve directs a significant portion of this hot fluid towards the energy recovery unit’s heat exchanger. Conversely, if the temperature is too low, or if the primary cooling needs take precedence, the valve adjusts the flow accordingly. Therefore, the 1622799081 intelligently modulates flow to ensure maximum heat is captured whenever viable, without compromising the compressor’s own thermal stability.
Key Advantages of Utilizing the 1622799081 Energy Recovery Valve
A properly functioning 1622799081 valve is fundamental to realizing the full benefits of an Atlas Copco Energy Recovery system. Its primary advantage is enabling maximized heat recovery. Efficient valve operation facilitates the capture of up to 75%, or sometimes even more, of the compressor’s electrical energy input in the form of usable hot water. Furthermore, its precise control helps optimize overall system performance. It ensures both the main compressor cooling system and the energy recovery unit operate harmoniously, potentially improving the integrated system’s balance by 10%. Most importantly, this recovered heat directly translates into significantly reduced operating costs. Facilities can potentially cut their water heating expenses by 50% or more by utilizing this ‘free’ energy source. Additionally, reducing reliance on traditional heating methods significantly enhances sustainability by lowering the facility’s carbon footprint.
Technical Specifications of the 1622799081 Thermostatic Valve
Understanding the technical details of the 1622799081 valve is crucial for ensuring correct application and replacement. Key specifications include its temperature setpoint (determining when it prioritizes flow to the ER unit), flow capacity, connection types and sizes for integration into the piping, pressure ratings, and construction materials suitable for the operating environment. Subsequently, matching these specifications is vital for seamless integration and optimal performance within the energy recovery system.
Table 1: Technical Specifications of Thermostatic Valve 1622799081
| Parameter | Typical Specification | Unit |
|---|---|---|
| Part Number | 1622799081 | – |
| Valve Type | Thermostatic Diverting Valve | – |
| Application | Energy Recovery Systems | – |
| Temperature Setting | Specific (e.g., 70, 85) | °C |
| Connection Size | Specific (e.g., DN50, 2″) | – |
| Connection Type | Flanged / Threaded | – |
| Max Pressure | Specific (e.g., 16, 25) | bar |
| Body Material | Cast Iron / Bronze / Steel | – |
| Flow Capacity (Cv) | Specific to application | – |
Note: Exact specifications, especially Temperature Setting and Connection Size/Type, are critical and must match the specific Atlas Copco Energy Recovery unit and compressor model.
Compatibility Guide: Matching the 1622799081 Valve with Atlas Copco Models
The 1622799081 thermostatic valve is not a universal part. Crucially, it is designed specifically for Atlas Copco air compressors that are factory-equipped, or retrofitted, with compatible Atlas Copco Energy Recovery (ER) units. Its integration depends on the specific plumbing and control strategy of the ER system. Therefore, verifying compatibility using the official parts list for both the compressor and the installed energy recovery unit is absolutely essential before ordering a replacement.
Table 2: Compatible Atlas Copco Air Compressor Models/Series (Using Valve 1622799081)
| Compressor Series | Example Compatible Models |
|---|---|
| GA Series (Larger) | Models with integrated ER options (e.g., GA 90+) |
| GA VSD / VSD+ Series | Models with integrated ER options |
| ZT/ZR Series (Oil-Free) | Models with integrated ER options |
| Other Large Ranges | Specific models factory-fitted with ER units |
Ensuring Effective Energy Recovery: Maintenance and Valve Condition
To continuously benefit from maximum heat recovery, maintaining the condition of the 1622799081 valve is important. Like any mechanical component, it can experience wear or malfunction over time. For instance, issues like sticking internals, contamination buildup, or failure of the thermostatic element can prevent the valve from directing flow correctly. This could lead to significantly reduced heat capture efficiency. Therefore, periodic checks as part of the compressor’s overall maintenance schedule can help identify potential issues early. Addressing valve problems promptly ensures the energy recovery system continues to deliver expected savings.
Frequently Asked Questions (FAQs)
Here are some common questions specifically about the 1622799081 Energy Recovery Thermostatic Valve:
-
How is the 1622799081 valve different from a standard compressor thermostatic valve?
- While both regulate flow based on temperature, the 1622799081 specifically prioritizes directing hot fluid (oil/coolant) to the energy recovery unit’s heat exchanger when sufficient heat is available, rather than just managing the primary cooling circuit.
-
What is the primary goal of the 1622799081 valve within the energy recovery system?
- Its main goal is to maximize the transfer of usable waste heat from the compressor to the energy recovery unit by controlling the flow path of the hot medium based on its temperature.
-
What issues can arise if the 1622799081 valve malfunctions?
- Malfunctions (like sticking open or closed, or incorrect sensing) can lead to significantly reduced heat recovery efficiency, meaning less energy savings. It could also potentially affect the compressor’s main cooling circuit performance.
-
Can this 1622799081 valve be installed on any Atlas Copco compressor?
- No. It is specifically designed as an integral part of Atlas Copco compressors equipped with compatible Energy Recovery (ER) systems. It cannot be added standalone to a standard compressor.
-
Which Atlas Copco compressors might use the 1622799081 valve?
- It is typically used in larger Atlas Copco screw compressors (like GA, ZT/ZR series) that have been configured and installed with specific Atlas Copco Energy Recovery units. Always verify compatibility using your equipment’s parts list.
Conclusion: Unlocking Savings with the 1622799081 Valve
In conclusion, the Atlas Copco 1622799081 Energy Recovery Thermostatic Valve is a key enabler for unlocking significant energy savings. It intelligently manages heat flow to maximize the potential of integrated heat recovery systems. Furthermore, ensuring this valve is correctly specified, installed, and maintained is crucial for achieving the substantial cost reductions and environmental benefits offered by Atlas Copco’s energy recovery technology. Therefore, paying attention to this component is vital for optimizing your compressed air system’s total energy efficiency.
Maximize Your Energy Savings – Ensure Your Recovery System Performs!
Keep your Atlas Copco Energy Recovery system operating at peak efficiency with the correctly functioning 1622799081 Thermostatic Valve. Capture valuable waste heat and reduce your energy costs.
Contact us today for pricing and availability of the 1622799081 valve. Our specialists can help you find the right components for your energy recovery needs!
