Original Atlas Copco Oil Separator 1614704800=2906020200

Achieving clean, oil-free compressed air stands as a critical requirement for virtually all industrial applications. In oil-flooded screw air compressors, the oil separator plays an absolutely indispensable role in achieving this purity. It diligently removes oil mist from the compressed air stream before the air exits the compressor, ensuring optimal air quality, minimizing oil carryover, and protecting sensitive downstream equipment. Among these vital components, the Genuine Atlas Copco Oil Separator, identified by part numbers 1614704800 and its equivalent 2906020200, offers unparalleled separation efficiency. This specialized separator ensures your compressed air meets the highest quality standards while maximizing system efficiency.

When your compressor’s oil separation element requires replacement due to wear, age, or diminished performance, installing a genuine unit is not merely a recommendation; it is an absolute necessity for protecting your investment and ensuring uninterrupted, high-quality compressed air production. For businesses requiring this authentic, high-performance separation component, Seadweer stands as a professional and trusted supplier specializing in genuine Atlas Copco compressor parts. Consequently, choosing Seadweer ensures you acquire a separator manufactured to the exact specifications and uncompromising quality standards set by Atlas Copco.

Why Oil Separation is Crucial for Compressors

The oil separator acts as an unseen guardian within an oil-injected screw compressor, standing as a final, critical barrier. It effectively separates oil mist from the compressed air after the compression process but before the air leaves the compressor. This separation process remains critical for several key reasons. Firstly, superior oil separation directly impacts the quality of the compressed air. Oil particles in the air stream can contaminate products, damage pneumatic tools, and reduce the effectiveness of dryers and filters. Secondly, efficient separation minimizes oil carryover, directly reducing the consumption of expensive compressor lubricant. Lost oil must be constantly replenished, which significantly increases operating costs. Furthermore, a properly functioning oil separator contributes to the overall energy efficiency of the compressor by maintaining a low pressure drop across the element. A clogged or inefficient separator increases pressure drop, causing the compressor to work harder and consume more power. Therefore, a robust and efficient oil separator remains indispensable for the long-term health, reliability, and cost-effectiveness of your compressed air system.

Introducing the Oil Separator 1614704800 (2906020200)

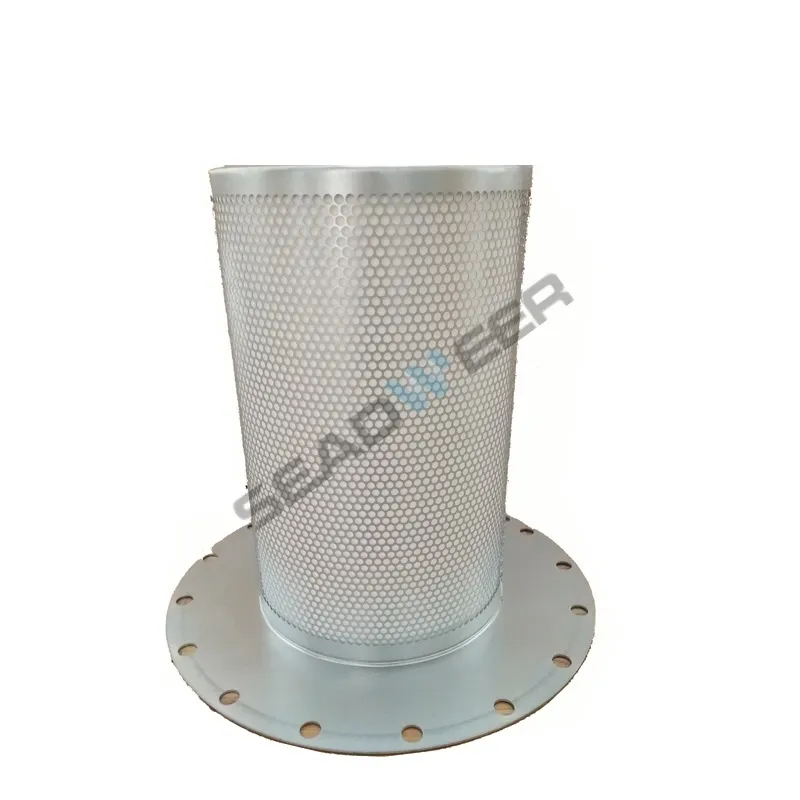

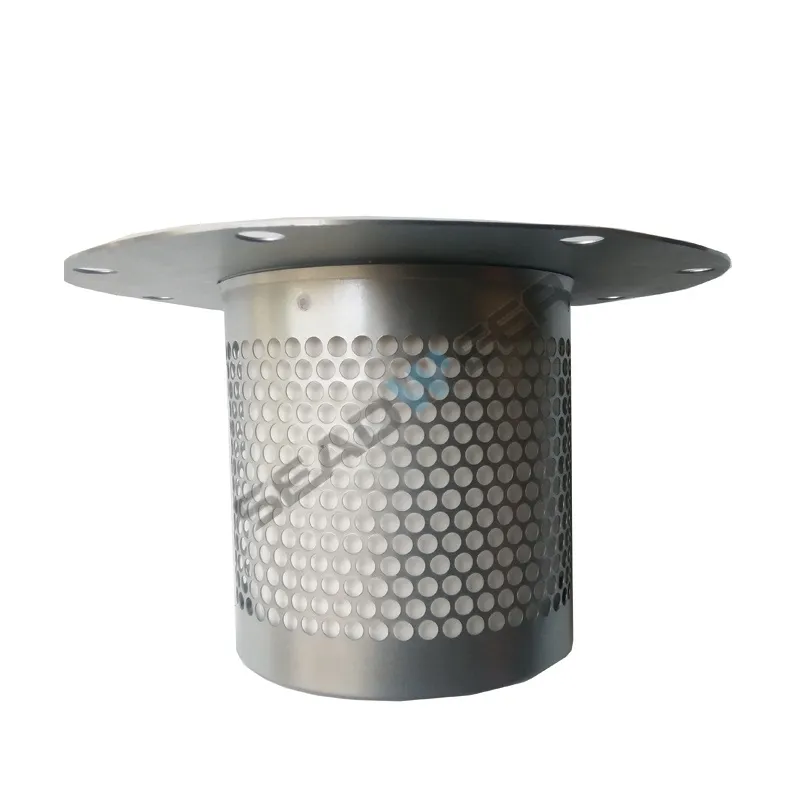

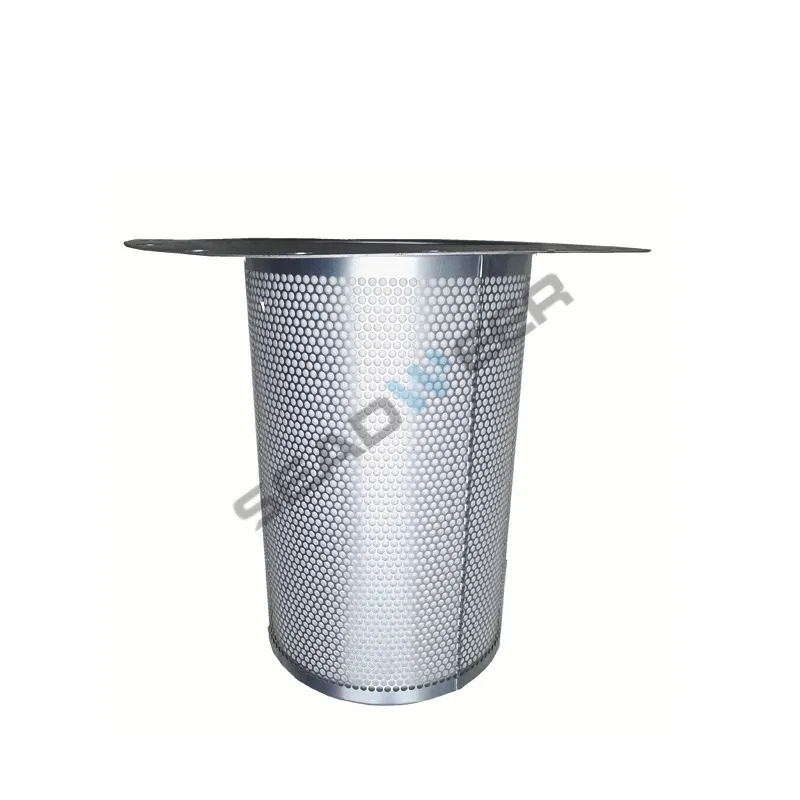

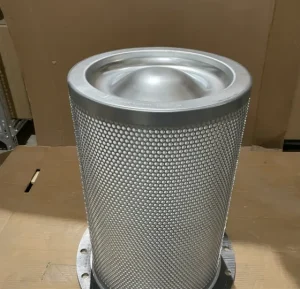

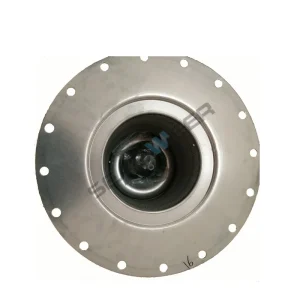

The Genuine Atlas Copco Oil Separator, identified by part numbers 1614704800 and 2906020200, is a high-efficiency filtration component meticulously designed for seamless integration into designated Atlas Copco oil-flooded screw compressors. These part numbers signify a separator engineered for precise oil mist capture and minimal residual oil content in the compressed air. Atlas Copco manufactures this oil separator with exceptional attention to detail, utilizing advanced filter media (often multi-layered fiberglass or pleated synthetic media) that provides superior coalescing capabilities. This media effectively combines microscopic oil droplets into larger ones, which then drain back into the oil sump. Furthermore, the separator’s robust construction emphasizes durability, with sturdy end caps and internal support structures that resist collapse even under varying pressure conditions. Each 1614704800 (2906020200) oil separator undergoes rigorous testing, which guarantees its separation efficiency, low pressure drop, and structural integrity. As an authentic component, this oil separator ensures your compressor delivers consistently pure compressed air while optimizing lubricant consumption.

Key Features and Benefits

Opting for the Genuine Atlas Copco Oil Separator 1614704800 (2906020200) delivers a range of significant benefits that directly impact your compressor’s long-term performance and operational costs. Firstly, its superior oil separation efficiency effectively reduces residual oil content in the compressed air to extremely low levels (often below 3 ppm). This action directly protects downstream equipment from oil contamination, preventing damage to air tools, control valves, and pneumatic cylinders. Secondly, Atlas Copco utilizes high-quality media with a high dirt-holding capacity, which allows for longer service intervals and reduces the frequency of separator changes. This saves time and maintenance costs. Furthermore, the separator’s robust construction and optimized design ensure a low initial pressure drop, which minimizes energy consumption and contributes to overall compressor efficiency. Ultimately, investing in this genuine oil separator secures your compressor’s reliability, maximizes its operational efficiency, reduces lubricant consumption, and ensures long-term cost savings by delivering consistently clean air.

Genuine Oil Separator vs. Non-Genuine Alternatives

Choosing the Genuine Atlas Copco Oil Separator 1614704800 (2906020200) over non-genuine alternatives is a critical decision that profoundly impacts your compressor’s performance, lifespan, and overall operational costs. Non-genuine separators may offer a lower initial price, but their hidden costs often outweigh any perceived savings through reduced air quality, increased oil consumption, and potential damage to expensive components.

This comparison clearly demonstrates that genuine oil separators are the result of extensive research, development, and stringent quality control processes. Non-genuine parts, conversely, often fall short in critical areas, risking excessive oil carryover, increased energy consumption, and ultimately, a higher total cost of ownership due to accelerated component degradation and unexpected downtime.

Representative Technical Specifications

The Genuine Atlas Copco Oil Separator 1614704800 (2906020200) adheres to a specific set of highly precise technical parameters that define its performance capabilities and dimensions. These specifications ensure it functions flawlessly within the compressor oil separation system and delivers the expected air quality. While the precise, detailed engineering specifications are proprietary to Atlas Copco, the table below outlines representative technical characteristics typical of a high-quality oil separator designed for industrial screw compressors. These properties directly contribute to its efficiency, pressure drop, and longevity.

Note: These parameters are representative. The precise technical specifications for Atlas Copco Oil Separator part numbers 1614704800 and 2906020200 are defined by Atlas Copco’s engineering for its specific application and may vary slightly based on production batches.

Installation Steps

Replacing an Atlas Copco Oil Separator 1614704800 (2906020200) is a critical maintenance task that directly impacts air quality and compressor performance. It requires careful attention to safety, precise execution, and thorough reassembly. Incorrect installation can lead to oil leaks, reduced air quality, or even catastrophic failure. It is absolutely imperative that this procedure be performed only by highly qualified, certified compressor technicians or authorized service personnel.

General Installation Steps (Requires Specialized Expertise & Tools):

Critical Safety Protocols:

Crucially, ensure the compressor is fully shut down, de-energized, and isolated from all power sources. Properly lock out/tagged out the electrical supply. Crucially, completely relieve all internal air pressure from the oil separator tank and the entire system before opening any connections. Allow the compressor to cool completely.

Drain Oil:

Locate the oil drain valve on the bottom of the oil separator tank. Connect a hose to the drain and direct it to an appropriate waste oil container. Slowly open the drain valve and allow all the compressor oil to drain completely.

Access Separator Housing:

Identify the oil separator housing, usually a large cylindrical tank. Remove any guards, covers, or piping that obstruct access to the separator element.

Remove Old Separator:

Carefully unbolt or unclamp the top cover of the separator tank. Gently pull out the old oil separator element. Be prepared for some residual oil inside. Inspect the removed element for signs of collapse, damage, or excessive clogging.

Clean Housing Interior:

Thoroughly clean the inside of the oil separator tank. Remove any accumulated sludge, debris, or old gasket material. Use a clean, lint-free cloth. Inspect the housing for any corrosion or damage. Ensure the scavenger line (if present) is clear and unobstructed.

Install New Separator:

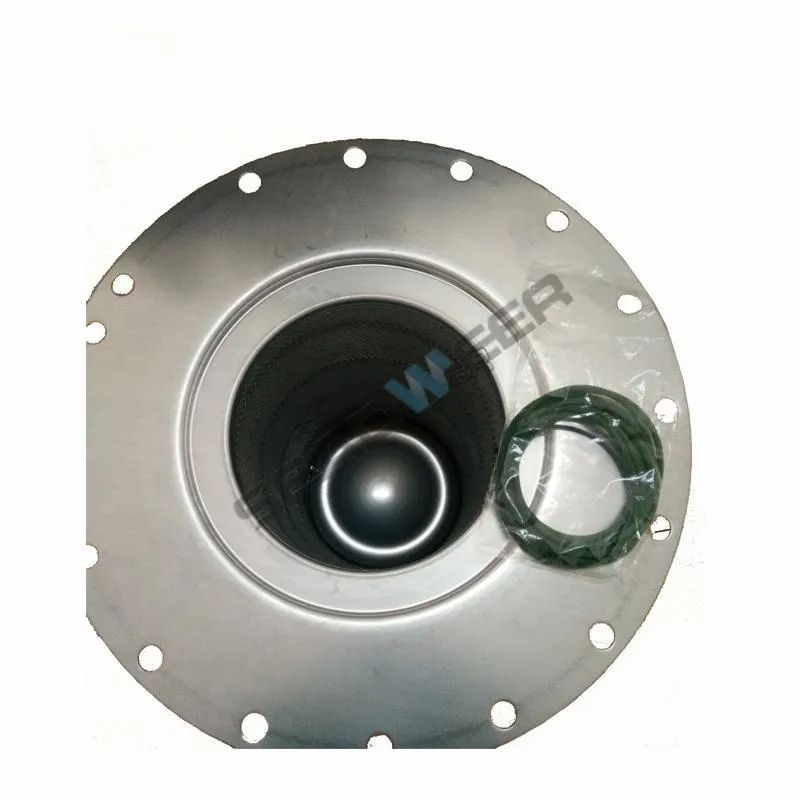

Take the new, Genuine Atlas Copco Oil Separator 1614704800 (2906020200) from its packaging. Carefully insert it into the tank, ensuring it seats perfectly and snugly. Double-check that any new sealing gaskets or O-rings are properly positioned on the element and/or the tank cover. Apply a thin film of clean compressor oil to new rubber gaskets before installation.

Close Housing:

Reinstall the separator tank cover. Secure all bolts or clamps evenly and tighten them to the manufacturer’s specified torque values, following a crisscross pattern to ensure an even seal.

Refill Oil and Pre-Checks:

Refill the compressor with the correct type and quantity of genuine Atlas Copco compressor oil. Refer to the manual for oil capacity and specifications. Perform a thorough visual inspection for any loose connections or tools left inside.

Leak Testing and Commissioning:

Restore power to the compressor. Perform a controlled initial startup. Immediately check all connections around the oil separator for any signs of oil or air leaks. Monitor differential pressure across the separator and residual oil content (if measurement equipment is available) closely during operation. Address any leaks or abnormal readings immediately.

Disclaimer: Replacement of an Atlas Copco compressor oil separator is a complex procedure requiring specialized tools, precise execution, factory-level expertise, and extensive technical training. It must only be performed by certified and authorized Atlas Copco service technicians following all manufacturer guidelines and safety regulations. Attempting this without proper training can result in severe injury, catastrophic equipment damage, and voided warranties.

Frequently Asked Questions (FAQs)

Q1: What is the primary function of Atlas Copco Oil Separator 1614704800? A1: This oil separator removes oil mist from the compressed air before it exits the compressor, ensuring clean compressed air delivery, reducing oil carryover, and minimizing lubricant consumption.

Q2: Why is it crucial to use a genuine 1614704800 (2906020200) Oil Separator? A2: A genuine separator guarantees optimal oil separation efficiency (e.g., < 3 ppm residual oil), low pressure drop, a perfect seal, and long service life, protecting your compressor and downstream equipment.

Q3: How often should I replace the oil separator in my compressor? A3: The replacement interval for your oil separator depends on the compressor model, operating hours, and operating conditions. Always consult your Atlas Copco compressor’s operator manual for the recommended schedule.

Q4: What are the risks of using a non-genuine oil separator? A4: Non-genuine separators may have lower separation efficiency, leading to excessive oil carryover, contaminating tools and products. They might also feature inferior media prone to collapse, increasing pressure drop and potentially causing system damage.

Q5: Are the part numbers 1614704800 and 2906020200 interchangeable? A5: Yes, these two part numbers generally refer to the same genuine Atlas Copco oil separator. Atlas Copco sometimes updates part numbers, but they remain functionally identical for compatible models.

Conclusion

The Genuine Atlas Copco Oil Separator 1614704800 (2906020200) is an indispensable element for ensuring the long-term health, efficiency, and reliability of your Atlas Copco air compressor. Its precision engineering and superior separation media provide robust protection against oil contamination, directly contributing to extended component life, reduced operational costs, and maximized equipment uptime. By choosing this authentic separation element from a professional Atlas Copco air compressor supplier like Seadweer, you guarantee the uncompromising quality and exact fit your compressor needs. This action safeguards your investment and secures the uninterrupted performance of your air compression system. Trusting genuine consumables for the very heart of your machine ultimately translates to superior operational value and peace of mind.
