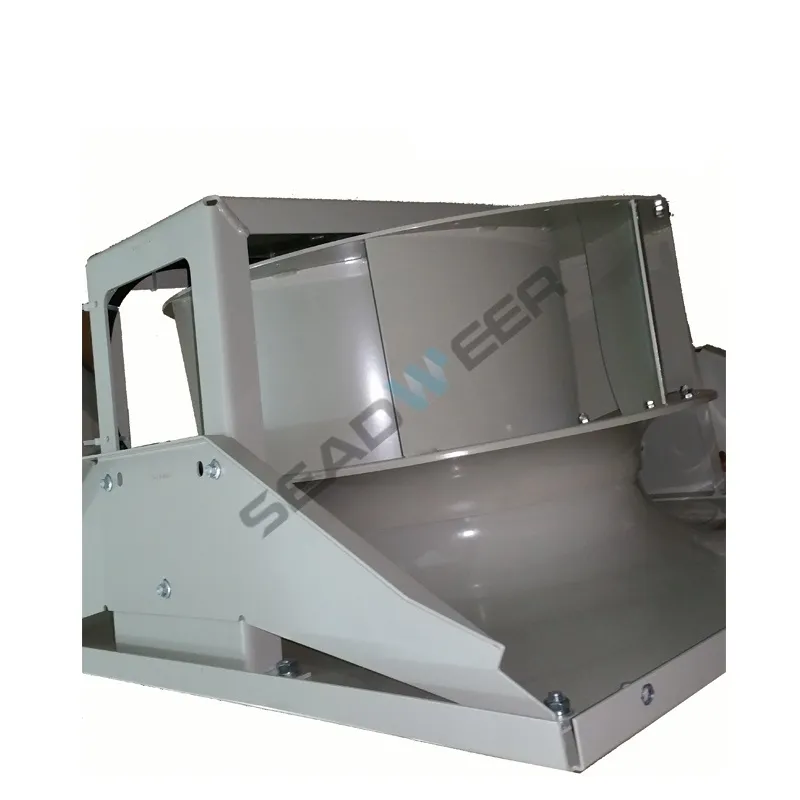

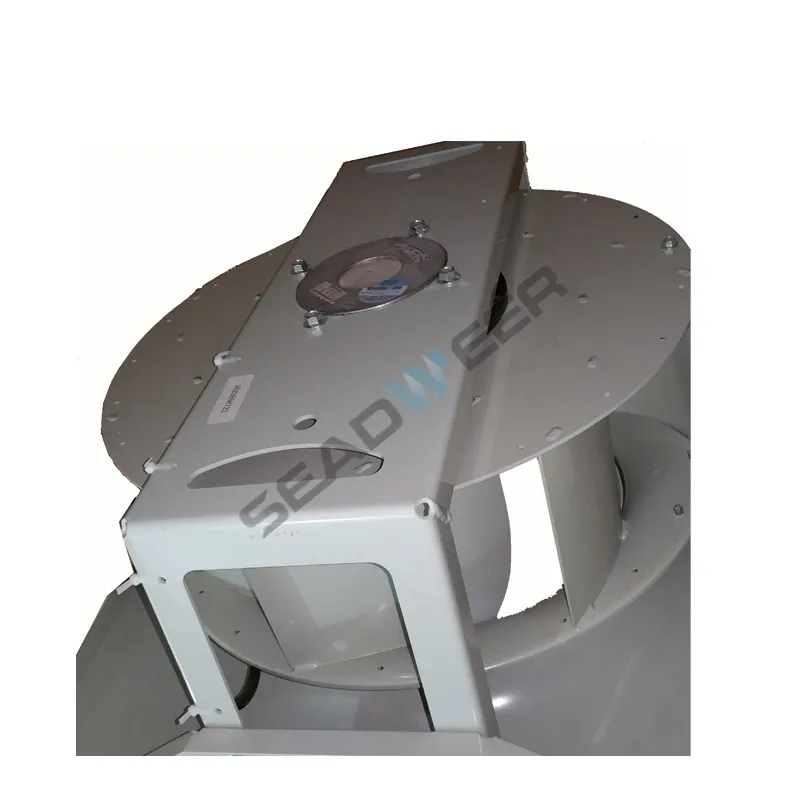

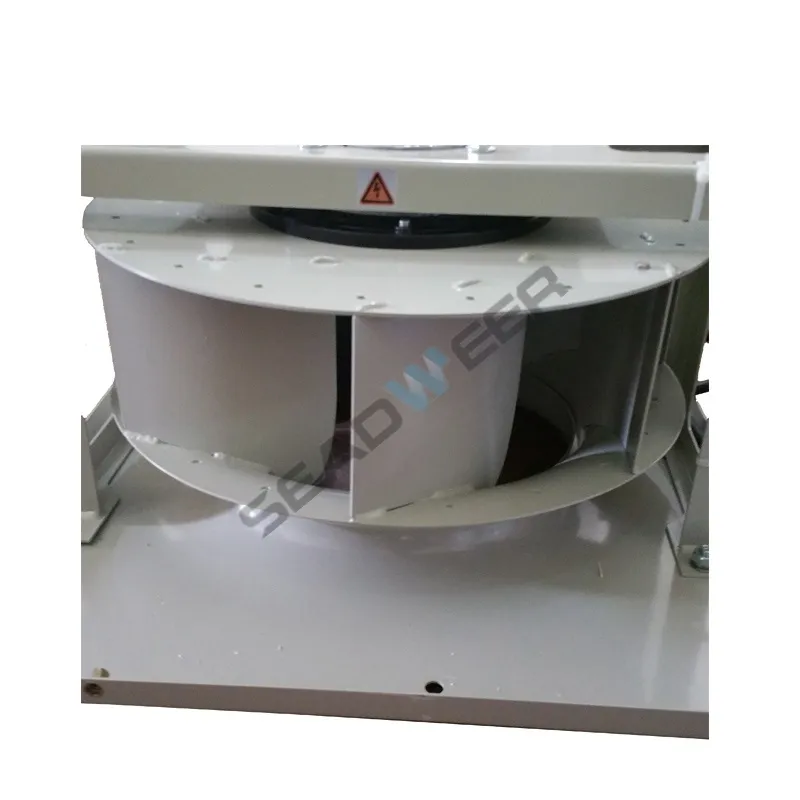

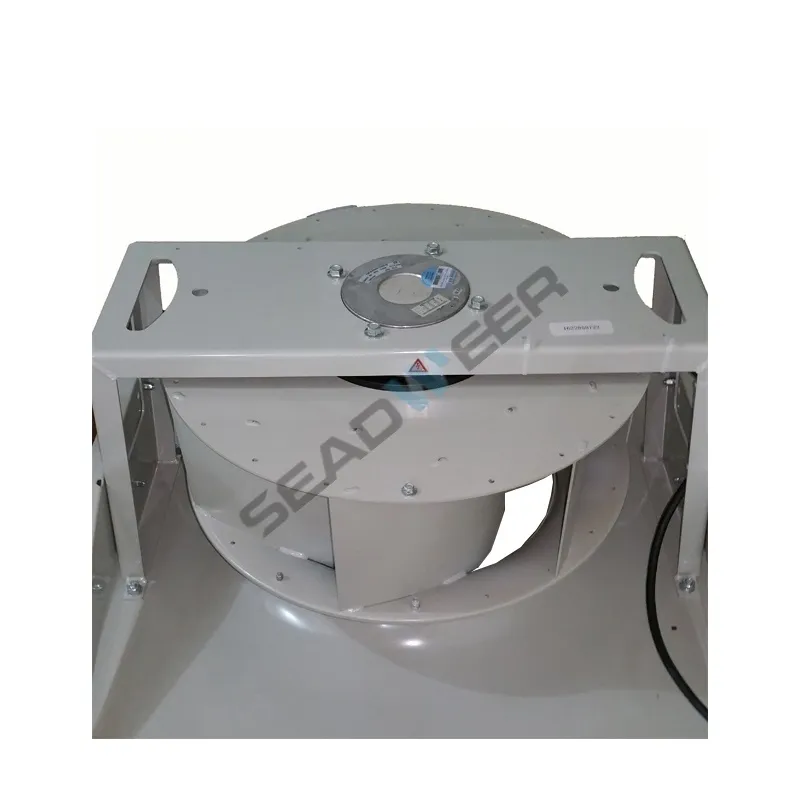

1613878802 Fan Assembly for Atlas Copco Air Compressors

Effective cooling systems ensure optimal performance in industrial air compressors. The 1613878802 Fan Assembly serves as a critical component that maintains proper operating temperatures across Atlas Copco compressor systems. Seadweer, a professional Atlas Copco supplier, provides this authentic fan assembly to support reliable industrial cooling requirements.

Understanding the 1613878802 Fan Assembly

Fan assemblies control thermal management within air compressor systems by circulating air across heat-generating components. Specifically, this assembly removes excess heat from compressor elements, oil cooler, and aftercoolers during operation. Moreover, proper cooling prevents component damage and extends equipment service life significantly.

The Atlas Copco 1613878802 model incorporates precision-balanced fan blades with high-efficiency motor technology. Additionally, engineers designed this assembly to deliver consistent airflow while minimizing noise levels and energy consumption. Consequently, users experience reliable cooling performance across various operating conditions.

Key Product Advantages

The 1613878802 Fan Assembly offers numerous benefits for Atlas Copco air compressor systems:

• High-efficiency cooling with optimized blade design for maximum airflow generation
• Precision balancing that eliminates vibration and reduces noise during operation
• Durable construction using corrosion-resistant materials for extended service life
• Energy-efficient motor that reduces power consumption while maintaining performance
• Quick installation with standard mounting configurations and clear assembly procedures
• Weather resistance through protective coatings suitable for outdoor installations
• Low maintenance design requiring minimal service intervention throughout operation
• Temperature monitoring compatibility with integrated sensor systems

Product Comparison: Genuine vs. Alternative

Compatible Air Compressor Models and Series

Technical Specifications

Installation Steps

Installing the 1613878802 Fan Assembly requires systematic procedures to ensure proper cooling performance. Furthermore, following manufacturer guidelines prevents installation errors that could compromise system efficiency.

Step 1: Safety Preparation
First, shut down the air compressor completely and disconnect all electrical power sources. Then, allow the system to cool to ambient temperature before beginning installation procedures.

Step 2: Access Preparation
Remove protective covers and access panels to reach the fan assembly mounting location. Additionally, ensure adequate workspace for safe component handling and tool access.

Step 3: Old Assembly Removal
Disconnect electrical connections and carefully remove mounting bolts securing the existing fan assembly. Subsequently, lift the old assembly from its mounting position using appropriate lifting equipment.

Step 4: Mounting Surface Inspection
Clean the mounting surface thoroughly and inspect for damage or wear that might affect new assembly installation. Moreover, verify that mounting bolt holes align properly with the new assembly.

Step 5: New Assembly Installation
Position the new fan assembly carefully and secure using proper torque specifications for mounting bolts. Additionally, ensure correct orientation for optimal airflow direction through cooling components.

Step 6: Electrical Connection
Connect electrical wiring according to the provided wiring diagram and verify proper voltage ratings. Furthermore, check all connections for tightness and proper insulation to prevent electrical issues.

Step 7: System Testing
Restore power and conduct initial testing to verify proper fan operation and airflow direction. Finally, monitor system temperatures during initial operation to confirm adequate cooling performance.

Frequently Asked Questions

Q1: How often should the fan assembly be replaced?
Typically, the 1613878802 Fan Assembly requires replacement every 8-10 years under normal operating conditions. However, dusty environments or continuous operation may necessitate earlier replacement based on performance monitoring.

Q2: What are the signs of fan assembly failure?
Common indicators include increased operating temperatures, unusual noise or vibration, reduced airflow, and visible damage to fan blade. Additionally, motor overheating or electrical issues may signal impending failure.

Q3: Can this assembly operate in outdoor installations?
Yes, the IP55 protection rating allows outdoor operation in most weather conditions. Nevertheless, proper shelter from direct precipitation and extreme temperatures extends service life significantly.

Q4: What maintenance does this fan assembly require?
Regular maintenance includes cleaning fan blades, inspecting electrical connections, checking mounting bolts, and monitoring bearing condition. Furthermore, annual vibration analysis helps detect potential issues before failure occurs.

Q5: Is professional installation recommended?
While experienced technicians can install this assembly, professional installation ensures proper procedures and electrical safety. Moreover, professional installation typically maintains warranty coverage and optimal system performance.

More Fan Parts List

If you need other Atlas Copco air compressor fan parts, we provide more models in the table below or you can submit your requirements to us directly.

Conclusion

The 1613878802 Fan Assembly represents a vital investment in Atlas Copco air compressor cooling system reliability. Through its precision engineering and robust construction, this component delivers consistent cooling performance that industrial operations demand. Furthermore, Seadweer’s commitment to supplying genuine Atlas Copco components ensures customers receive authentic products with comprehensive manufacturer support.

Proper installation and maintenance of this fan assembly significantly enhances compressor efficiency while preventing thermal-related failures. Additionally, the extended warranty and technical support provide confidence for industrial users requiring dependable cooling solutions.
