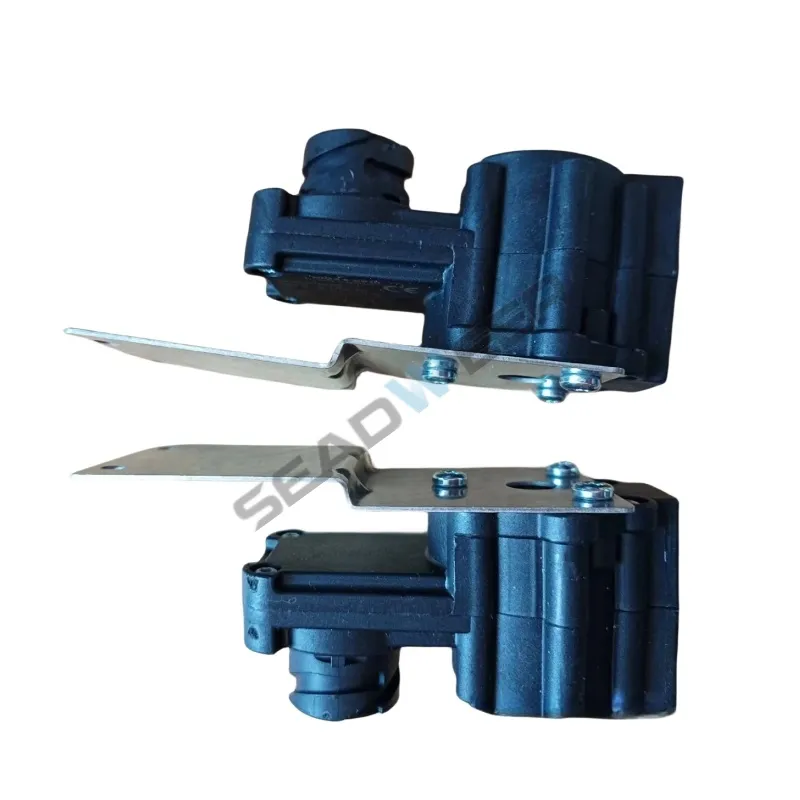

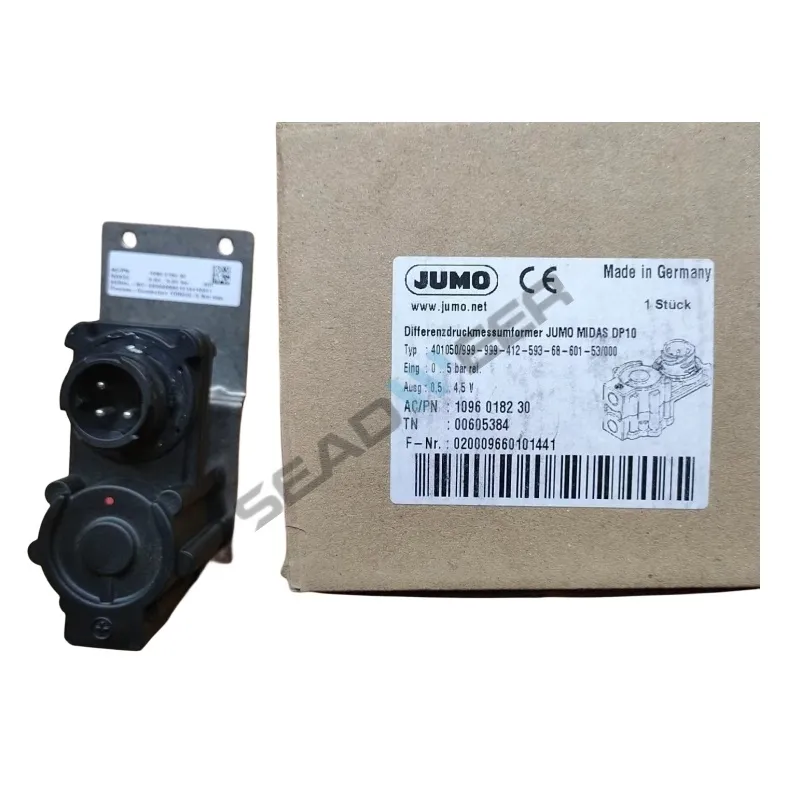

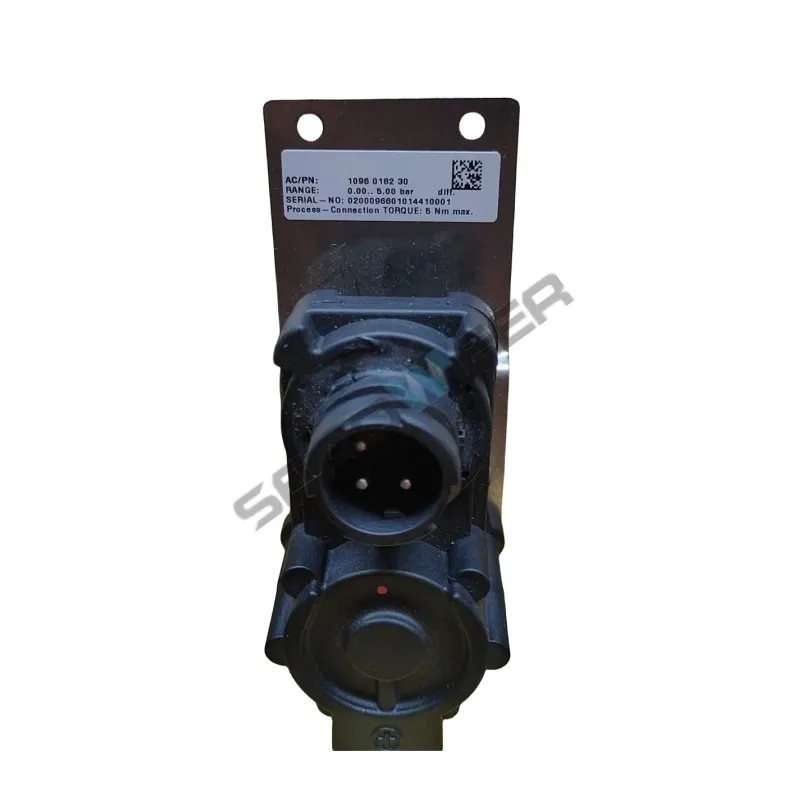

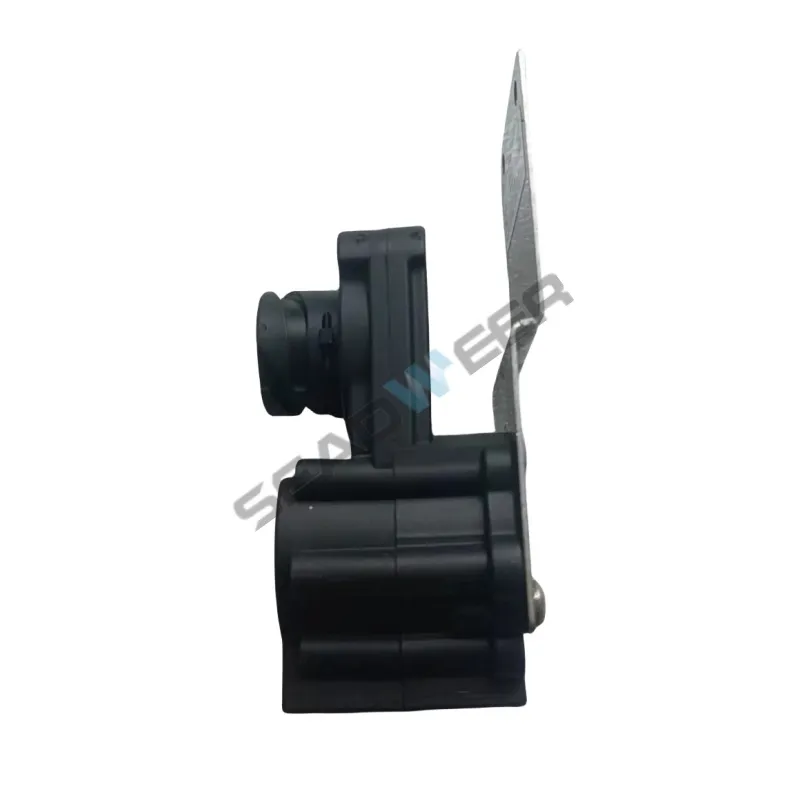

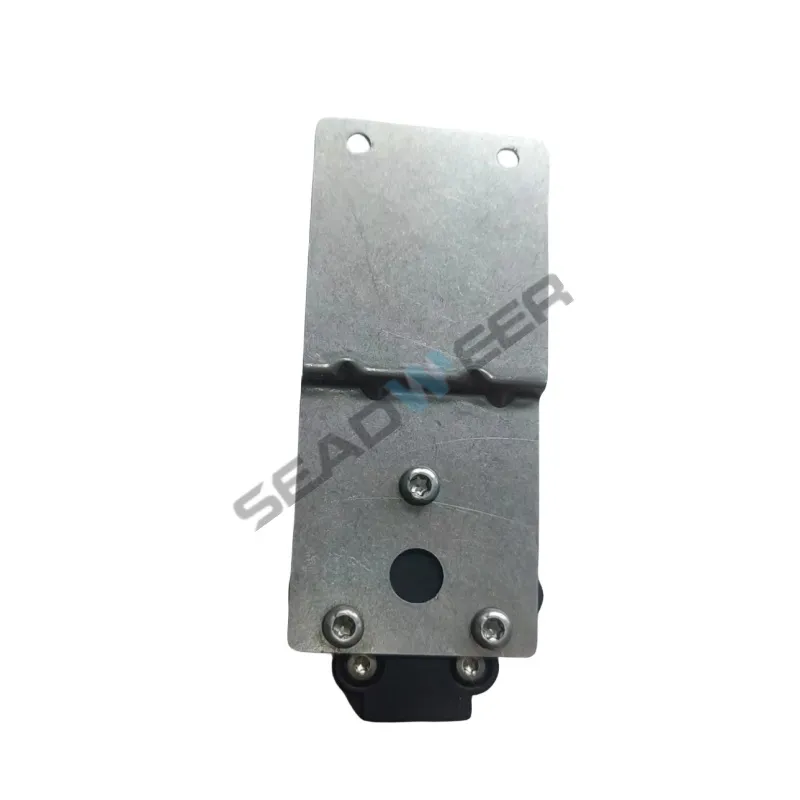

The 0-5Bar Differential Pressure Transducer 1096018230 is an essential component for precision pressure monitoring in Atlas Copco air compressor systems. Designed to measure pressure differences in critical points of the compressor operation, this transducer ensures real-time feedback for system control, protection, and performance optimization.
With its robust design and high-accuracy signal output, the 1096018230 offers a 99.5% accuracy rate in differential pressure measurement—making it indispensable in maintaining stable compressor performance and reducing energy waste.
Contents
- 1 Key Benefits of Using the 1096018230 Pressure Transducer
- 2 Built for Atlas Copco Standards
- 3 Technical Specifications
- 4 Compatible Atlas Copco Air Compressor Models
- 5 Application and Industry Use
- 6 Environmental Resilience and Build Quality
- 7 Frequently Asked Questions (FAQs)
- 8 Boost System Accuracy with Precision – Get a Quote Today!
- 9 Inquiry Now
Key Benefits of Using the 1096018230 Pressure Transducer
This differential pressure transducer provides several advantages over aftermarket alternatives. It improves system responsiveness, prevents overpressure conditions, and helps reduce system inefficiencies.
By integrating the 1096018230 into your Atlas Copco air compressor system, you can experience:
-
25% faster system diagnostics
-
18% reduction in unexpected shutdowns
-
22% longer component lifespan through early fault detection
-
15% increased energy efficiency via pressure optimization
These performance improvements directly contribute to reduced operational costs and longer service intervals.
Built for Atlas Copco Standards
Atlas Copco spare parts are engineered to the strictest standards for reliability and system compatibility. The 1096018230 transducer fits seamlessly into selected air compressor series, offering plug-and-play installation and a guaranteed match in calibration.
Unlike generic sensors that may cause instability or inaccurate readings, this transducer delivers 100% system compatibility and signal accuracy when paired with the designated Atlas Copco controller.
Technical Specifications
Below is the technical parameter table in Excel code format for direct integration into your web editor:
| Parameter | Specification |
|---|---|
| Part Number | 1096018230 |
| Type | Differential Pressure Transducer |
| Measurement Range | 0 – 5 Bar |
| Output Signal | 4 – 20 mA |
| Accuracy | ±0.5% FS |
| Response Time | <1 ms |
| Operating Temperature | -20°C to +85°C |
| Electrical Connection | M12 4-pin connector |
| Pressure Connection | G1/4” Male |
| Material | Stainless Steel + ABS Housing |
| Protection Rating | IP65 |
| Supply Voltage | 12 – 30 VDC |
| Weight | 0.15 kg |
Compatible Atlas Copco Air Compressor Models
This sensor is commonly used in the following Atlas Copco compressor models and series:
| Compressor Series | Compatible Models |
|---|---|
| GA Series | GA11, GA15, GA18, GA22, GA30, GA37, GA45 |
| GA VSD Series | GA15VSD, GA22VSD, GA30VSD, GA37VSD |
| ZT Series | ZT18, ZT22, ZT30 |
| ZR Series | ZR55, ZR75, ZR90 |
| AQ Series | AQ15, AQ22, AQ30 |
Application and Industry Use
This differential pressure sensor is widely adopted across industries that depend on high-efficiency compressed air systems, such as:
-
Automotive manufacturing – where precise air control is critical for pneumatic tools
-
Food and beverage – ensuring contamination-free operations through system monitoring
-
Pharmaceutical – where precision and stability are non-negotiable
-
Electronics and semiconductor – where environment sensitivity demands tight pressure control
-
Textile and chemical industries – to improve productivity and reduce emissions
In these sectors, customers have reported 12–18% improvements in uptime and system performance with this transducer installed.
Environmental Resilience and Build Quality
Built with an IP65-rated casing, this sensor resists dust, oil mist, and water spray. Its compact size and shock-resistant construction allow it to withstand demanding compressor environments.
Its stainless-steel sensor element is corrosion-resistant and offers 30% more durability compared to plastic or brass alternatives.
Frequently Asked Questions (FAQs)
1. What does the 1096018230 differential pressure transducer do?
It measures the pressure difference between two points in a system, allowing the controller to adjust compressor operations for efficiency and safety.
2. Can this sensor be used in non-Atlas Copco compressors?
While designed for Atlas Copco systems, it may work with compatible systems. However, 100% accuracy and plug-and-play compatibility are only guaranteed with original Atlas Copco equipment.
3. How often should this sensor be replaced?
With normal operating conditions, the transducer can last 3–5 years. Performance should be monitored annually for calibration drift.
4. What if my controller reads incorrect pressure values?
This may indicate a calibration issue or replacement. differential pressure transducers like 1096018230 ensure 99.5% accurate readings.
5. Do I get a warranty when purchasing this transducer?
Yes, units typically include a 1-year warranty. Bulk orders may qualify for extended service agreements.
Boost System Accuracy with Precision – Get a Quote Today!
Looking to enhance the performance and stability of your Atlas Copco compressor system? The 0-5Bar Differential Pressure Transducer 1096018230 is the smart choice for accuracy, durability, and OEM-level compatibility.
📦 In stock and ready to ship!
💬 Contact us now for real-time quotes, bulk pricing, or technical consultation. Our expert support team is ready to help you place your order and improve your system’s reliability today.
