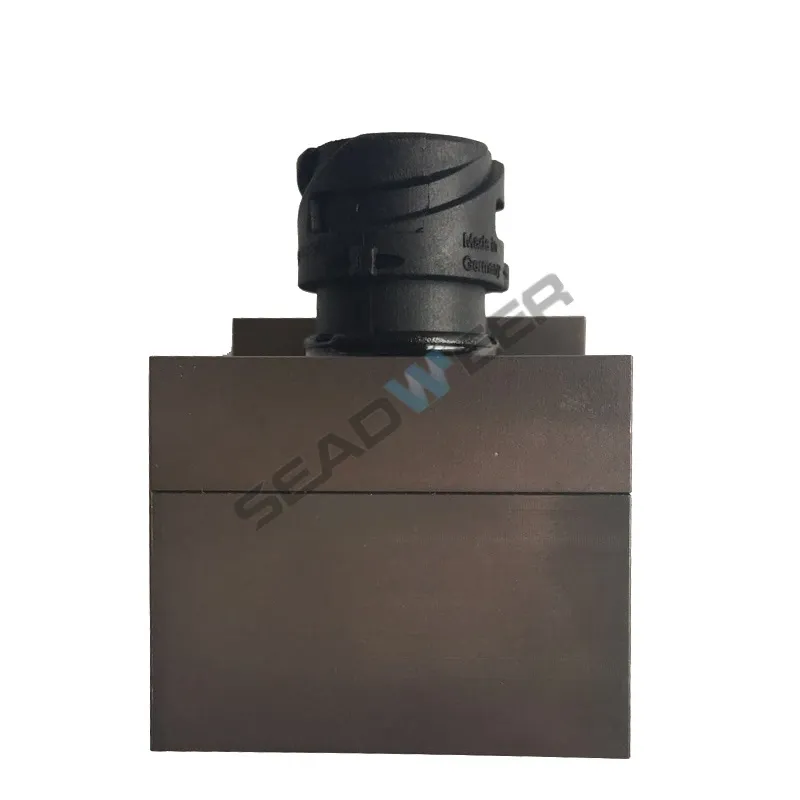

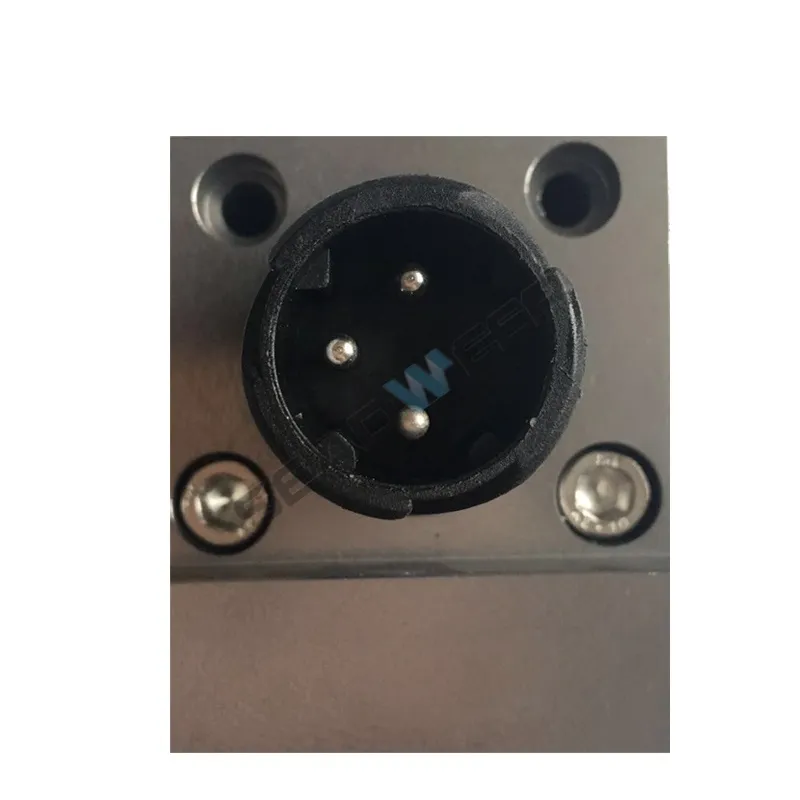

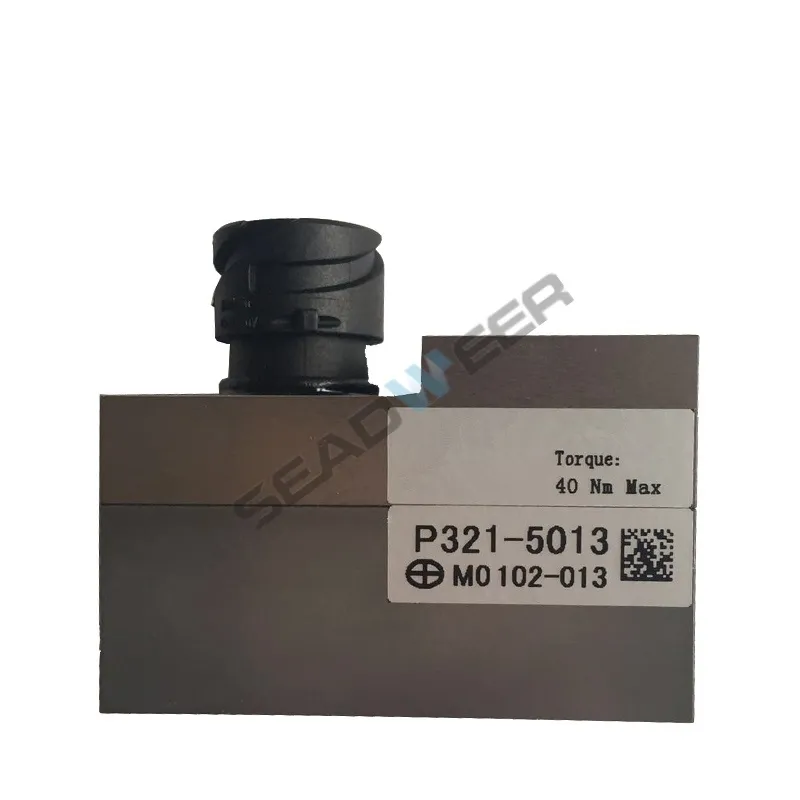

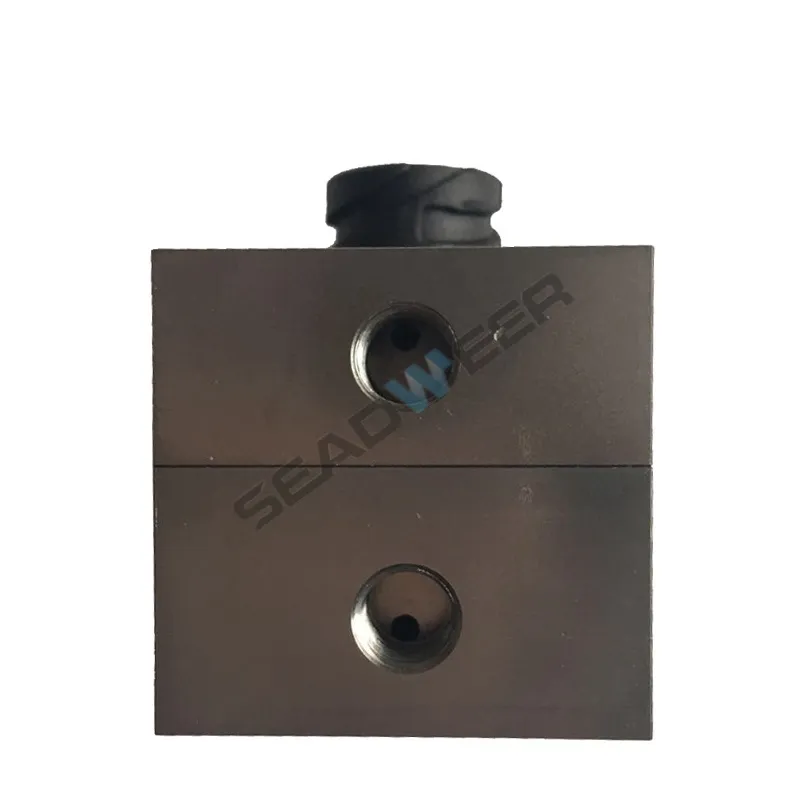

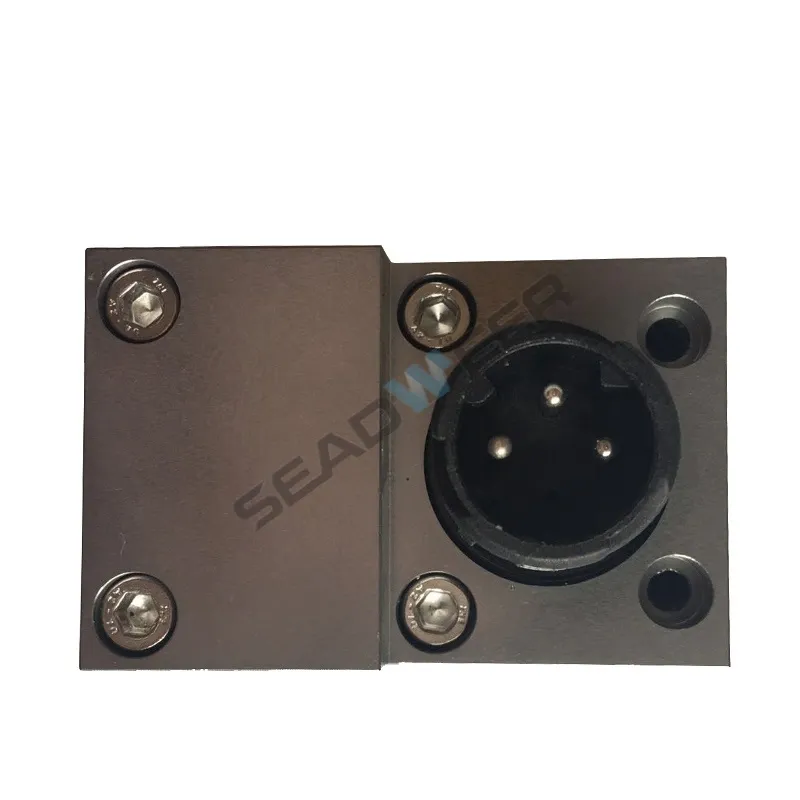

Oil Separator Pressure Sensor 1089057520 for Atlas Copco

Modern Atlas Copco air compressors are sophisticated systems relying on a network of components and controls working in harmony. Sensors play an increasingly critical role in monitoring operational parameters, ensuring efficiency, and enabling predictive maintenance. Among these crucial devices is the 1089057520 Oil Separator Pressure Sensor. This component is specifically designed to monitor the pressure difference across the air/oil separator element, a vital function for maintaining optimal performance, air quality, and energy efficiency in Atlas Copco screw compressors. This article delves into the importance, features, specifications, compatibility, and sourcing of the 1089057520 sensor.

The Critical Role of the Oil Separator Pressure Sensor

In oil-injected screw compressors, the air/oil separator element removes oil particles from the compressed air stream before the air exits the machine. Over time, this separator element becomes loaded with contaminants and its resistance to airflow increases. The 1089057520 sensor typically functions as a separator pressure sensor, measuring the pressure drop across this separator element. This measurement is critical because an increasing pressure drop indicates the separator is becoming clogged. Excessive pressure drop leads to wasted energy, reduced compressor output, potential oil carryover into the air system, and can eventually cause the separator element to collapse or fail if not addressed. The sensor provides real-time data to the compressor’s control system, alerting operators or triggering service warnings when the pressure drop exceeds acceptable limits, prompting timely maintenance.

Introducing the 1089057520 Pressure Sensor: Precision Monitoring for Atlas Copco Systems

The 1089057520 is an electronic pressure sensor engineered specifically for integration into Atlas Copco’s compressor control systems (like the Elektronikon®). Its primary function is to accurately measure and transmit the separator pressure data across the oil separator. This allows the control system to continuously monitor the separator’s condition. By providing precise, reliable data, the 1089057520 sensor enables the compressor to operate efficiently and flags the need for separator replacement before significant performance degradation or potential damage occurs. It acts as a key diagnostic tool, essential for proactive maintenance strategies in demanding industrial environments where Atlas Copco compressors often operate.

Key Features and Performance Benefits of the 1089057520 Sensor

Utilizing a genuine or high-quality equivalent 1089057520 sensor offers significant operational advantages. These sensors are designed for high accuracy, typically providing pressure readings within a tight tolerance band, often better than +/- 1% of the full scale, ensuring reliable monitoring. This accuracy allows for early detection of separator clogging, potentially identifying the need for maintenance 30% sooner than relying solely on fixed service intervals or visual checks, thus preventing extended periods of inefficient operation. By enabling timely separator changes based on actual condition, the sensor helps maintain an optimal pressure drop, contributing to potential energy savings of up to 3% related to the separator’s performance. Furthermore, these sensors are built for the harsh conditions within a compressor, offering high reliability and potentially reducing sensor-related failures by 25% compared to lower-specification or non-genuine alternatives.

Understanding the Technical Specifications

To ensure proper function and replacement, understanding the technical specifications of the 1089057520 sensor is essential. These details define its operational range, output, physical connections, and environmental resilience. Key parameters include the pressure measurement range (often differential), the type of electrical output signal compatible with the Atlas Copco controller, the electrical connector type, the process (pressure) connection thread, accuracy rating, operating temperature limits, and its Ingress Protection (IP) rating against dust and moisture.

Table 1: Technical Specifications of 1089057520 Pressure Sensor

Note: Specifications can vary based on the specific revision or manufacturer (if aftermarket). Always confirm the required specifications for your compressor model.

Compatibility: Atlas Copco Compressors Utilizing the 1089057520 Sensor

The 1089057520 pressure sensor is used across a range of Atlas Copco oil-injected screw compressors, often those equipped with more advanced Elektronikon® controllers that actively monitor separator performance. Compatibility depends not just on the compressor series but often on the specific model, year of manufacture, and controller version. It’s crucial to verify the part number using the official parts list or manual for your specific machine’s serial number. Incorrect sensor types or ranges can lead to communication errors with the controller or inaccurate readings.

Table 2: Compatible Atlas Copco Air Compressor Models/Series (Using 1089057520 – Indicative List)

Disclaimer: This list is illustrative. Atlas Copco uses various sensors across its vast product range. Absolute confirmation requires checking the parts documentation for your specific compressor serial number.

Importance of Accurate Sensor Readings for Maintenance and Efficiency

The data provided by the 1089057520 sensor is fundamental to efficient compressor management. Accurate readings allow the control system to trigger maintenance alerts precisely when needed, shifting from reactive or purely time-based maintenance to condition-based maintenance for the oil separator. This prevents the excessive energy consumption caused by running with a clogged separator and avoids the risk of sudden separator failure, which can lead to costly oil contamination of the compressed air network and downstream equipment. Conversely, a faulty or inaccurate sensor might fail to provide warnings, leading to unexpected breakdowns, or it might give false alarms, causing unnecessary downtime and replacement costs. Reliable sensor performance is key to optimizing maintenance schedules, ensuring air quality, and maximizing energy efficiency.

FAQs about the 1089057520 Pressure Sensor

Here are answers to common questions about this sensor:

1. What specifically does the 1089057520 sensor measure?

   • It primarily measures the separator pressure (pressure drop) between the inlet and outlet of the air/oil separator element in an Atlas Copco compressor.

2. Why is measuring the oil separator pressure drop important?

   • It directly indicates how clogged the separator element is. A high pressure drop means the separator needs replacement to maintain energy efficiency, prevent oil carryover, and avoid potential separator failure.

3. What are the symptoms of a failing 1089057520 sensor?

   • Symptoms can include inaccurate pressure readings on the controller display, false high-pressure drop alarms (leading to unnecessary shutdowns or maintenance), failure to trigger alarms when the separator is genuinely clogged, or communication errors with the controller.

4. Is the 1089057520 always a genuine Atlas Copco part?

   • 1089057520 is an Atlas Copco part number. You can purchase it as a genuine sensor from Atlas Copco channels or as an aftermarket equivalent from third-party manufacturers designed to meet the same fit and function requirements.

5. Can I use a generic pressure sensor instead of the 1089057520?

   • It’s strongly discouraged unless the generic sensor perfectly matches all critical specifications (pressure range, output signal, accuracy, connections, communication protocol) required by the Atlas Copco controller. Using an incompatible sensor can lead to system errors or unsafe operation.

Conclusion: Maintain Control with the 1089057520 Sensor

The 1089057520 Oil Separator Pressure Sensor is a small but vital component within the complex ecosystem of an Atlas Copco air compressor. Its accurate and reliable operation is key to monitoring the health of the air/oil separator, enabling condition-based maintenance, optimizing energy consumption, ensuring compressed air quality, and ultimately contributing to the overall reliability and cost-effectiveness of your compressed air system. Investing in a high-quality, correctly specified 1089057520 sensor, whether OEM or a trusted aftermarket equivalent, is crucial for maintaining control over your compressor’s performance.

Ensure Your Atlas Copco Compressor Operates at Peak Efficiency!

Don’t let a faulty sensor compromise your system. Secure reliable monitoring of your oil separator’s condition with the accurate 1089057520 pressure sensor.

Contact us today for competitive quotes on the 1089057520 sensor, available in wholesale quantities. Our team is ready to help you find the right components to keep your operations running smoothly!
