WEnsure the peak performance and longevity of your Ingersoll Rand rotary screw air compressor with the genuine 54672654 Oil Filter. Specifically engineered for the demanding environment of UP5 and UP6 series compressors ranging from 20hp to 50hp, this essential component is your first line of defense against premature wear and costly downtime.
Contents
Product Introduction

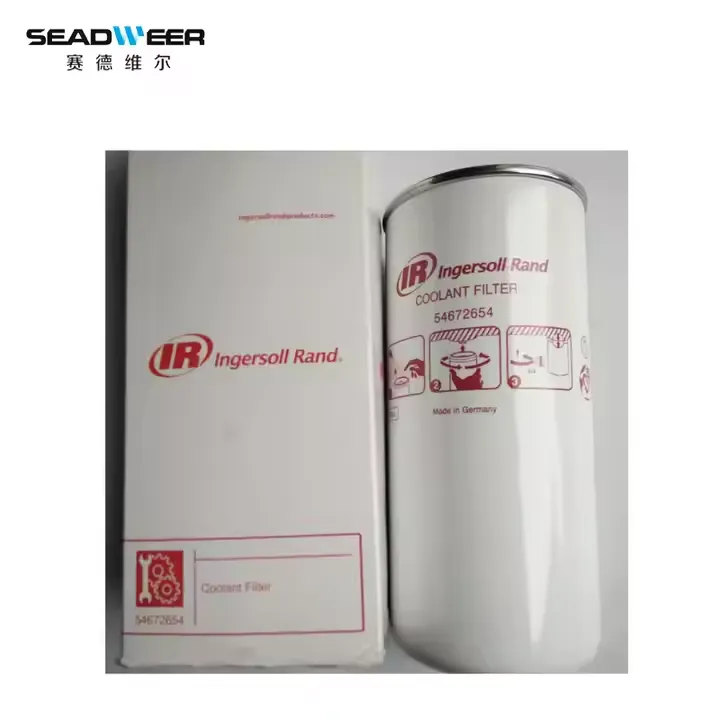

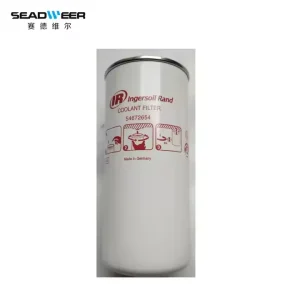

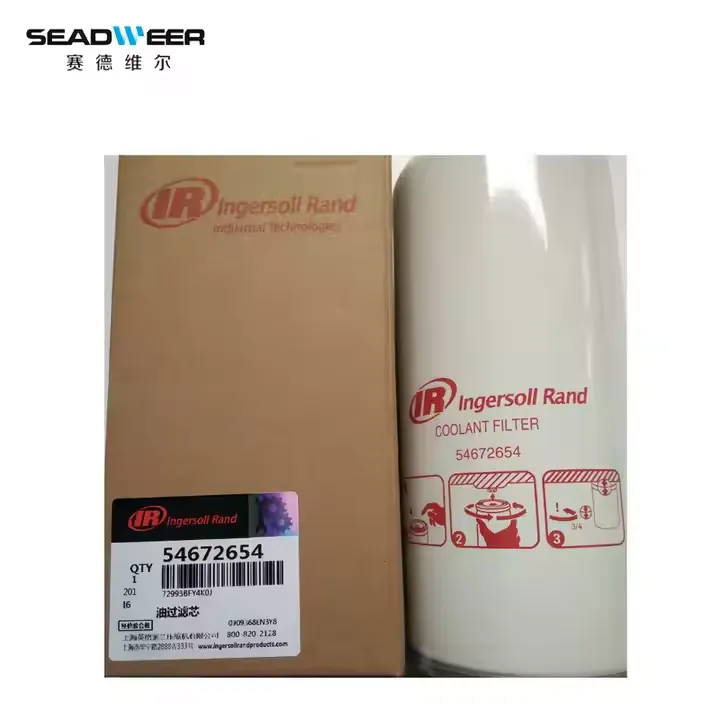

The 54672654 is a high-quality, spin-on coolant oil filter designed to meticulously remove contaminants from your compressor’s lubricant. Over its operational life, an air compressor can accumulate a variety of harmful particles, from dust and dirt drawn in from the ambient air to microscopic metal fragments generated through normal mechanical wear. If left unfiltered, these particles can circulate within the oil, scoring the rotor surfaces, damaging bearings, and compromising the tight tolerances crucial for efficient compression. This can lead to a significant drop in performance, increased energy consumption, and ultimately, catastrophic failure of the airend.
This genuine 54672654 Coolant Oil Filter is manufactured to the highest standards, ensuring a perfect fit and optimal filtration efficiency. Its robust construction can withstand the high pressures and temperatures characteristic of a rotary screw compressor’s operation. With an outer diameter of 93.9 mm (3.7 in) and a length of 209 mm (8.22 in), it provides a large surface area for capturing debris while maintaining excellent oil flow to critical components. By effectively cleaning the oil, the 54672654 filter not only protects your hardware but also helps maintain the cooling and sealing properties of the compressor oil, ensuring your machine runs smoothly and efficiently.
Why Choose Original Oil Filter?
Adhering to a regular maintenance schedule is critical for the health of your compressor. For optimal protection, it is recommended to replace the 54672654 oil filter every 2,000 operating hours or at least once a year, whichever comes first. Performing this simple service task can prevent the significant expense and operational disruption caused by a major component failure. To complete a full service, it is also highly recommended to change the air filter at the same time to ensure only clean air enters the compressor, further reducing the contaminant load on the oil.
Invest in the reliability and durability that only genuine Ingersoll Rand parts can provide. By choosing the 54672654 coolant oil filter, you are not just buying a replacement part; you are investing in the continued efficiency and long-term health of your valuable air compressor.
Product Specifications
| Parameter | Specification | Details |
| Basic Information | ||
| Part Number | 54672654 | Genuine Ingersoll Rand OEM Part |
| Filter Type | Spin-On Oil/Coolant Filter | Designed for easy installation and replacement. |
| Primary Application | Rotary Screw Air Compressors | Critical for lubricating and cooling the airend. |
| Compatibility | ||
| Brand | Ingersoll Rand | |
| Models | UP5 and UP6 Series | Specifically for models in the 20hp to 50hp range. |
| Performance | ||
| Filtration Media | Enhanced Cellulose / Glass Fiber | High-efficiency media designed to capture fine particles and debris. |
| Function | Contaminant Removal | Removes particles from compressor oil to protect bearings and rotors. |
| Bypass Valve | Yes | Ensures continuous oil flow if the filter becomes clogged. |
| Bypass Valve Pressure | 2.5 bar (~36.25 PSI) | The pressure at which the bypass valve opens. |
| Physical Dimensions | ||
| Outer Diameter | 9.39 cm | 3.7 inches |
| Overall Length / Height | 20.9 cm | 8.22 inches |
| Thread Size | 1″-12 UNF | Standardized thread for secure fitting. |
| Gasket Outer Diameter | ~71 mm – 72 mm | ~2.8 inches |
| Gasket Inner Diameter | ~62 mm – 63 mm | ~2.45 inches |
| Maintenance | ||
| Recommended Service Life | Every 2,000 Hours or Yearly | Replace whichever comes first to ensure optimal protection. |
| Associated Parts | ||
| Air Filter (20-30hp) | 89295976 | Recommended to be replaced at the same time as the oil filter. |
| Air Filter (40-50hp) | 22203095 | Recommended to be replaced at the same time as the oil filter. |
FAQs
1. Which air compressor models is the 54672654 coolant oil filter compatible with?
The 54672654 oil filter is specifically designed for use with Ingersoll Rand UP5 and UP6 series rotary screw air compressors within the 20 horsepower to 50 horsepower range.
2. What is the primary function of the 54672654 coolant oil filter?
Its main purpose is to remove harmful particles, debris, and other contaminants from the compressor’s coolant oil. This cleaning action protects the compressor’s critical internal components, such as the rotors and bearings, from damage and helps maintain optimal performance.
3. How often should I replace the 54672654 coolant oil filter?
The standard replacement interval is every 2,000 hours of operation or annually, whichever occurs first. Regular replacement is crucial to prevent oil bypass and ensure continuous protection for your compressor.
4. Are there any other parts I should change when replacing this oil filter?
Yes, it is highly recommended to replace the air filter at the same time you change the oil filter to ensure a complete service. For 20-30hp models, the corresponding air filter element is part number 89295976. For 40-50hp models, use air filter element part number 22203095.
5. What are the dimensions of the 54672654 oil filter?
The filter has an outer diameter (OD) of 93.9 mm (approximately 3.7 inches) and a length of 209 mm (approximately 8.22 inches).
Don’t Wait for a Breakdown to Act!
Every hour of operation without optimal filtration increases the risk of expensive, irreversible damage to your compressor’s airend. A single filter is a small price to pay to protect a critical asset. Keep your operations running smoothly and avoid unexpected downtime. Add the genuine Ingersoll Rand 54672654 coolant Oil Filter to your cart today and invest in the peace of mind that comes with superior protection!
Anonymous_buyer –
This 54672654 Coolant Oil Filter from Seadweer is excellent!
Installation was straightforward, and it fits my UP5 perfectly. My compressor is running smoothly, and the oil looks much cleaner. Definitely a reliable purchase for maintaining my equipment. Highly recommend Seadweer for genuine parts!
