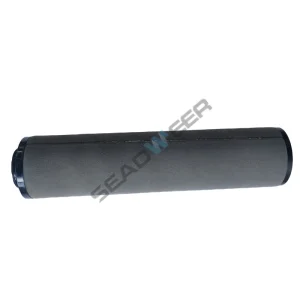

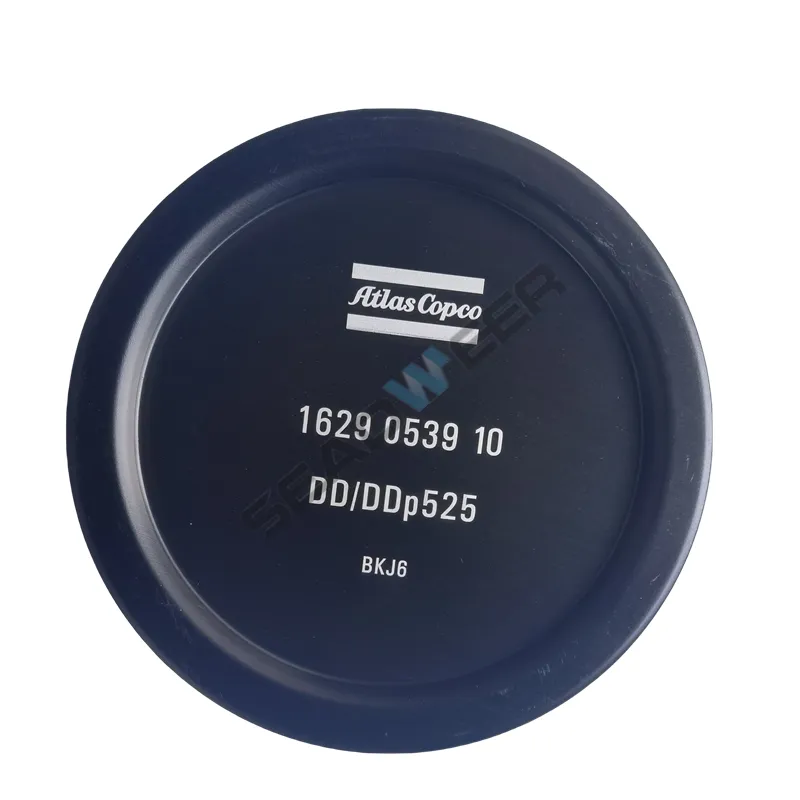

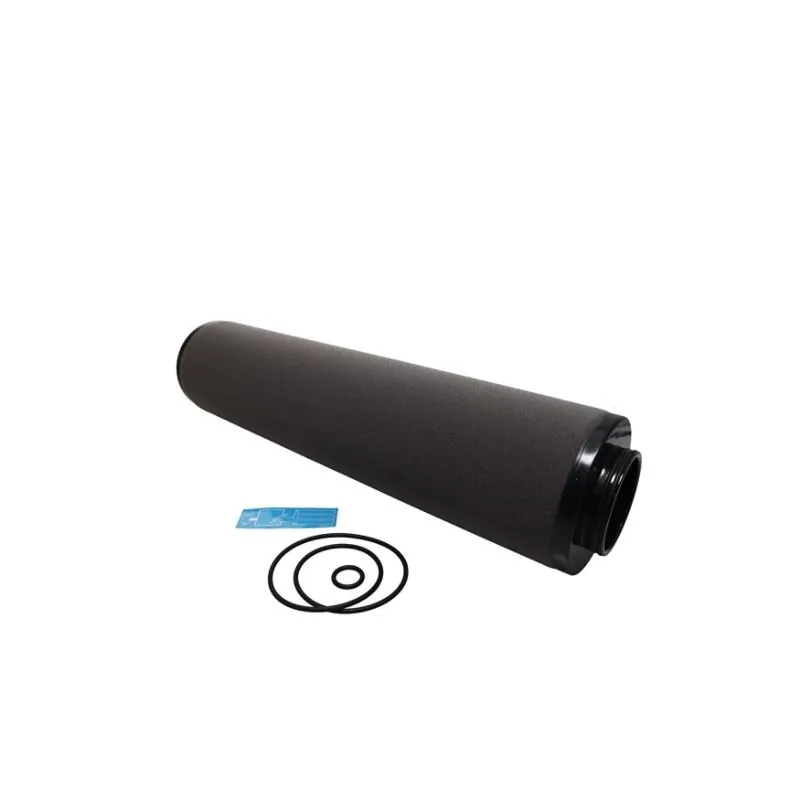

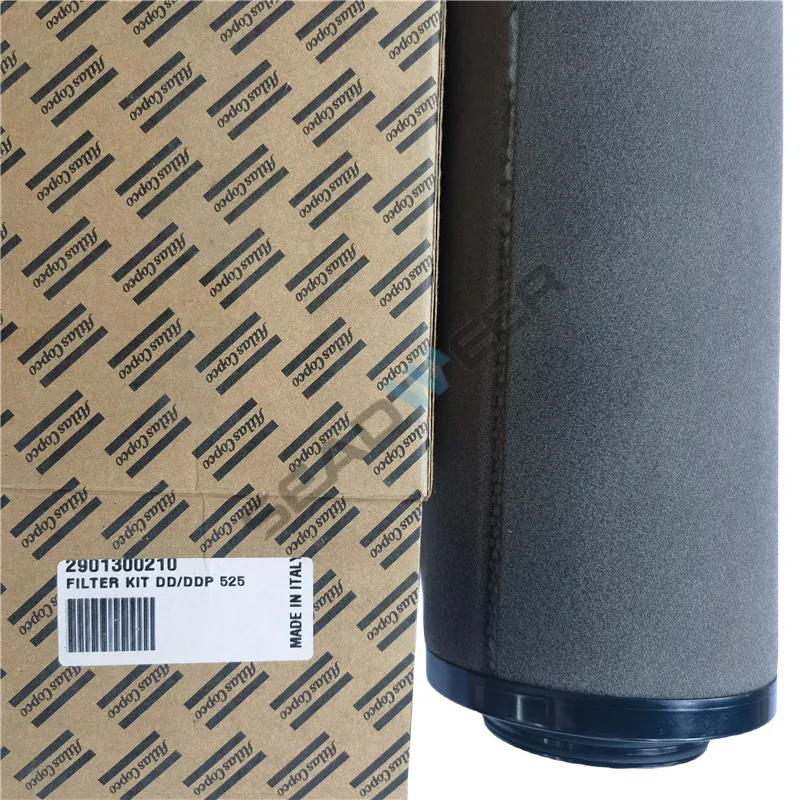

Ensure optimal air quality and maximize energy savings with the Atlas Copco 2901300210 Line Filter Kit include 1629053910 filter element for DD/DDP 525. This high-performance industrial compressor line filter is engineered for a long service life and utilizes advanced oil coalescence and dust filtration technology to deliver exceptionally clean air.
Contents
Product Introduction
Designed to minimize pressure drops, this kit directly contributes to your energy-saving goals. Its innovative double O-rings eliminate leakage of unfiltered air, guaranteeing reliability and consistent performance. Installation and maintenance are also simplified thanks to the convenient push-on filter element. Rest assured, these line filters are proudly certified by ISO 8573 and ISO 12500 for their superior quality and lifetime performance.
Product Specifications
| Specification | Value |
| Part Number | 2901300210 |
| Weight | 1105 g |
| Width | 130 mm |
| Height | 135 mm |
| Length | 540 mm |
| Additional Information | See Text (F15) – Please also order drain kit (yearly PM): for Automatic drain kit order 2901056300, or Manual drain kit order: 2901061100 |
| Country of Origin | IT |
| Customs Tariff Code | 8421999090 |
| Possibility to Return | Yes |
| SAC Code | 1 – Stocked item |
Technical Details
| Specification | Value |
| General | |
| Filtration Grade | Fine |
| Generation | 2012 |
| ISO Class | [-;-;2]/[1:-:-] |
| Validation | ISO 12500 |
| Technical Specification | |
| Max. Working Pressure | 16 bar(a) |
| MPPS | DD: 0.1 μm, DDP: 99.81% |
| Nominal Flow | 525 l/s |
| Outlet Concentration | Minimal Oil Outlet Concentration |
| Technology | Dust, Oil Coalescence |
| Visibility | Coloured Caps And Foam |
FAQs
1. How does this filter kit help with energy saving?
This filter kit is designed to minimize pressure drops within your air system, which directly reduces the energy required by your compressor to maintain desired pressure levels, leading to energy savings.
2. What does “double O-rings” mean for reliability?
The double O-rings create a superior seal, effectively eliminating any leakage of unfiltered air. This ensures that only clean, purified air passes through, protecting your downstream equipment and processes.
3. Is installation complicated?
No, the push-on filter element is specifically designed to simplify both installation and ongoing maintenance, making it quick and easy to replace.
4. What do the ISO certifications (ISO 8573 and ISO 12500) signify?
These ISO certifications confirm that the line filters meet rigorous international standards for quality and lifetime performance, assuring you of their effectiveness and durability in air treatment applications.
5. Do I need to order anything else with this kit?
Yes, for yearly preventative maintenance, you should also order a drain kit. You can choose either the Automatic drain kit (2901056300) or the Manual drain kit (2901061100).
More Line Kits List
| Part Number | Part Name | Part-Number |
| 1624660221 | LIQUID LINE FILTER | 1624-6602-21 |
| 1624660222 | LIQUID LINE FILTER | 1624-6602-22 |
| 1624660223 | LIQUID LINE FILTER | 1624-6602-23 |
| 1624660224 | LIQUID LINE FILTER | 1624-6602-24 |
| 1624660226 | LIQUID LINE FILTER | 1624-6602-26 |
| 1624660227 | LIQUID LINE FILTER | 1624-6602-27 |
| 1624660228 | LIQUID LINE FILTER | 1624-6602-28 |
| 1624660398 | LIQUID LINE FILTER | 1624-6603-98 |
| 1624660399 | LIQUID LINE FILTER | 1624-6603-99 |
| 1624660401 | LIQUID LINE FILTER | 1624-6604-01 |
| 1624660404 | LIQUID LINE FILTER | 1624-6604-04 |
| 1624660405 | SUCTION LINE FILTER | 1624-6604-05 |
| 1624660406 | SUCTION LINE FILTER | 1624-6604-06 |
| 1624660407 | SUCTION LINE FILTER | 1624-6604-07 |
| 1624660452 | SUCTION LINE FILTER | 1624-6604-52 |
| 1624842634 | PROFILE PURGE LINE SUPPORT | 1624-8426-34 |
| 1624845881 | VALVE DN50 ACROSS-LINE | 1624-8458-81 |
| 1624845901 | ACTUATOR 92.0630 ACROSS-LINE | 1624-8459-01 |
| 1625162567 | SCAVENGER LINE | 1625-1625-67 |
| 1625162568 | SCAVENGER LINE | 1625-1625-68 |
| 1625162569 | SCAVENGER LINE | 1625-1625-69 |
| 1625162570 | SCAVENGER LINE | 1625-1625-70 |
| 1625169317 | Scavenge line | 1625-1693-17 |
| 1625182687 | SCAVENGE LINE PIPE | 1625-1826-87 |
| 1625182688 | SCAVENGE LINE PIPE | 1625-1826-88 |
| 1625390127 | SCAVENGE LINE | 1625-3901-27 |
| 1625396675 | CLAMP (OIL PRESSURE LINE) | 1625-3966-75 |
| 1625396752 | CLAMP (OIL DELIVERY LINE) | 1625-3967-52 |
| 1625564300 | PIPE SCAVENGE LINE | 1625-5643-00 |
| 1625703800 | ASSEMBLY SCAVENGE LINE | 1625-7038-00 |
| 1625703900 | ASSEMBLY SCAVENGE LINE MARINE | 1625-7039-00 |
| 1625725400 | PIPE SCAVENGE LINE | 1625-7254-00 |
| 2205410701 | LINE SLOT 5025X2M | 2205-4107-01 |
| 2205410705 | LINE SLOT | 2205-4107-05 |
| 2205411901 | MULTI-LINE FLEXIBLE COUPL | 2205-4119-01 |
| 2205436902 | OUTER LINER NUT | 2205-4369-02 |
| 2205618519 | SCAVENGE LINE TH37 | 2205-6185-19 |
| 2205710560 | COMMUNICATION LINE | 2205-7105-60 |
| 2205721593 | STEEL, SKAVENGE LINE | 2205-7215-93 |
| 2205721904 | STEEL, SKAVENGE LINE | 2205-7219-04 |
| 2205722026 | STEEL, SKAVENGE LINE | 2205-7220-26 |
| 2205722133 | NIPPEL, SKAVENGE LINE | 2205-7221-33 |
| 2205827871 | KIT, SKAVENGE LINE | 2205-8278-71 |
| 2205827929 | KIT, SKAVENGE LINE | 2205-8279-29 |
| 2205831664 | SKAVENGE LINE KIT, 30-37 | 2205-8316-64 |
| 2235351401 | CYLINDER LINER | 2235-3514-01 |
| 2235351402 | CYLINDER LINER | 2235-3514-02 |
| 2235550394 | SCAVENGE LINE GAR11/30 | 2235-5503-94 |
| 2235576821 | FLEX PIPE SCAVENGE LINE | 2235-5768-21 |
| 2235576948 | SCAVENGE LINE PIPE | 2235-5769-48 |
Ready to Upgrade Your Air Quality?
Don’t let subpar air filtration compromise your equipment or inflate your energy bills! The Atlas Copco 2901300210 Line Filter Kit DD/DDP 525 offers an unparalleled combination of efficiency, reliability, and ease of use. Invest in genuine Atlas Copco quality and achieve optimal air purity while saving on operational costs.
Upgrade your air treatment system today! Order your 2901300210 Line Filter Kit DD/DDP 525 now and experience the benefits of clean, efficient compressed air!
